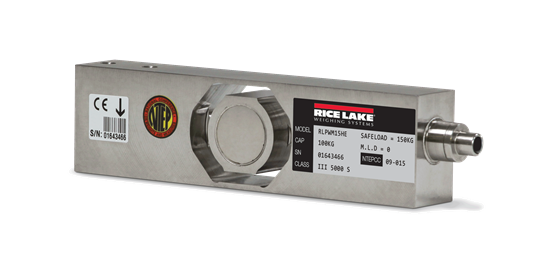

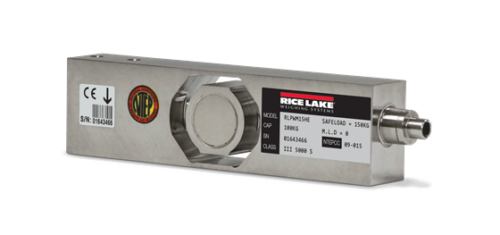

Rice Lake RLPWM15HE Stainless Steel, Single Point Load Cell

$0.00

The Rice Lake RLPWM15HE hermetically sealed, stainless steel, single point load cell is NTEP Certified and available in capacities ranging from 10 kilograms to 100 kilograms.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (? 10) ohm

Input Resistance:
380 (? 15) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Total Error:
0.02% Full scale

Insulation Resistance:
1,000 megohms

Seal Type:
Hermetically sealed, IP69K

Cable Length:
3.1 m (10 ft)
0.86 m (2.83 ft)

Cable Diameter:
0.212 PVC jacket

Cable Color Code:
Blue………………….+ Excitation
Black………………..? Excitation
Green……………….+ Sense
Grey………………….? Sense
White…………………+ Signal
Red…………………..? Signal

Warranty:
Two-year limited warranty

Approvals:
FM
NTEP

Models

108685 Load Cell,SPT RLPWM15HE 10kg 10ft 2mv/v 350 Ohm SST IP69K NTEP 5000 III S FM
108686 Load Cell,SPT RLPWM15HE 20kg 10ft 2mv/v 350 Ohm SST IP69K NTEP 5000 III S FM
108687 Load Cell,SPT RLPWM15HE 50kg 10ft 2mv/v 350 Ohm SST IP69K NTEP 5000 III S FM
108688 Load Cell,SPT RLPWM15HE 100kg 10ft 2mv/v 350 Ohm SST IP69K NTEP 5000 III S FM
