Rice Lake RLPWM16 Aluminum, Single-Point Load Cell

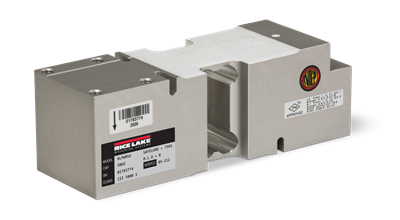

Rice Lake RLPWM16 is an aluminum, single-point load cell with a potted cavity that offers excellent performance in damp environments.

Unfortunately this product has been DISCONTINUED. For similar products click here.
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
300-500 ohm

Input Resistance:
300-500 ohm

Material/Finish:
Aluminum

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Total Error:
0.02% full scale

Insulation Resistance:
1,000 megohms

Seal Type:
Environmentally sealed, IP67

Cable Length:
3.1 m (10 ft)

Cable Diameter:
0.190/PVC jacket

Max Platform Size:
24 in x 24 in

Deflection at Capacity
50 kg to 635 kg < 0.6 mm

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
Blue …………………….+ Sense
Brown ………………….? Sense
Red ……………………..+ Signal
White ………………….? Signal

Warranty:
Two-year limited warranty

Approvals:
FM
NTEP

Models



91684 Load Cell,SPT RLPWM16 50kg 10ft 2mv/v 350 Ohm NTEP III 5S FM AL Potted
91686 Load Cell,SPT RLPWM16 75kg 10ft 2mv/v 350 Ohm NTEP III 5S FM AL Potted
91687 Load Cell,SPT RLPWM16 100kg 10ft 2mv/v 350 Ohm NTEP III 5S FM AL Potted
91688 Load Cell,SPT RLPWM16 150kg 10ft 2mv/v 350 Ohm NTEP III 5S FM AL Potted
91689 Load Cell,SPT RLPWM16 200kg 10ft 2mv/v 350 Ohm NTEP III 5S FM AL Potted
91690 Load Cell,SPT RLPWM16 250kg 10ft 2mv/v 350 Ohm NTEP III 5S FM AL Potted
91691 Load Cell,SPT RLPWM16 300kg 10ft 2mv/v 350 Ohm NTEP III 5S FM AL Potted
91692 Load Cell,SPT RLPWM16 500kg 10ft 2mv/v 350 Ohm NTEP III 5S FM AL Potted
91693 Load Cell,SPT RLPWM16 635kg 10ft 2mv/v 350 Ohm NTEP III 5S FM AL Potted
