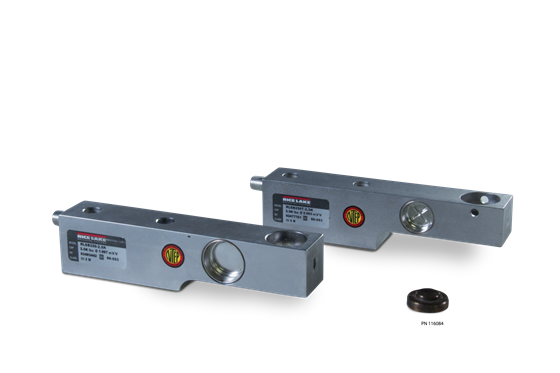

Rice Lake RLSB250 and RLSB250T Stainless Steel, Single-Ended Beam Load Cell

$0.00

The Rice Lake RLSB250 and RLSB250T Stainless Steel, Single-Ended Beam Load Cell offers welded-seal construction and is interchangeable with Cardinal SB2500.

Download product PDF

Specifications

Full Scale Output:
2.0 mV/V

Bridge Resistance:
350 ohm, nominal

Material/Finish:
Stainless steel

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0?F to 150?F/-18?C to 65?C

Safe Overload:
150% Full scale

Safe Sideload:
100% Full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.02%

Non-repeatability:
0.01% Full scale

Insulation Resistance:
5,000 megohms

Seal Type:
Welded seal, IP67

Cable Length:
20 ft (6.2 m)

Cable Diameter:
0.200 polyurethane jacket

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
White ………………….+ Signal
Red ……………………? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMus
us
OIML

Models

116053 Load Cell,SEB RLSB250T- 2.5K 2500lb 20ft 2mv/v 350 Ohm NTEP III 5M IP67 SST WS Threaded
116054 Load Cell,SEB RLSB250T- 5K 5,000lb 20ft 2mv/v 350 Ohm NTEP III 5M IP67 SST WS Threaded
