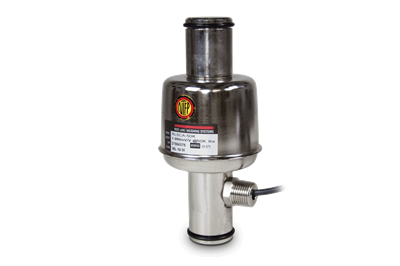

Rice Lake RLSCA-50K Stainless Steel, Rocker Column Load Cell

$0.00

The new Rice Lake RLSCA load cell is designed to be a replacement for Cardinal SCA products. It features all stainless construction and welded sealing to provide IP67 environmental protection.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2 mv/V nominal

Output Resistance:
1,050 (? 10) ohm

Input Resistance:
1,100-1,500 ohm

Material/Finish:
Stainless Steel

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
150% Full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.025% Full scale

Non-repeatability:
0.01% Full scale

Insulation Resistance:
1,000 megohms

Seal Type:
Welded seal, IP67

Cable Length:
30 ft (9 m)

Cable Diameter:
0.200 polyurethane jacket

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
Red…………………….+ Signal
White………………….? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMus
NTEP

Models

68918 Load Cell,CSR RLSCA-50K 50,000lb 30ft 2mV/V 1050 OHMS EW SST WS NTEP III L 10M (includes top and bottom cups)
