Rice Lake RLSP4 Aluminum, Single Point Load Cell

$0.00

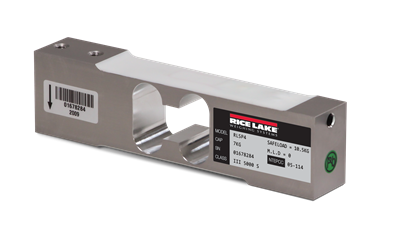

The Rice Lake RLSP4 is an aluminum, low profile, off-center load cell designed for use in retail, postal and platform scale applications.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (? 3) ohm

Input Resistance:
350 ohm

Material/Finish:
Anodized aluminum

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
150% Full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.02% Full scale

Insulation Resistance:
5,000 megohms

Deflection at Capacity:
5 kg-100 kg=0.4 mm (0.015 in)

Seal Type:
Environmentally sealed, IP66

Cable Length:
3.1 m (10 ft)

Cable Diameter:
0.19/PVC jacket

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
Blue ……………………+ Sense
Brown ………………….? Sense
Red …………………….+ Signal
White ………………….? Signal
Yellow …………………. Shield

Max Platform Size:
3 kg-10 kg (12 in x 12 in)
15 kg-30 kg (18 in x 18 in)
50 kg-100 kg (24 in x 24 in)

Warranty:
Two-year limited warranty

Approvals:
FM
NTEP

Models

91725 Load Cell,SPT RLSP4-7kg 10ft 2mv/v 350 Ohm NTEP III 5S FM AL Potted
91726 Load Cell,SPT RLSP4-10kg 10ft 2mv/v 350 Ohm NTEP III 5S FM AL Potted
91727 Load Cell,SPT RLSP4-15kg 10ft 2mv/v 350 Ohm NTEP III 5S FM AL Potted
91728 Load Cell,SPT RLSP4-20kg 10ft 2mv/v 350 Ohm NTEP III 5S FM AL Potted
91729 Load Cell,SPT RLSP4-30kg 10ft 2mv/v 350 Ohm NTEP III 5S FM AL Potted
91730 Load Cell,SPT RLSP4-50kg 10ft 2mv/v 350 Ohm NTEP III 5S FM AL Potted
91731 Load Cell,SPT RLSP4-75kg 10ft 2mv/v 350 Ohm NTEP III 5S FM AL Potted
91732 Load Cell,SPT RLSP4-100kg 10ft 2mv/v 350 Ohm NTEP III 5S FM AL Potted
