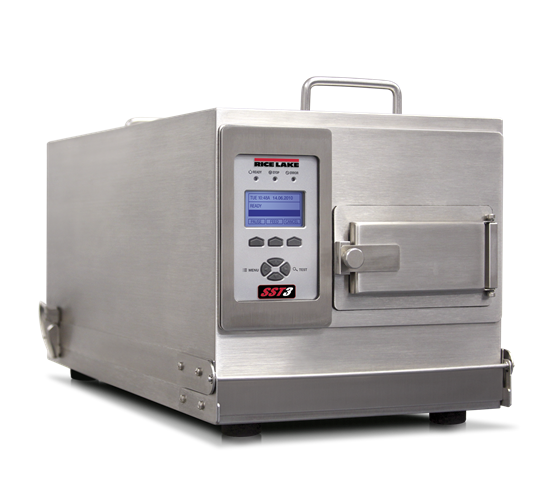

Rice Lake SURVIVOR SST3 Washdown Printer

As an IP69K rated printer, the Rice Lake SURVIVOR SST3 features a stainless steel enclosure that completely seals out moisture and dust.

Unfortunately this product has been DISCONTINUED. For similar products click here.

Specifications

Print Speed:
2 in to 10 in per second
(51 mm to 152 mm)

Supply Roll Capacity:
8 in (203 mm) O D on 1.5 in to 3.0 in
(38 mm to 76.2 mm) cores.

Bar Code Modulus:
5 mil to 55 mil ?X? dimension in picket fence or ladder orientations

Media Width:
0.75 in to 4.65 in (17 mm to 118 mm)

Media Type:
Roll fed, die-cut or continuous labels;
perforated or continuous tag/ticket stock

Print Length:
0.25 in to 99 in (6 mm to 2475 mm)

Media Thickness:
0.0025 in to 0.0100 in (0.0635 mm to 0.254 mm)

Ribbons (Optional):
Industry standard ribbon widths:
1 in (25 mm) ribbon core, 1,476 ft (450 m) in length

Bar Codes:
Code 3 of 9, UPC-A, UPC-E, Interleaved 2 of 5, code 128, EAN-8, EAN-13, HIBC, Codabar, Plessey, UPC 2 and 5-digit addendums, Code 93, Postnet, UCC/Ean Code 128, Telepen, UPS MaxiCode, FIM, PDF417, USD-8, Datamatrix, QR Code, Aztec, TLC 39, Micro PDF417, RSS

Graphics Support:
PCX, BMP and IMG files

Memory:
16 MB RAM (8 MB FLASH)
3 MB user available

Rating/Material:
IP69K/Stainless Steel 304

Interfaces:?
USB, Centronics Parallel port, RS-232 at 600 to 38,400 BPS

Power Source:?
Auto-sensing 103.5 to 126.50 or 207 to 253 VAC at 47 to 63 Hz; US or European power cord

Operating Temperature:
40? F to 95? F (4? C to 35? C)

Dimensions:
(H x W x L):27 x 14 x 13.6 in
(686.8 x 355.6 x 345.4 mm)

Approvals:
UL listed, CE marked

Processor:
Dragon ball, 150 MHz

Warranty:
One-year limited warranty
One-year or 1-million linear inches on original print head. 90 days on replacement print head

Options

Part #111121?Product Description?Kit,SST3 Printer Heater 115 VAC Includes Heater, Fuse Holder, 2 Amp Fuse, 5 Nuts, Wire Harness and Installation Instructions

Part #111872?Product Description?Kit,SST3 Printer Heater 230VAC Includes Heater, Fuse Holder, 1 amp Fuse, 5 nuts, Wire Harness and Installation Instructions

Part #76729?Product Description?Printer OPT,Thermal Transfer, M Class Mark II

Part #76732?Product Description?Printer OPT,Present Sensor, M Class

Part #52412?Product Description?Printer OPT,Network Connectivity XL E-4203, E-4205e, M Class

Part #35664?Product Description?Label,Pre-Saturated Cards 4×6 25/Box for 4in Wide Printers

Part #93181?Product DescriptionFilm,Printhead Cleaning 4IN Wide, 3/Box

Part #76734?Product Description?Printer OPT,M-4206 Manual Programmers Manual

Part #77562?Product Description?LIT,Manual M-4206 Operator Manual

Part #109181?Product Description?Manual,Service SST3

Part #103372?Product Description?Card,Internal Ethernet M-4206 and M-4210 Models produced after 11/12/07

Part #113764Product Description?Kit,Wireless Antenna for SST3 Printer Includes 103373 Wireless Card

Part #103374?Product Description?Card,USB HOST, LAN and Wireless card, M-4210 Models 13 and Wireless card



Models

Part #?107402 Product DescriptionPrinter,SST3 Direct Thermal, 203 dpi, 115 VAC with US Power Cord, Internal Rewind, Peel & Present OPT
Part #?110303 Product DescriptionPrinter,SST3 W/Heater OPT Direct Thermal, 203dpi, 115 VAC w/US Power Cord, Internal Rewind, Peel & Present
Part #?111868 Product DescriptionPrinter,SST3 Direct Thermal, 203 dpi, 230VAC with European Power Cord, Internal Rewind, Peel & Present OPT
Part #?111871 Product DescriptionPrinter,SST3 W/Heater OPT Direct Thermal, 203 dpi, 230VAC with European Power Cord, Internal Rewind, Peel & Present OPT
Part #?158890 Product DescriptionPrinter,SST3-300dpi Direct Thermal, 300 dpi, 115 VAC with US Power Cord, Internal Rewind, and Peel and Present, 8ips Uses M4308 Mark II Printer
