RL101 Below-the-hook Scale $ 0.00

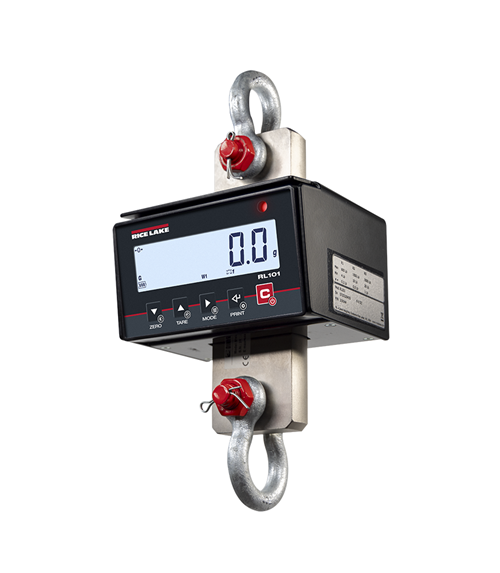

Compact Digital Below-the-hook Scale
The easy-to-use RL101 below-the-hook (BTH) digital scale is ideal for overhead weighing in industrial environments. This reliable BTH scale is fitted with an infrared remote control which can be configured as a remote keypad. The infrared remote control can be used at a distance up to 25 feet. This compact BTH scale reduces the lifting distance for increased safety. Manufactured in strict compliance with the highest safety standards, the RL101 scale continues to sustain a 5:1 Ultimate Safety Factor.

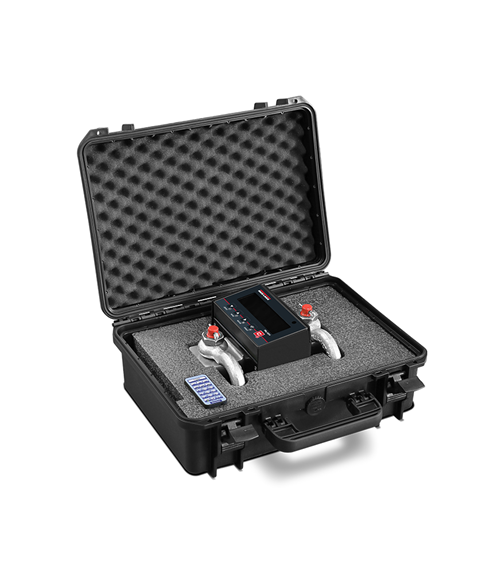

Ensuring operators can view weight in any lighting condition, the RL101 has a vibrant, LCD backlit display. A five-key waterproof keypad allows for easy zero, tare, mode, print and on/off controls. The RL101 comes in a sturdy transport case for extra protection.
Download product PDF
Features
Low headroom (14.5 to 16.65 in)
Infrared remote control (up to 25 ft)
Carrying case
Single and multi-point calibration
Upper and lower shackles
Lift and weigh scale (or device)
Specifications
Power:

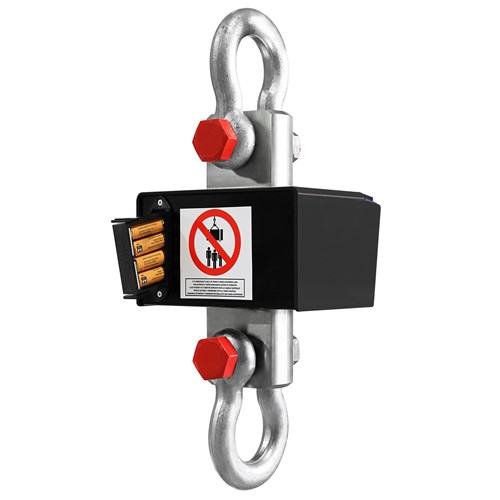

Batteries: four AA (included)
Battery Life:
Up to 40 hours, standard configuration
Resolution:
3,000 d standard
Annunciators:
COZ, net, gross, low batt, lb/kg/t, motion, active weight range and tare
Keys/Buttons:
Five key: zero, tare, mode, print and on/off
Display:
1 in (25 mm) backlight, LCD
Displayable Units:
Pounds and kilograms, selectable
Accuracy:
+/- 0.03% of capacity
Design Overload:
150% safe / 500% ultimate
Auto-Off Mode:
Off, 1-minute intervals (programmable)
Shackles:
Forged, alloy steel (6:1 safety factor)
Temperature Range:
Operating: 14 °F to 104 °F (-10 °C to 40 °C)
Rating/Material:
IP54
Oven-fired painted steel
Filtering:
Various: overhead weighing-dYn.0, dYn.1, dYn.2, dYn.3
Warranty:
One-year limited
Options
219144
RL101-3k BTH 3000lb capacity, Below-The-Hook, Multi-Range
219145
RL101-6k BTH 6000lb capacity, Below-The-Hook, Multi-Range
219147
RL101-12k BTH 12,000lb capacity, Below-The-Hook, Multi-Range
