Home / Weigh Modules / Ricelake / RL1600 Series Coated Load Cell Version Weigh Module

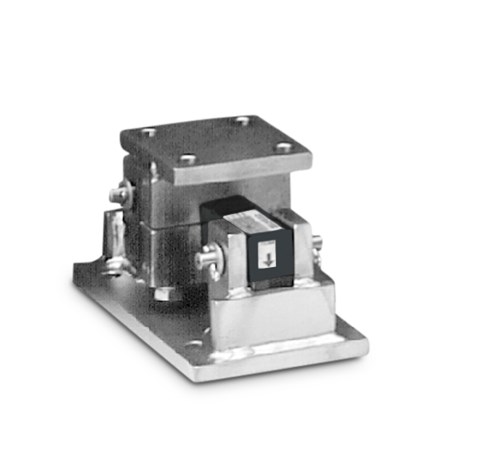

RL1600 Series Coated Load Cell Version Weigh Module $ 0.00
RL1600 Series Stainless Steel with Painted Load Cells
The RL1600 Series mounting module kit utilizes several Rice Lake Weighing Systems components to provide an unmatched level of performance in tank and hopper weighing applications. The RL1600 Series is ideally suited for applications where corrosive materials are weighed, such as fertilizer. Each module incorporates self-checking capabilities for thermal expansion and contraction.
Applications
Medium-to heavy-capacity tanks, bins, and hoppers
Bulk material management
Download product PDF
Features
RL1600 Series Coated Load Cell Version Weigh Module
Complete Kit Includes
Three or four RL1600 stainless steel compression mounts with RL75016 coated alloy steel, environmentally sealed, double ended shear beam load cells
One JB4SS NEMA Type 4X stainless steel signal trim junction box
25 ft of hostile environment EL147HE SURVIVOR® load cell cable
Standard Features:
Capacities (per module): 1,000 to 75,000 lb
Stainless steel construction (mounts)
Self-checking, easy-to-use design allows module to be bolted directly to tank leg without requiring additional mounting plates or load buttons
Double-ended shear beam design, center loaded
