RL1600 Series Stainless Steel Weigh Module

$0.00

Self-Checking Weigh Module

The RL1600 Series mounting module kit utilizes several Rice Lake Weighing Systems components to provide an unmatched level of performance in tank and hopper weighing applications. The RL1600 Series kit is ideally suited for indoor and outdoor process control operations in the medium- to high-capacity ranges. Each module incorporates self-checking capabilities for thermal expansion and contraction.

Applications:

  • Medium- to heavy-capacity tanks, bins and hoppers
  • Bulk material management
Download product PDF
Categories: ,

Features

RL1600 Series Mild Steel Weigh Module

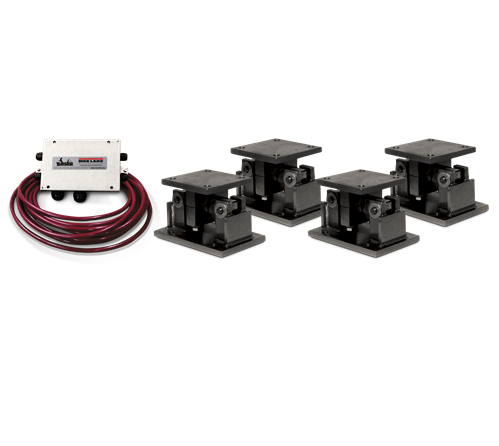

Complete Kit Includes

  • Three or four RL1600 mild steel compression mounts with RL75016 environmentally protected double-ended shear beam load cells
  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of our hostile environment EL147HE SURVIVOR® load cell cable

Standard Features

  • Capacities (per module): 1,000 to 75,000 lb
  • Coated mild steel construction
  • Self-checking, easy-to-use design allows module to be bolted directly to tank leg without requiring additional mounting plates or load buttons
  • Double-ended shear beam design, center loaded
  • Compatible with VPG® Sensortronics 65016 load cells

Specifications

Rated Capacity C H H1 H2 L L1 L2 L3 T W W1 W2 W3
lb/in
1,000 to 5,000 0.56 5.00 0.50 0.50 9.25 2.75 4.00 6.25 1/2-13 UNC 5.00 3.75 2.75 4.00
10,000 to 25,000 0.78 7.87 0.75 0.75 12.00 6.00 8.00 7.50 3/4-10 UNC 8.00 6.00 6.00 8.00
50,000 to 75,000 0.78 9.25 1.00 1.00 16.25 6.50 9.00 11.50 1 1/4-7 UNC 12.00 9.50 6.50 9.00
