RL1800 Series Coated Load Cell Version

$0.00

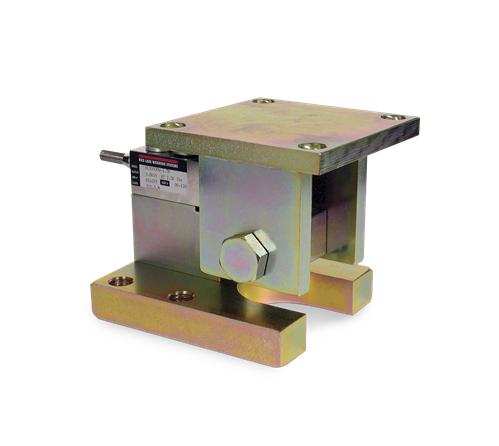

RL1800 Series Painted Load Cell Version

The RL1800 Series stainless steel weigh modules with painted, single-ended beam load cells provide accurate weighing solutions in corrosive environments such as fertilizer producers. Each module combines multi-directional movement and self-checking capabilities. The load cells used are NTEP Certified in capacities of 1,000 lb to 10,000 lb.

Applications

  • Conveyors
  • Medium-capacity tanks and hoppers
Download product PDF
Categories: , , ,

Features

Complete Kit Includes

  • Three or four RL1800 stainless steel compression mounts with RL32018 coated NTEP Certified stainless steel single-ended beam load cells
  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of hostile environment EL147HE SURVIVOR® load cell cable

Standard Features

  • Capacities (per module): 1,000 to 10,000 lb
  • NTEP Certified cells in 1,000 to 10,000 lb capacities
  • Stainless steel mounts
  • Center-pivoted, tension loading design
  • Self-checking, multi-directional movement
  • Load is suspended on high-strength bolt instead of wire rope
  • Design incorporates spherical washers for self centering
  • Coated load cells for corrosion protection

Specifications



Rated Capacity C H Min/Max H1 L L1 L2 L3 L4 L5 L6 L7 W W1 W2
lb/in
1,000 to 4,000 0.62 5.25/5.56 0.50 6.00 2.00 1.00 3.00 2.00 0.68 1.94 4.00 5.00 4.00 2.00
5,000 tp 10,000 0.62 6.12/6.62 0.50 7.75 3.00 1.50 3.75 2.00 1.03 2.97 4.00 5.00 4.00 2.00
