RL1800 Series Mild Steel/Stainless Steel Weigh Module

$0.00

A Weigh Module with an Unmatched Level of Performance

The RL1800 Series mounting assembly kit utilizes several Rice Lake Weighing Systems components to provide an unmatched level of performance in tank and hopper weighing applications. The RL1800 Series kit is ideally suited for indoor and outdoor process control operations with medium-range capacities. Each module combines multi-directional movement and self-checking capabilities. The RL35023S load cell used is NTEP certified in capacities of 1000 lb to 10,000 lb.

Applications:

  • Conveyors
  • Medium-capacity tanks and hoppers
Download product PDF
Categories: ,

Features

RL1800 Series Mild Steel/Stainless Steel Weigh Module

Complete Kit Includes

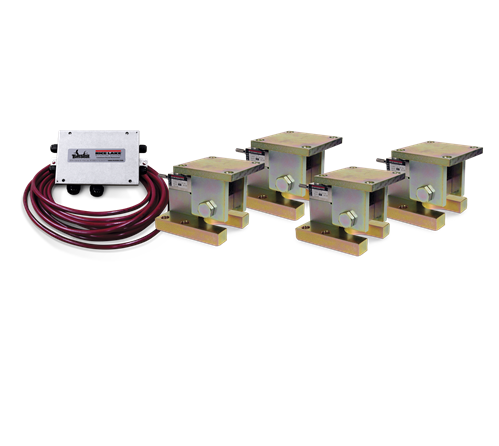

  • Three or four RL1800 mild steel or stainless steel compression mounts with NTEP Certified RL32018 single-ended beam load cells, RL32018S used in stainless steel
  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of hostile environment EL147HE SURVIVOR® load cell cable

Standard Features

  • Capacities (per module): 250 to 10,000 lb
  • NTEP Certified cells in 500 to 10,000 lb capacities, except 3,000 lb
  • Zinc plated mild steel/stainless steel construction
  • Center-pivoted, tension loading design
  • Self-checking, multi-directional movement
  • Load is suspended on high-strength bolt instead of wire rope
  • Design incorporates spherical washers for self centering

Specifications

Rated Capacity C H Min/Max H1 L L1 L2 L3 L4 L5 L6 L7 W W1 W2
Mild Steel
lb/in
250 to 5,000SE 0.62 5.25/5.56 0.50 6.00 2.00 1.00 3.00 2.00 0.68 1.94 4.00 5.00 4.00 2.00
5,000LE to 10,000 0.62 6.12/6.62 0.50 7.75 3.00 1.50 3.75 2.00 1.03 2.97 4.00 5.00 4.00 2.00
Stainless Steel Construction
lb/in
1,000 to 4,000 0.62 5.25/5.56 0.50 6.00 2.00 1.00 3.00 2.00 0.68 1.94 4.00 5.00 4.00 2.00
5,000 to 10,000 0.62 6.12/6.62 0.50 7.75 3.00 1.50 3.75 2.00 1.03 2.97 4.00 5.00 4.00 2.00
