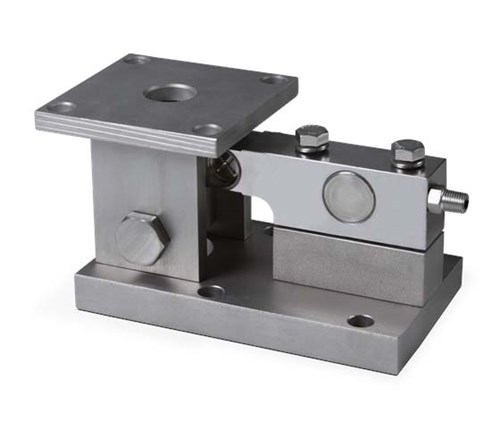

RL1900 Series Steel Weigh Module

$0.00

Corrosion-Resistant Weigh Module Kit

The RL1900 Series weigh module kit utilizes several Rice Lake Weighing Systems components to provide an unmatched level of performance in tank and hopper weighing applications. The RL1900 kit is ideally suited for tank, hopper and bin weighing operations with medium-range capacities. Each module combines multi-directional movement and self-checking capabilities. The welded seal stainless steel RLSSB load cell withstands washdown and corrosive environments that may present problems to other cells.

Applications:

  • Medium-capacity tanks, bins and hoppers
  • Washdown or corrosive applications
Download product PDF
Categories: ,

Features

RL1900 Series Steel Weigh Module

Complete Kit Includes

  • Three or four RL1900 stainless steel compression mounts with RLSSB NTEP Certified welded stainless steel single-ended beam load cells
  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of hostile environment EL147HE SURVIVOR® load cell cable

Standard Features

  • Capacities (per module): 1,000 to 10,000 lb
  • NTEP Certified load cells, 1:5000d, Class III single cell
  • Stainless steel construction
  • Center-pivoted, tension loading design
  • Welded-seal stainless steel load cells, IP67
  • Self-checking, multi-directional movement
  • Easy load cell replacement
  • Load is suspended on high-strength bolt instead of wire rope
  • Design incorporates spherical washers
  • Compatible with RTI SSB load cells

Specifications



Rated Capacity C H Min/Max H1 L L1 L2 L3 L4 L5 L6 L7 W W1 W2
lb/in
1,000 to 5,000 0.62 5.38/5.62 0.50 8.75 4.00 2.50 3.88 2.00 1.12 4.00 4.00 5.00 4.00 2.00
10,000 0.81 6.88/7.50 1.00 9.75 5.00 2.63 4.88 2.25 1.00 5.00 4.50 6.00 4.50 2.25
