RL2200SS Series Stainless Steel Weigh Module

$0.00

Simple and Economical Weigh Module

The RL2200SS Series mounts are ideal for use in tank, hopper, vessel and many other applications. The low-profile design allows for economical solutions in a competitive marketplace. This rugged, high-precision mount is designed for easy installation and does not require check rods or other stabilizing hardware. The RL2200SS mount has the added feature of self centering, allowing for side loads without sacrificing performance.

Applications

  • Tank, hopper or vessel weighing
  • Belt or roller conveyors
  • Scale platforms and screw feeders
Download product PDF
Categories: ,

Features

RL2200SS Series Stainless Steel Weigh Module

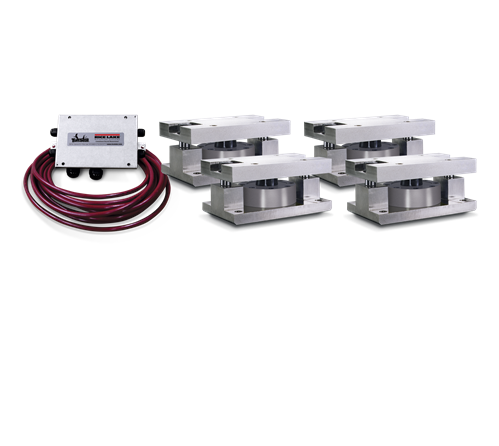

Complete Kit Includes

  • Three or four RL2200 stainless steel mounting assemblies with RL2200SS stainless steel, hermetically sealed, compression disk load cells
  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of hostile environment EL147HE SURVIVOR® load cell cable

Specifications

Full Scale Output:
4.0 mV/V
2.0 mV/V (2,500 lb)

Bridge Resistance:
350 ohm nominal

Material/Finish:
Stainless steel

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (20 V maximum)

 Nonlinearity:
0.05% full scale

Hysteresis:
0.03% full scale

Temperature:
Compensated range
15 °F to 115 °F (9 °C to 46 °C)

Insulation Resistance:
5,000 megohm

Seal Type:
Hermetically sealed, IP66/68

 Cable Length:
30 ft

Cable Color Code:
Red +Excitation
Black –Excitation
White +Signal
Green –Signal

Warranty:
Two-year limited
