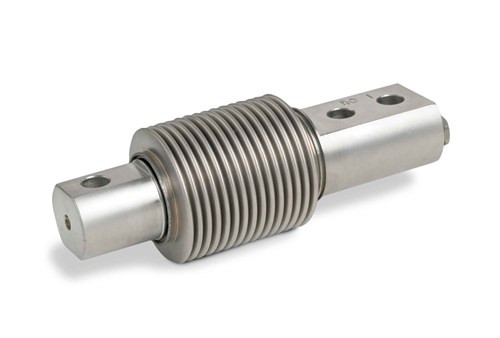

RL30 Stainless Steel, Bending Beam Load Cell

$0.00

Download product PDF
Categories: ,

Features

  • Capacities range from 5 kilograms to 500 kilograms
  • Stainless steel finish
  • Welded seal
  • IP68/IP69K rating
  • ATEX available on request

Specifications

Full Scale Output:
2,0 mV/V

Output Resistance:
350 ohms, ± 3

Input Resistance:
400 ohms, ± 2

Material Finish:
Stainless steel

Temperature:
-10° C to 40° C

Seal Type:
Welded seal, IP68/IP69K

Safe Overload:
200%

Rated Excitation:
10 V

Combined Error:
< ± 0,017%

Insulation Resistance:
> 5.000 megohms

Cable Length:
3 m

Cable Construction:
PVC

Cable Color Code:
Green…………………..+ Excitation
Black……………………– Excitation
Red……………………..+ Signal
White…………………..– Signal
Blue…………………….+ Sense
Yellow………………….– Sense

Warranty:
One-year limited warranty

Approvals:
OMIL
Ex – available on request

Options

160824 Loadcell,CLB RL30 5 kg OIML C3, IP68/IP69K
160825 Loadcell,CLB RL30 10 kg OIML C3, IP68/IP69K
160826 Loadcell,CLB RL30 20 kg OIML C3, IP68/IP69K
160827 Loadcell,CLB RL30 30 kg OIML C3, IP68/IP69K
160828 Loadcell,CLB RL30 50 kg OIML C3, IP68/IP69K
160829 Loadcell,CLB RL30 75 kg OIML C3, IP68/IP69K
160830 Loadcell,CLB RL30 100 kg OIML C3, IP68/IP69K
160831 Loadcell,CLB RL30 150 kg OIML C3, IP68/IP69K
160832 Loadcell,CLB RL30 200 kg OIML C3, IP68/IP69K
160833 Loadcell,CLB RL30 250 kg OIML C3, IP68/IP69K
160834 Loadcell,CLB RL30 300 kg OIML C3, IP68/IP69K
160835 Loadcell,CLB RL30 500 kg OIML C3, IP68/IP69K
