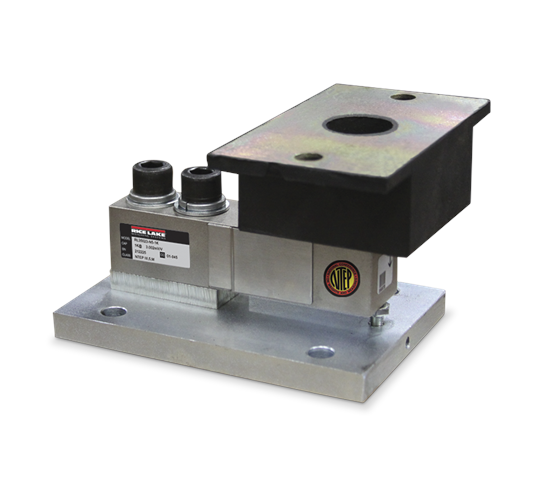

RL50210 TA 1000 lb – 2500 lb Capacity Mini Tank Weighing Module

$0.00

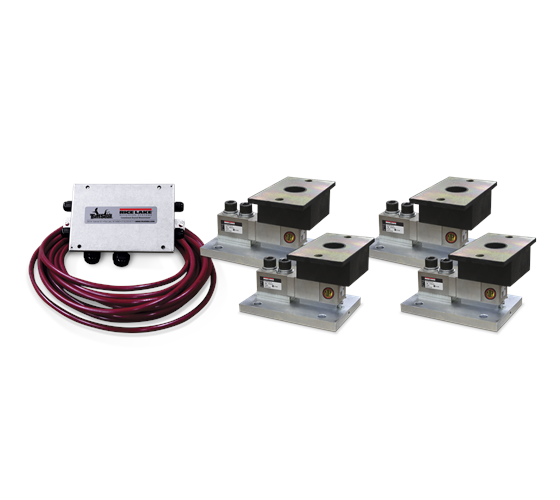

Complete Kit Includes:

  • One?JB4SS NEMA Type 4X stainless steel signal trim junction box
  • Three?or four?RL35023 shear beam load cells
  • Three?or four?neoprene isolation/compression mounts
  • 25 ft of our hostile environment EL147HE SURVIVOR load cell cable

Standard Features:

  • NTEP Certified load cells (alloy steel only), 1:5000d, Class III multiple cell
  • Zinc plated, mild steel assemblies
  • Medium weighing ranges from 1,000-2,500 lb (453.6-1134.0 kg) per module
  • Environmentally protected load cells
  • Neoprene isolation/compression mounts allow for minor misalignment, thermal expansion and shock absorption
  • Overload stop provides durability
  • RL50210 stainless steel mounts use RL35023S stainless steel load cells, capacities: 1,000-2,500 lb (453.6-1134.0 kg) NTEP Certified cells
  • 65059 stainless steel mounts use VPG Sensortronics?65023S NTEP Certified stainless steel load cells
Download product PDF
Category:

Features

NTEP Certified load cells (alloy steel only),
1:5000d, Class III multiple cell
? Zinc plated, mild steel assemblies
? Medium weighing ranges from 1,000lb-2,500lb
(453.6kg-1,134.0 kg) per module
? Environmentally protected load cells
? Neoprene isolation/compression mounts allow
for minor misalignment, thermal expansion and
shock absorption
? Overload stop provides durability
? RL50210 stainless steel mounts use RL35023S
stainless steel load cells, capacities:
1,000lb-2,500lb (453.6kg-1,134.0kg)
NTEP Certified cells
? 65059 stainless steel mounts use VPG
Sensortronics 65023S NTEP Certif

Specifications

Applications
? Small tanks and hoppers
? Conveyor/In-motion weighing
? Small platform scales where minor shock loading
may be a problem
Complete Kit Includes
? One JB4SS NEMA Type 4X stainless steel signal
trim junction box
? Three or four RL35023 shear beam load cells
? Three or four neoprene
isolation/compression mounts
? 25ft of our hostile environment EL147HE
SURVIVOR load cell cable
Optional Features
? Welded stainless steel cells available in stainless
steel mounts

Models

Mild Steel 3-Module Kit

18056 Mount Kit,RL50210TA 3EA 1,000lb Mild Steel Zinc Plated Compression INCL RL35023-1,000lb And JB4SS
30398 Mount Kit,RL50210TA 3EA 2,000lb Mild Steel Zinc Plated Compression INCL RL35023-2K And JB4SS
30396 Mount Kit,RL50210TA 3EA 2,500lb Mild Steel Zinc Plated Compression INCL RL35023-2.5K And JB4SS

Mild Steel 4-Module Kit

18062 Mount Kit,RL50210TA 4EA 1,000lb Mild Steel Zinc Plated Compression INCL RL35023-1,000lb And JB4SS
30397 Mount Kit,RL50210TA 4EA 2,000lb Mild Steel Zinc Plated Compression INCL RL35023-2K And JB4SS
30395 Mount Kit,RL50210TA 4EA 2,500lb Mild Steel Zinc Plated Compression INCL RL35023-2.5K And JB4SS

Stainless Steel 3-Module Kit

30400 Mount Kit,RL50210TA 3EA 2,500 lb SST Compression INCL RL35023S-2.5K And JB4SS
30402 Mount Kit,RL50210TA 3EA 2,000 lb SST Compression INCL RL35023S-2K And JB4SS
30404 Mount Kit,RL50210TA 3EA 1,000 lb SST Compression INCL RL35023S-1K And JB4SS

Stainless Steel 4-Module Kit

30399 Mount Kit,RL50210TA 4EA 2,500 lb SST Compression INCL RL35023S-2.5K And JB4SS
30401 Mount Kit,RL50210TA 4EA 2,000 lb SST Compression INCL RL35023S-2K And JB4SS
30403 Mount Kit,RL50210TA 4EA 1,000 lb SST Compression INCL RL35023S-1K And JB4SS
