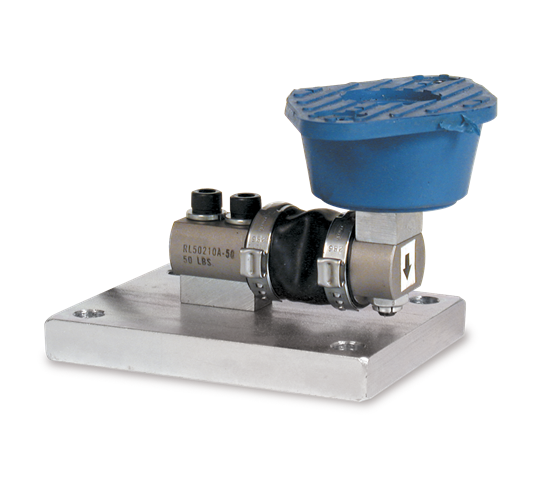

Zinc plated, mild steel modules
? Lower weighing ranges from 50lb-500lb
(22.7kg-226.8kg) per module
? Environmentally protected load cells
? Neoprene isolation/compression mounts allow
for minor misalignment, thermal expansion and
shock absorption
? Overload stop for 500lb (226.8kg) modules
provides durability
Specifications
Applications
? Small tanks and hoppers
? Conveyor/In-motion weighing
? Small platform scales where minor shock loading
may be a problem Optional Features

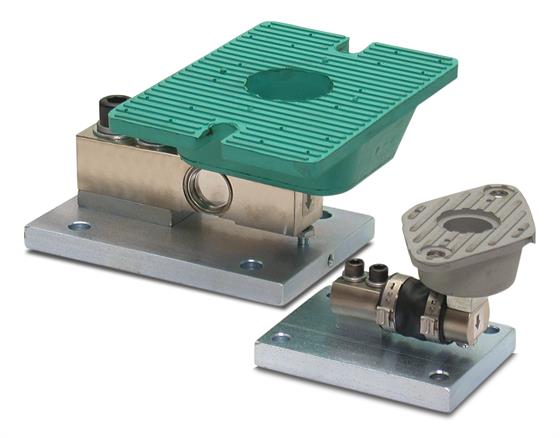

? Stainless steel modules available in 500lb
(226.8kg) capacities with RL39123 stainless
steel load cells or VPG Sensortronics 65023 SS
load cells
? 65059 kits available with VPG Sensortronics
60040 load cells, capacities: 50lb-250lb
(22.7kg-113.4kg) or 65023 load cells, capacity:

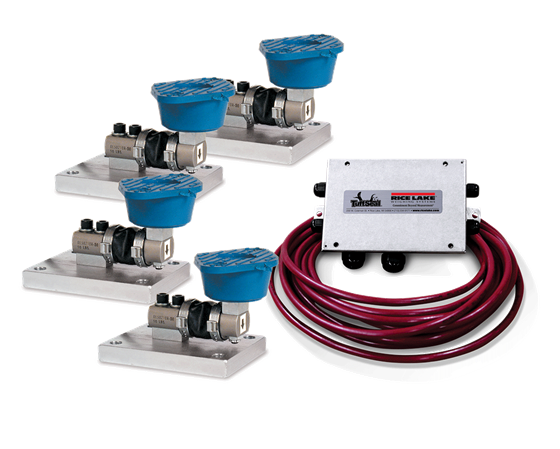

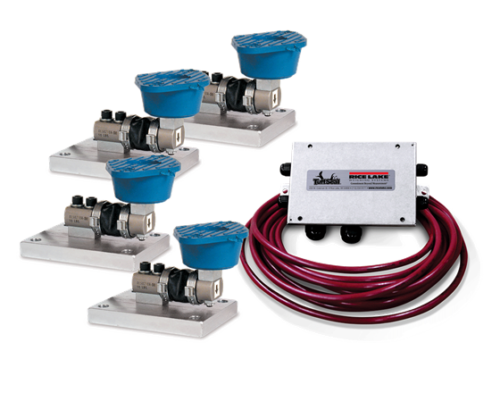

500lb (226.8kg) Complete Kit Includes
? One JB4SS NEMA Type 4X stainless steel signal
trim junction box
? Three or four RL50210 cantilever beam load cells
(50lb-250lb models)
? Three or four RL30000 single-ended beam load
cells (500lb models)
? Three or four RL39123 stainless steel
single-ended beam load cells (500lb)
? Three or four neoprene isolation/
compression mounts
? 25ft of our hostile environment EL147HE
SURVIVOR load cell cable
Models
Mild Steel 3-Module Kit
PART #
PRODUCT DESCRIPTION
MATERIAL/FINISH
18051
Mount Kit,RL50210TA 3EA 50 lb Mild Steel Zinc Plated Compression INCL RL50210-50 lb And JB4SS
Mild Steel
18052
Mount Kit,RL50210TA 3EA 100 lb Mild Steel Zinc Plated Compression INCL RL50210-100 lb And JB4SS
Mild Steel
18053
Mount Kit,RL50210TA 3EA 150 lb Mild Steel Zinc Plated Compression INCL RL50210-150 lb And JB4SS
Mild Steel
18054
Mount Kit,RL50210TA 3EA 250 lb Mild Steel Zinc Plated Compression INCL RL50210-250 lb And JB4SS
Mild Steel
18055
Mount Kit,RL50210TA 3EA 500 lb Mild Steel Zinc Plated Compression INCL RL30000-500 lb And JB4SS
Mild Steel
Mild Steel 4-Module Kit
PART #
PRODUCT DESCRIPTION
MATERIAL/FINISH
18057
Mount Kit,RL50210TA 4EA 50 lb Mild Steel Zinc Plated Compression INCL RL50210-50 lb And JB4SS
Mild Steel
18058
Mount Kit,RL50210TA 4EA 100 lb Mild Steel Zinc Plated Compression INCL RL50210-100 lb And JB4SS
Mild Steel
18059
Mount Kit,RL50210TA 4EA 150 lb Mild Steel Zinc Plated Compression INCL RL50210-150 lb And JB4SS
Mild Steel
18060
Mount Kit,RL50210TA 4EA 250 lb Mild Steel Zinc Plated Compression INCL RL50210-250 lb And JB4SS
Mild Steel
18061
Mount Kit,RL50210TA 4EA 500 lb Mild Steel Zinc Plated Compression INCL RL30000-500 lb And JB4SS
Mild Steel
Stainless Steel 3-Module Kit
PART #
PRODUCT DESCRIPTION
30394
Mount Kit,RL50210-SS-TA 3ea 500 lb SST Compression INCL RL39123-500 And JB4SS
Stainless Steel
Stainless Steel 4-Module Kit
PART #
PRODUCT DESCRIPTION
30393
Mount Kit,RL50210-SS-TA 4ea 500 lb SST Compression INCL RL39123-500 And JB4SS
