RL50210TA Mini Tank Weighing Module

$0.00

Weighing Module for Medium-Range Needs

The RL50210TA weigh module kit provides a cost-effective alternative for your customer’s medium-range weighing needs. A variety of features makes this kit easy to install and an exceptional choice for various indoor weighing applications where checking requirements are low. Environmentally protected load cells, neoprene isolation/compression mounts and other Rice Lake Weighing Systems components are the keys to this module’s performance.

Applications

  • Small tanks and hoppers
  • Conveyor/In-motion weighing
  • Small platform scales where minor shock loading may occur
Download product PDF
Categories: ,

Features

RL50210TA Mini Tank Weighing Module

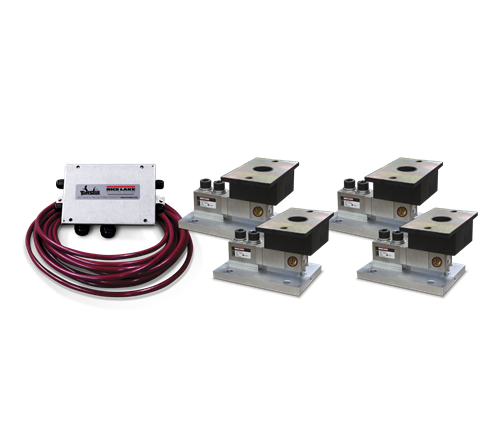

Complete Kit Includes

  • Three or four neoprene isolation/compression mounts with NTEP Certified load cells
    • 50 to 250 lb mild steel: RL50210
    • 500 lb mild steel: RL30000
    • 1,000 to 2,500 lb mild steel: RL32018
    • 500 lb stainless steel: RL39123
    • 1,000 to 2,500 lb stainless steel: RL32018S
  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of hostile environment EL147HE SURVIVOR® load cell cable

Standard Features

  • NTEP Certified load cells
  • Zinc plated mild steel or stainless steel assemblies
  • Weighing ranges from 50 to 2,500 lb per module
  • Neoprene isolation mounts allow for minor misalignment, thermal expansion and shock absorption
  • Overload stop provides durability

Optional Features

  • Stainless steel modules available in 500 lb capacities with RL39123 stainless steel load cells

Specifications

Rated Capacity C C1 H H1 L L1 L2 W W1 W2 W3
lb/in
50 to 250 0.34 – 3.13 0.50 4.00 3.25 2.38 3.88 3.00 2.25 –
500 0.44 0.56 3.88 0.50 6.00 4.00 3.38 5.50 4.00 3.00 4.13
1,000 0.44 – 4.00 0.50 6.00 4.00 3.00 5.13 4.00 3.00 4.13
2,000 to 2,500 0.44 0.56 4.00 0.50 6.00 4.00 4.62 6.25 4.00 3.00 5.00
