RL50219SS-TA Mini Tank Weighing Module, Stainless Steel

$0.00

The RL50219SS-TA weigh module kit provides a cost-effective alternative for your customers’ low-range weighing needs. A variety of features makes this kit easy to install and an exceptional choice for various indoor weighing applications where checking requirements are low. Environmentally protected load cells, neoprene isolation/compression mounts and other Rice Lake Weighing Systems components are the keys to this module’s outstanding performance.

Applications

  • Small tanks and hoppers
  • Conveyor/In-motion weighing
  • Small platform scales where minor shock loading may occur
Download product PDF
Categories: ,

Features

RL50219SS-TA Mini Tank Weighing Module, Stainless Steel

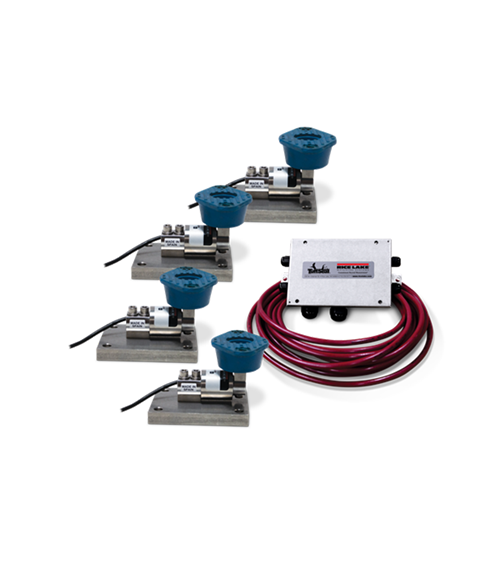

Complete Kit Includes

  • Three or four neoprene isolation/compression mounts with load cells
    • 50 to 250 lb model: RL50219SS
    • 500 lb model: stainless steel single-ended beam
  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of hostile environment EL147HE SURVIVOR® load cell cable

Standard Features

  • Stainless steel modules
  • Lower weighing ranges from 50 to 500 lb per module
  • Environmentally protected load cells
  • Neoprene isolation/compression mounts allow for minor misalignment, thermal expansion and shock absorption
  • Overload stop for 500 lb modules provides durability

Specifications

50 to 250 lb

500 lb

Rated Capacity C C1 H H1 L L1 L2 W W1 W2 W3
lb/in
50 to 250 0.34 – 3.13 0.50 4.00 3.25 2.38 3.88 3.00 2.25 –
500 0.44 0.56 3.88 0.50 6.00 4.00 3.38 5.50 4.00 3.00 4.13
