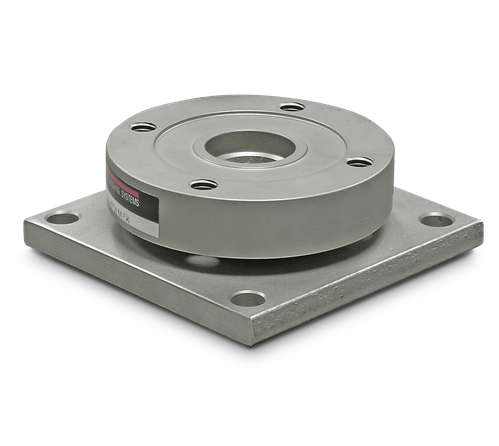

RL9000TWM-HT Series Weigh Module

$0.00

A Weigh Module for High Temperature Applications

The RL9000TWM-HT weigh module is part of the popular RL9000TWM Series weigh module. The RL9000TWM-HT is a high temperature version that is designed to operate in temperatures up to 400°F. The integral 25 ft of PTFE cable compliments the RL9000TWM-HT weigh module.

Applications

  • Tank, hopper, or vessel weighing
  • High temperature applications
Download product PDF
Categories: ,

Features

RL9000TWM-HT Series Weigh Module

  • Capacities: 1,000 to 50,000 lb
  • Stainless steel construction
  • Very low profile design
  • Self-centering
  • Self-checking assembly
  • Offers 100% side load, 100% uplift, 150% safe load and 300% ultimate overload protection
  • Weighs accurately with up to 3° non-parallel load

Optional Features

  • Stainless steel top plates
  • Higher capacities available upon request

Specifications

Full Scale Output:
3.0 (± 0.1%) mV/V

Bridge Resistance:
700 ohm

Material/Finish:
Stainless steel

Operating Temperature:
0 °F to 400 °F (-17 °C to 204 °C)

Seal Type:
Welded seal, IP67

 Safe Overload:
150% full scale

Insulation Resistance:
5,000 megohm

Non-linearity:
0.01% full scale

Non-repeatability:
0.02% full scale

Cable Length:
25 ft PTFE jacket

 Deflection at Capacity:
1 to 15 K: 0.002 in
20 to 50 K: 0.004 in

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal

Warranty:
Two-year limited
