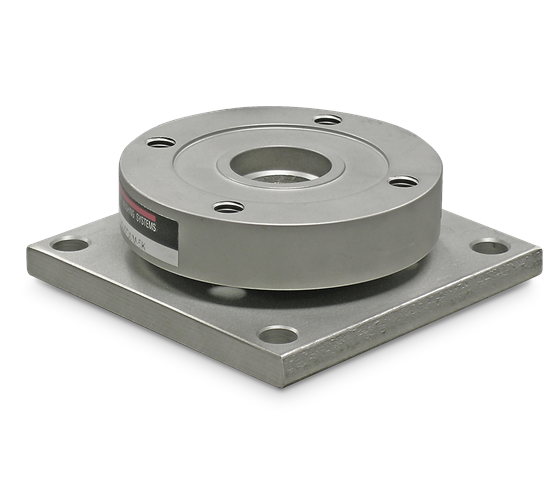

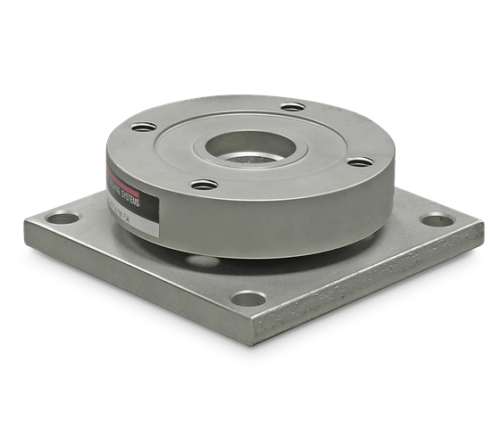

RL9000TWM Series Weigh Module

$0.00

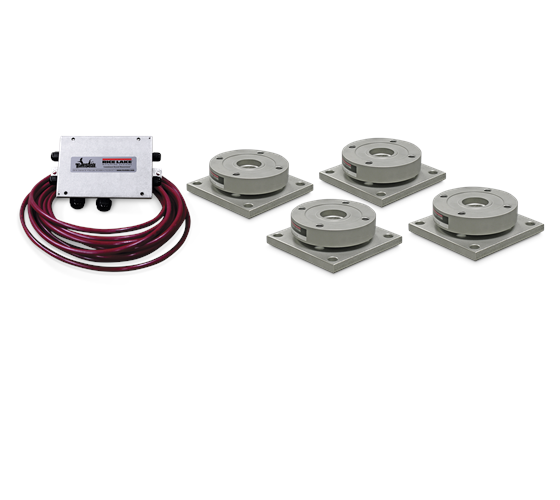

Complete Kit Includes:

  • One?JB4SS NEMA Type 4X stainless steel signal trim junction box
  • Three?or four?stainless steel mounting assemblies
  • 25 ft of our hostile environment EL147HE SURVIVOR load cell cable

Standard Features:

  • Capacities: 1,000lb-450,000lb
  • Very low profile design
  • 3mV/V output
  • Self-centering
  • Self-checking assembly
  • Offers 100% sideload, 100% uplift and 150% static safe load and 300% ultimate static overload protection
  • Stainless steel construction
  • Welded seal
  • Weighs accurately with as much as a 3? non-parallel load
  • Includes 25ft load cell cable
Download product PDF
Category:

Features

Standard Features
? Capacities: 1,000lb-450,000lb
? Very low profile design
? 3mV/V output
? Self-centering
? Self-checking assembly
? Offers 100% sideload, 100% uplift and 150%
static safe load and 300% ultimate static
overload protection
? Stainless steel construction
? Welded seal
? Weighs accurately with as much as a
3? non-parallel load
? Includes 25ft load cell cable

Specifications

Applications
? Tank, hopper or vessel weighing
Optional Features
? Stainless steel top plates (150,000lb-450,000lb
have mild steel painted base plate)
Complete Kit Includes
? One JB4SS NEMA Type 4X stainless steel signal
trim junction box
? Three or four stainless steel mounting assemblies
? 25ft of our hostile environment EL147HE
SURVIVOR load cell cable

Options

151637 Tool, Bolt Removal Tool RL9000TWM Bolt Removal Tool 20k-50k
151638 Tool, Bolt Removal Tool RL9000TWM Bolt Removal Tool 60k-100k
151639 Tool, Bolt Removal Tool RL9000TWM Bolt Removal Tool 150k-200k
161935 Tool, Bolt Removal Tool RL9000TWM Bolt Removal Tool 250k-450k

Dummy Weigh Modules (non-functioning)

158749 Dummy Load Cell, RL9000 TWM 1k-10k mild steel
158750 Dummy Load Cell, RL9000 TWM 15k mild steel
158752 Dummy Load Cell, RL9000 TWM 20k-50k mild steel
158753 Dummy Load Cell, RL9000 TWM 60k-100k mild steel
158754 Dummy Load Cell, RL9000 TWM 150k-200k mild steel
158755 Dummy Load Cell, RL9000 TWM 250k-450k mild steel



Models

3-Module Kit

98974 Mount kit, RL9000TWM 3ea 1000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE.
98980 Mount kit, RL9000TWM 3ea 2500lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE.
98981 Mount kit, RL9000TWM 3ea 5000lb SST Includes RL9000TWM and JB4SS Jbox and 25ft of EL147HE.
98982 Mount kit, RL9000TWM 3ea 10000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE .
98983 Mount kit, RL9000TWM 3ea 15000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE.
98984 Mount kit, RL9000TWM 3ea 20000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE.
98985 Mount kit, RL9000TWM 3ea 25000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE.
98986 Mount kit, RL9000TWM 3ea 35000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE.
98987 Mount kit, RL9000TWM 3ea 50000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE.
98988 Mount kit, RL9000TWM 3ea 60000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE.
98989 Mount kit, RL9000TWM 3ea 75000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE.
98990 Mount kit, RL9000TWM 3ea 100000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE.
98991 Mount kit, RL9000TWM 3ea 150000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE.
98992 Mount kit, RL9000TWM 3ea 200000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE.
98993 Mount kit, RL9000TWM 3ea 250000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE.
98994 Mount kit, RL9000TWM 3ea 300000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE.
98995 Mount kit, RL9000TWM 3ea 400000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE
98996 Mount kit, RL9000TWM 3ea 450000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE.

4-Module Kit

98997 Mount kit, RL9000TWM 4ea 1000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE.
98998 Mount kit, RL9000TWM 4ea 2500lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE.
98999 Mount kit, RL9000TWM 4ea 5000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE.
99000 Mount kit, RL9000TWM 4ea 10000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE
99001 Mount kit, RL9000TWM 4ea 15000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE
99002 Mount kit, RL9000TWM 4ea 20000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE
99003 Mount kit, RL9000TWM 4ea 25000lb SST Includes RL9000TWM a B4SS Jbox and 25ft of EL147HE
99004 Mount kit, RL9000TWM 4ea 35000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE
99005 Mount kit, RL9000TWM 4ea 50000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE
99006 Mount kit, RL9000TWM 4ea 60000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE
99007 Mount kit, RL9000TWM 4ea 75000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE
99008 Mount kit, RL9000TWM 4ea 100000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE
99009 Mount kit, RL9000TWM 4ea 150000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE
99010 Mount kit, RL9000TWM 4ea 200000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE
99011 Mount kit, RL9000TWM 4ea 250000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE
99012 Mount kit, RL9000TWM 4ea 300000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE
99013 Mount kit, RL9000TWM 4ea 400000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE
99014 Mount kit, RL9000TWM 4ea 450000lb SST Includes RL9000TWM a JB4SS Jbox and 25ft of EL147HE
