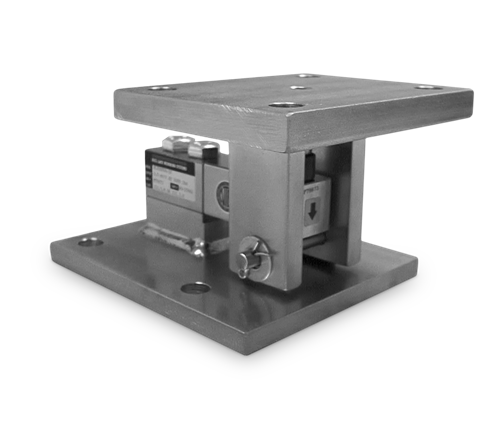

RLBTM Mild/Stainless Steel Weigh Module

$0.00

Mild or Stainless Steel Weigh Module

The RLBTM mount was specifically created to take advantage of the improved load introduction accuracy of the ball and cup design. This multi-purpose mount is ideal for both indoor and outdoor applications, and can be used with a variety of single-ended beam load cells. Available in both mild and stainless steel. This product offers superior accuracy at an affordable price. These assemblies are also quick and easy to install, making the RLBTM the perfect choice for your low-capacity, multi-purpose weighing needs.

Applications:

  • Light- to medium-capacity tanks and hoppers
  • Conveyors
Download product PDF
Categories: ,

Features

RLBTM Mild/Stainless Steel Weigh Module

  • Capacities (per module): 250 to 5,000 lb SE
  • Zinc plated, mild steel construction or stainless steel construction
  • Self-checking, multi-directional movement
  • Design incorporates a ball and cup for self-centering
  • The RLBTM will accommodate a standard shear beam 250 to 5,000 lb SE load cell that has a threaded load hole such as the RL30000, RL39123, RL35023, RL35082 and RL35083

Specifications

Rated Capacity A B C D E F G H I
lb/in
250 to 5,000 SE 8.00 5.00 6.00 4.50 3.50 4.75 4.00 7.00 0.63
