RLC Stainless Steel Weigh Module, VPG Revere $ 0.00
A Weigh Module with Long-Term Reliability
The RLC self-aligning silo mount, together with the RLC load cell family, are an ideal solution for process control, batch weighing, silo/hopper and belt scale applications. The RLC mount incorporates a removable rocker pin design, that uses hardened stainless steel components on all load-bearing surfaces. The fully stainless steel construction guarantees long-term reliability, even in harsh environments.
Applications:
Medium-capacity tanks, bins and hoppers
Washdown or corrosive applications
Process control and batch weighing
Download product PDF
Features
RLC Stainless Steel Weigh Module, VPG Revere

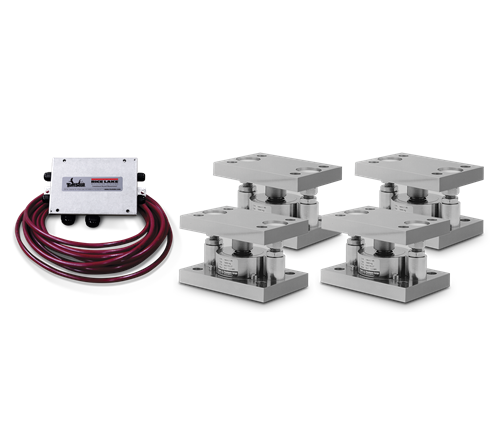

Complete Kit Includes
Three or four RLC stainless steel compression mounts with RLC NTEP Certified stainless steel hermetically sealed compression disk load cells
One JB4SS NEMA Type 4X stainless steel signal trim junction box
25 ft of hostile environment EL147HE SURVIVOR® load cell cable
Standard Features
Capacities (per module): 0.5 to 5 t
mV/V/Ohm calibrated load cells eliminates the need for trimming
Stainless steel construction
Rocker pin design allows movement in all directions
Easy load cell replacement
Integral jacking/shipping bolts
Specifications
Rated Capacity
H
H1
H2
L
L1
L2
T
W
W1
W2
ton/mm
0.5 to 1
80.0
20.0
15.0
150.0
15.0
120.0
14.0 (Top plate)
100.0
70.0
15.0
2 to 5
100.0
20.0
20.0
160.0
20.0
120.0
13.8 (Bottom plate)
110.0
70.0
20.0
