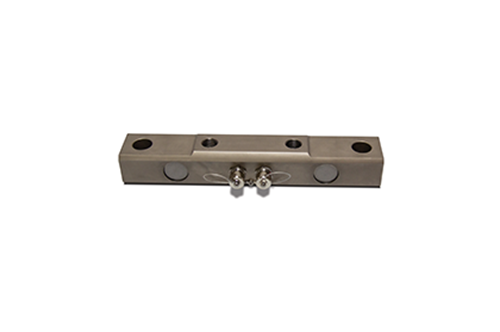

RLPLS-75K Alloy Steel, Hermetically Sealed Load Cell
$0.00
Download product PDF
Specifications
Material/Finish:
Alloy steel
Output:
(2) 10 mA – PN 115199 and PN 151456
(2) 20 mA – PN 169221
Temperature:
14° F to 104° F (-10° C to 40° C) |
Insulation Resistance:
2,000 megohms at 50 VDC
Seal Type:
Hermetically sealed, IP68
Connector Type:
Turck 7/8 in minifast, 5-pin (x2) |
Connector Pin Out:
Pin 1: Loop Power
Pin 2: Current Loop
Pin 3: Shield
Pin 4: NC
Pin 5: Ground
Warranty:
One-year limited warranty |
