RLTM Stainless Steel Tank Weigh Module

$0.00

Stainless Steel Tank Weigh Module

The RLTM weigh module assembly features a stainless steel, welded sealed RL30745 load cell and a fully stainless mount including all associated hardware. Using a rocker pin-loading concept, this design provides accurate weighing in most conditions. Standard features include both overload and overlift protection, making it ideal for most outdoor low-capacity tank and vessel weighing applications. Each Rice Lake RLTM module is provided standard with one load cell with 30 ft of cable and one mount.

Applications:

  • Lower capacity tank and vessel weighing
  • Process control and batching
Download product PDF
Categories: ,

Features

RLTM Stainless Steel Tank Weigh Module

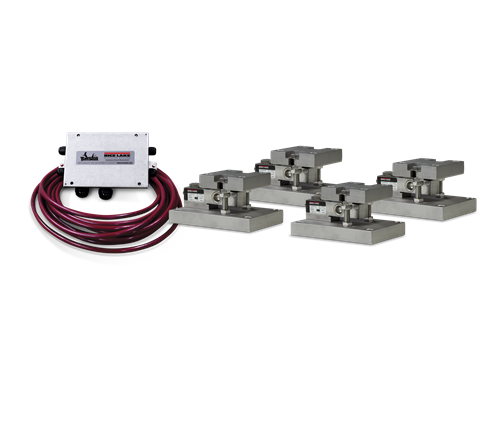

Complete Kit Includes

  • Three or four Rice Lake RLTM stainless steel mounting assemblies with RL32018S-T NTEP Certified, welded-seal stainless steel load cells
  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of hostile environment EL147HE SURVIVOR® load cell cable

Standard Features

  • Capacities (per module) 500 to 10,000 lb
  • NTEP Certified load cells, 1:5,000d, Class III multiple cell
  • Stainless steel construction
  • Overload and uplift protection
  • Rocker pin loading
  • Integral lateral stops

Specifications

Rated Capacity A B C D E
lb/inches
500 to 2,500 3.77 2.59 2.62 6.50 7.50
5,000 3.99 2.83 2.62 6.50 7.50
10,000 4.27 3.08 3.88 7.50 8.50
