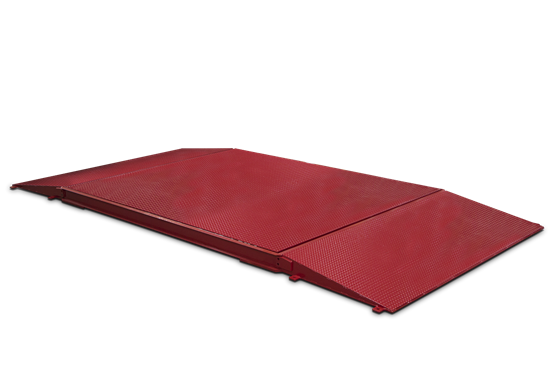

RoughDeck AX-1 Axle Scale
$0.00
See PDF for more details.
Download product PDF
Features
- Sizes: 7.5, 9.5 or 11.5 ft lengths
- Capacity: 50,000 lb
- Contains four environmentally sealed, IP67 20,000lb single-ended shear beam load cells with over braid cable
- Treaded top plate
- JB4SS TuffSeal signal trim top access junction box
- Top access foot adjustment holes
- Carbon steel captured ball feet
- 20ft Survivor EL147HE cable
- Non Legal for Trade
- Includes (2) 1-8NC eye bolts
Specifications
- End Loading Capacity: 80% full scale at 50,000 lb
- Warranty: Weldment five years, load cells two years, all other components one-year limited warranty
