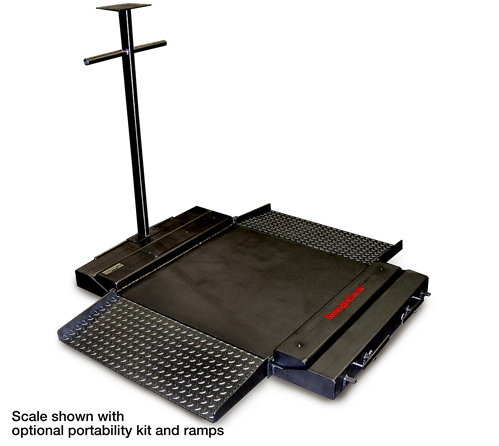

RoughDeck BDP Mild Steel – Portable Model

$0.00

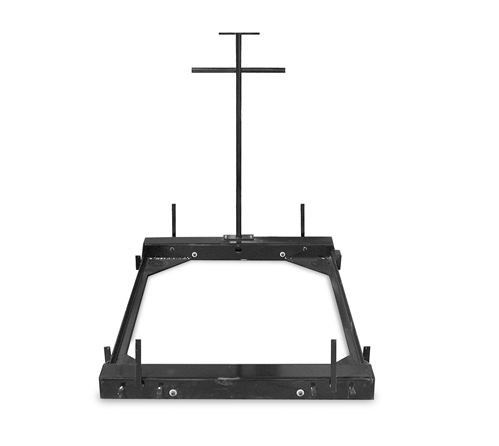

Take the stationary RoughDeck BDP where you need it with the optional Portability Kit.  Perfect for material handling fieldwork applications, the compact, low-profile frame showcases a lifting mechanism which, when engaged, allows the operator to move the scale in any direction. The frame also includes brackets for mounting optional access ramps providing maneuverable approaches for any material.

Four NSF-approved caster-designed wheels enable the operator to move the scale easily and effortlessly. Use the indicator stand with any of Rice Lake’s indicators and you have a visible weighing system at your command, anywhere you can take it.

Download product PDF
Categories: ,

Features

  • Live side rails
  • Top-access foot adjustment holes
  • Holes are 1/2-13 threaded for lifting scale
  • Four adjustable stainless steel SUREFOOT™ support feet
  • Treaded top plate
  • Alloy steel load cells

Specifications

End Load Capacity:
1,000 lb: 100% full scale
2,500 lb: 80% full scale

Cable Length:
10 ft (3 m)

 Junction Box:
TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card

Welding:
Stitch

Threaded Eyebolt:
Hole (1/2-13 NC) located in center of deck for easy lifting

 Warranty (limited):
Weldment: Five-year
Load cells: Two-year
All other components: One-year

Approvals:
NTEP CC 03-060, Class III 2,500 d
Measurement Canada AM-5578
(500 kg) Class III 2,500 d
(1,000 kg) Class III 2,000 d

Options

77962 Scale, Barrel Roughdeck BDP 30x31x1.625 1,000 lb steel painted
77963 Scale, Barrel Roughdeck BDP 30x31x1.625 2,500 lb steel painted
77964 Scale, Barrel Roughdeck BDP 36x37x1.625 1,000 lb steel painted
77965 Scale, Barrel Roughdeck BDP 36x37x1.625 2,500 lb steel painted
78021 Portability Kit, Roughdeck BDP 30×31 1,000-2,500 Steel Painted
78022 Portability Kit, Roughdeck BDP 36×37 1,000-2,500 Steel Painted
99102 Portability Kit, Roughdeck BDP 30×31 1,000-2,500 Steel Painted with conductive wheels
199103 Portability Kit, Roughdeck BDP 36×37 1,000-2,500 Steel Painted with conductive wheels
