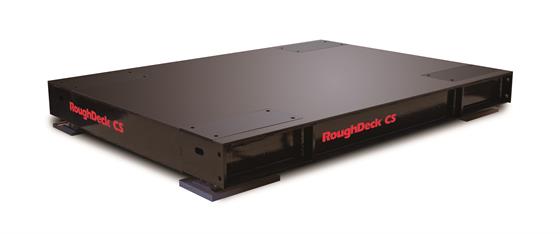

RoughDeck CS Coil Floor Scale

$0.00

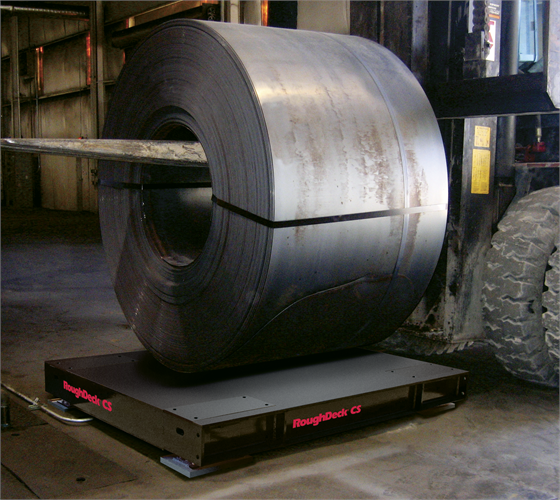

The RoughDeck CS coil floor scale is a reinforced version of our standard model, uniquely suited to meet the demanding process of weighing dense coils of steel.

Download product PDF
Categories: ,

Features

  • Capacities: 40,000 lb to 80,000 lb, consult factory for custom capacities
  • Deck thickness: 1/2 in smooth top plate
  • JB4SS Tuffseal signal trim junction box
  • MVS self-checking mounting system, top access to load cells
  • Black epoxy paint
  • 20 ft SURVIVOR EL147HE hostile environment load cell cable
  • Ships unassembled with (8) concrete anchor bolts

Specifications

Capacities:
Scale Capacity |?Load Cell and Mount Capacity
40,000 lb? |? Qty (4) 50,000 lb each
60,000 lb? |? Qty (4) 50,000 lb each
80,000 lb? |? Qty (4) 75,000 lb each

Warranty:
RoughDeck CS weldment five years, load cells two years, all other components one year

Approvals:
NTEP CC 11-068, Class III, 5,000 d

Options

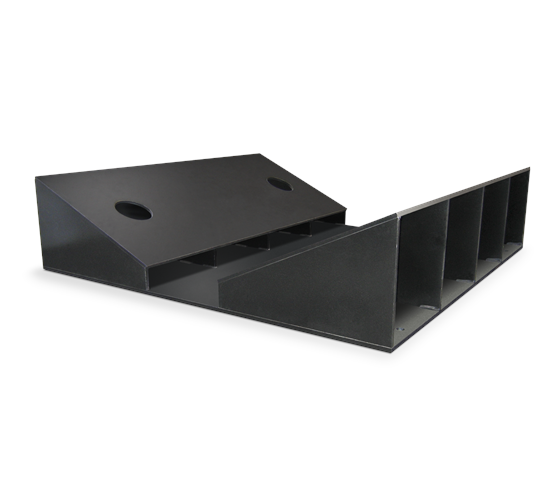

114678 Coil Cradle V-Top 5×5 for use on Roughdeck CS with rated maximum capacity of 80,000lb or less
114684 Coil Cradle V-TOP 6×6 for use on Roughdeck CS with rated maximum capacity of 80,000lb or less

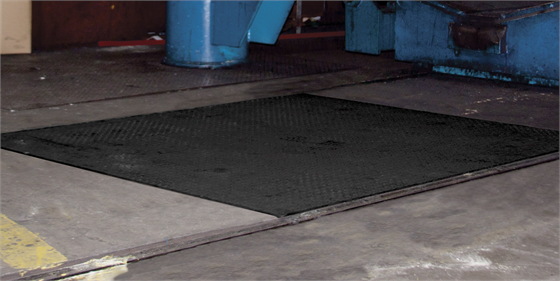

Consult Pit coping

Models

107493 Scale,Coil Roughdeck 5x5CS-40K. Epoxy painted platform, (4) MVS Mounts and load cells 50K, 4 cell junction box, NTEP
107494 Scale,Coil Roughdeck 5x5CS-60K. Epoxy painted platform, (4) MVS Mounts and load cells 50K, 4 cell junction box, NTEP
107495 Scale,Coil Roughdeck 5x5CS-80K. Epoxy painted platform, (4) MVS Mounts and load cells 75K, 4 cell junction box, NTEP
107496 Scale,Coil Roughdeck 6x6CS-40K. Epoxy painted platform, (4) MVS Mounts and load cells 50K, 4 cell junction box, NTEP
107497 Scale,Coil Roughdeck 6x6CS-60K. Epoxy painted platform, (4) MVS Mounts and load cells 50K, 4 cell junction box, NTEP
107498 Scale,Coil Roughdeck 6x6CS-80K. Epoxy painted platform, (4) MVS Mounts and load cells 75K, 4 cell junction box, NTEP
