RoughDeck® EQ Equine Floor Scale and Indicator Package

$0.00

Maintain Equine Health with Reliable Weighing

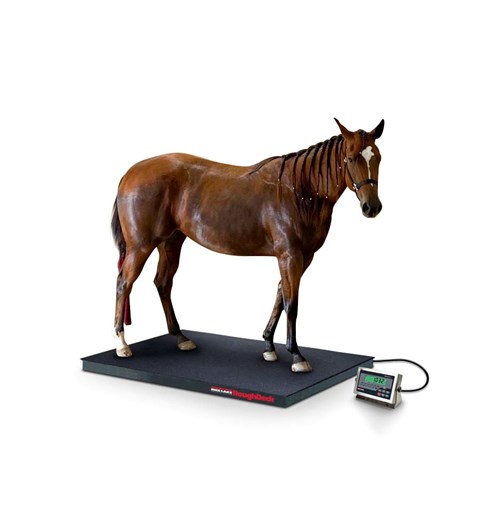

The RoughDeck EQ equine scale is designed specifically for the safe and reliable weighing of horses or other large animals. The heavy-duty removable horse mat provides extra cushion comfort and is noise-reducing, creating a calm weighing environment.

Download product PDF
Category:

Features

  • Package includes 4 ft × 6 ft × 4.25 in floor scale with stall mat, 20ft of SURVIVOR EL147HE hostile environment load cell cable and indicator
  • Mat thickness 0.75 in

Scale

  • Heavy-duty design with structural steel channel frame
  • Stall mat to reduce noise and instill equine comfort
  • 4 adjustable stainless steel SUREFOOT™ support feet
  • Powder-coated black matte finish

Indicator

  • LCD backlit display for a variety of environments
  • Battery backed time and date
  • Communication ports for connecting to a variety of peripherals

Specifications

End Load Capacity:
100% full scale at 2,500 lb

Load Cells:
Model RL32018 alloy steel environmentally sealed IP66

Junction Box:
Side access, TuffSeal JB4SS stainless steel, NEMA Type 4X with a signal card

 Feet:
Stainless steel SUREFOOT, adjustable (+0.25 in or -0.125 in) for leveling the scale

Finish:
Powder coat painted, black matte

Cable Length:
20 ft (6.1m) for connecting scale junction box to indicator

 Threaded Eyebolt:
One lifting hole located in center of scale for easy install (requires 1/2-20NF eyebolt, not included)

Warranty:
Two-year limited

 482 Indicator Specifications

Power:
Line voltages: 100 to 240 VAC
Frequency: 50/60 Hz
DC voltages: n/a

Communication Ports:
Com 1: RS-232 full duplex
Com 2: RS-232 full duplex or 20 mA simplex, continuous
Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity

 Optional Ethernet and USB Board:
USB five-pin header for PC, printer or flash drive
Ethernet TCP/IP, RJ45 jack, server and client ports

Display:
LCD backlit, transmissive/ transflective, 0.8 in (20 mm), six-digit, seven-segment

Annunciators:
Gross, net, center of zero, standstill, lb, kg, tare, preset tare

 Keys/Buttons:
Flat membrane panel, embossed keys, tactile feel

Rating/Material:
NEMA Type 4X/IP66
Stainless steel

Approvals:
NTEP 12-123
Measurement Canada AM-5892C
CE
cULus
