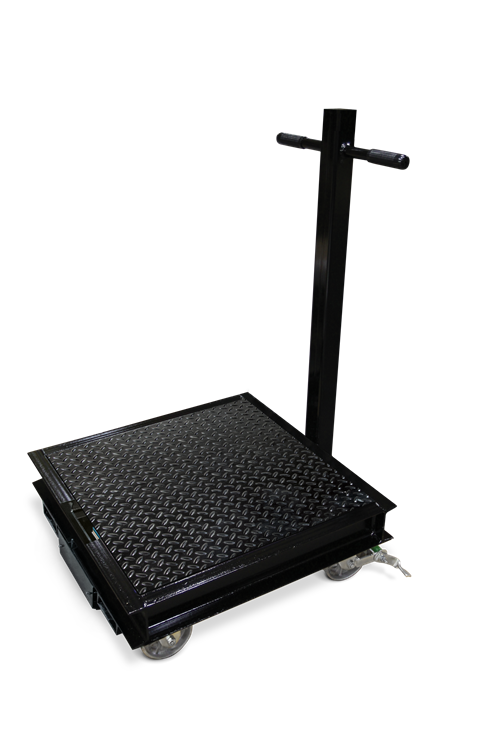

RoughDeck HP Caster SENDit Portability Frames, Non-NTEP

$0.00

Download product PDF
Categories: ,

Features

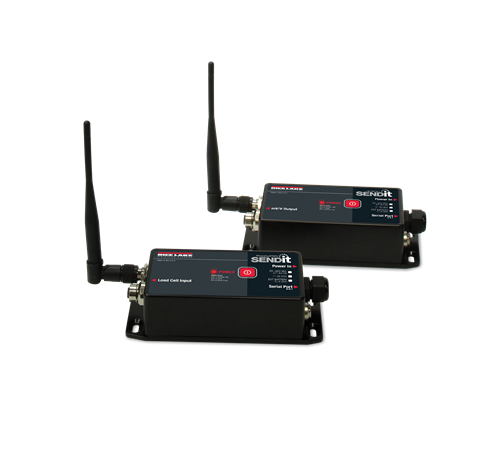

  • Wireless connection from scale to operator display
  • Works with any basic digital weight indicator
  • Excitation to the load cell(s) provided by the transmitter, not the indicator
  • Each transmitter/receiver set is individually paired and will not interfere with another set
  • Transmitter excitation voltage: +4.8 VDC, 16 × 350 ohm or 32 × 700 ohm load cells

Specifications

Scale Size 2.5 × 2.5 ft 3 × 3 ft 4 × 4 ft
A 33.92 in 39.92 in 51.92 in
B 33.92 in 39.92 in 51.92 in
C 30.75 in 36.75 in 48.75 in
D 30.75 in 36.75 in 48.75 in

Options

210902 Caster Portability Frame Roughdeck 2.5 x 2.5 mild steel 1K to 5K, Electronics not included Two rigid forged steel caster on the front, Two swivel forged steel casters with lock on the back, with drawer for SENDit
210903 Caster Portability Frame Roughdeck 3 x 3 mild steel 1K to 5K, Electronics not included Two rigid forged steel caster on the front, Two swivel forged steel casters with lock on the back, with drawer for SENDit
210904 Caster Portability Frame Roughdeck 4 x 4 mild steel 1K to 5K, Electronics not included Two rigid forged steel caster on the front, Two swivel forged steel casters with lock on the back, with drawer for SENDit
210905 Caster Portability Frame Roughdeck 4 x 4 mild steel 10K, Electronics not included Two rigid forged steel caster on the front, Two swivel forged steel casters with lock on the back, with drawer for SENDit
210898 Sendit Wireless Load Cell Interface Kit, non-ntep, customer to supply indicator, works with Portability Frame with drawer
