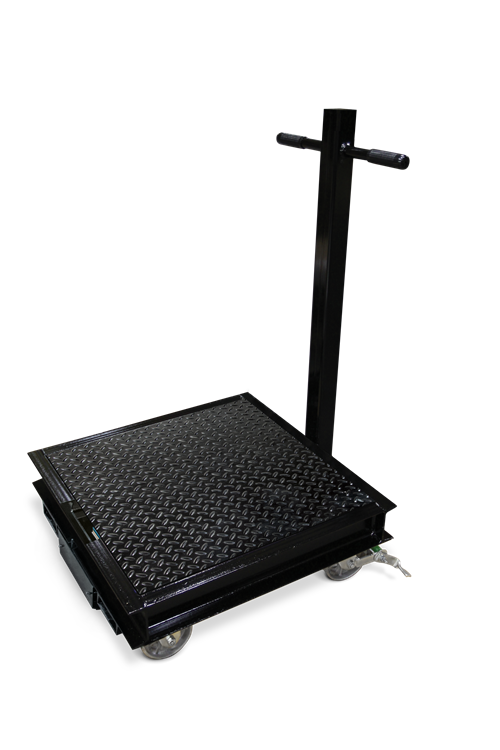

RoughDeck HP Caster SENDit Portability Frames, NTEP

$0.00

Download product PDF
Categories: ,

Features

  • Wireless connection from scale to operator display
  • Excitation to the load cell(s) provided by the transmitter, not the indicator
  • Each transmitter/receiver set is individually paired and will not interfere with another set
  • Transmitter excitation voltage: +4.8 VDC, 16 × 350 ohm or 32 × 700 ohm load cells
  • Estimated battery life of 100 hours
  • Two set-points with red/green display for operator verification
  • Optional audible alarm

Specifications

Scale Size 2.5 × 2.5 ft 3 × 3 ft 4 × 4 ft
A 33.92 in 39.92 in 51.92 in
B 33.92 in 39.92 in 51.92 in
C 30.75 in 36.75 in 48.75 in
D 30.75 in 36.75 in 48.75 in

Options

210902 Caster Portability Frame Roughdeck 2.5 x 2.5 mild steel 1K to 5K, Electronics not included Two rigid forged steel caster on the front, Two swivel forged steel casters with lock on the back, with drawer for SENDit
210903 Caster Portability Frame Roughdeck 3 x 3 mild steel 1K to 5K, Electronics not included Two rigid forged steel caster on the front, Two swivel forged steel casters with lock on the back, with drawer for SENDit
210904 Caster Portability Frame Roughdeck 4 x 4 mild steel 1K to 5K, Electronics not included Two rigid forged steel caster on the front, Two swivel forged steel casters with lock on the back, with drawer for SENDit
210905 Caster Portability Frame Roughdeck 4 x 4 mild steel 10K, Electronics not included Two rigid forged steel caster on the front, Two swivel forged steel casters with lock on the back, with drawer for SENDit

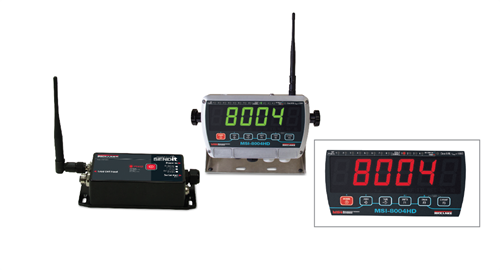

210899 8004HD Display AC, RdGrn Dual Color LED Instant Power-On 85-264VAC and Sendit Wireless Load Cell Interface Kit, NTEP, works with Portability Frame with drawer (NOTE: Display and Sendit are paired at factory)
