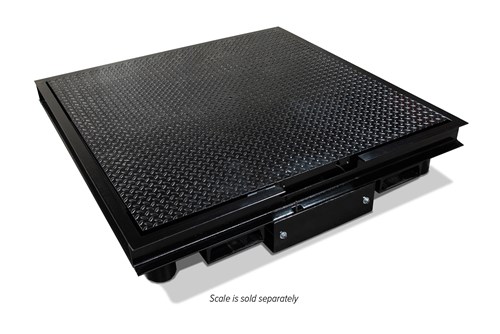

RoughDeck HP Forklift SENDit Portability Frame, NTEP

$0.00

Download product PDF
Categories: ,

Features

  • Wireless connection from scale to operator display
  • Excitation to the load cell(s) provided by the transmitter, not the indicator
  • Each transmitter/receiver set is individually paired and will not interfere with another set
  • Transmitter excitation voltage: +4.8 VDC, 16 × 350 ohm or 32 × 700 ohm load cells
  • Estimated battery life of 100 hours
  • Two setpoints with red/green display for operator verification
  • Optional audible alarm

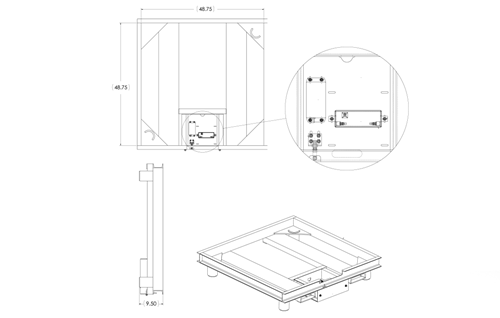

Specifications

Scale Size 4 x 4 ft 5 x 5 ft
A 48.75 in 60.75 in
B 48.75 in 60.75 in
C 9.50 in 9.50 in

Options

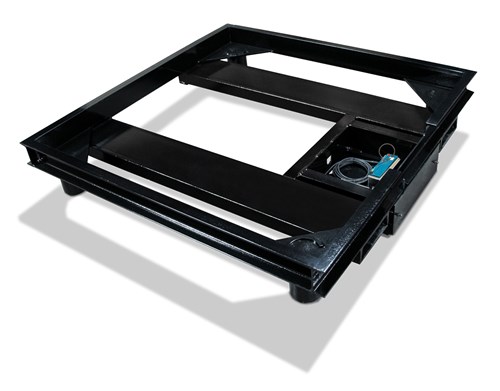

210900 Portability Frame for Roughdeck 4×4 mild steel 1K to 10K, Electronics not included, drawer for SENDit
210901 Portability Frame for Roughdeck 5×5 mild steel 1K to 10K, Electronics not included, drawer for SENDit

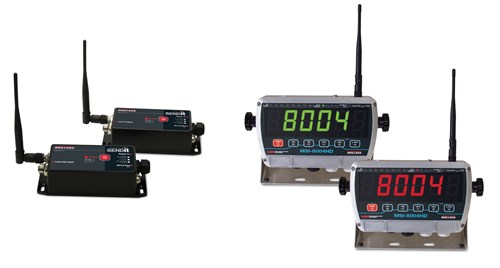

210899 8004HD Display AC, RdGrn Dual Color LED Instant Power-On 85-264VAC and Sendit Wireless Load Cell Interface Kit, NTEP, works with Portability Frame with drawer (NOTE: Display and Sendit are paired at factory)
