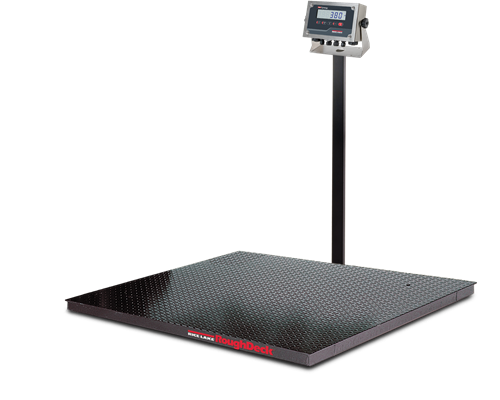

RoughDeck® Rough-n-Ready System, Floor Scale and 380 Indicator

$0.00

The RoughDeck Rough-n-Ready System is a complete floor scale and indicator package. Match the durable design of our 4 x 4-foot RoughDeck floor scale with one of five quality Rice Lake indicators. Each scale and indicator arrives factory calibrated for quick setup. Calibrate and seal the scale for an NTEP Certified system. Mount the indicator remotely or use an optional floor stand. The RoughDeck Rough-n-Ready package is available in 5,000 or 10,000 lb capacities.

Download product PDF
Categories: ,

Features

  • Package includes: RoughDeck HP 4 ft × 4 ft × 3.5 in floor scale, 20 ft of hostile environment load cell cable, quick disconnect and 380 indicator
  • Package is factory-calibrated for 5,000 divisions

Scale

  • Heavy-duty design with structural steel under support
  • Four NTEP certified alloy steel shear beam load cells
  • Side-access JB4SS TuffSeal® junction box

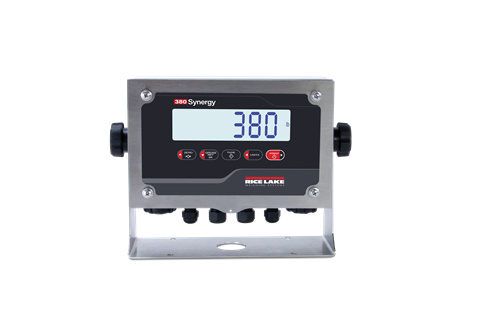

Indicator

  • LCD display
  • Communication ports
  • Stainless steel enclosure

Specifications

End Load Capacity:
100% full scale at 5,000 lb
80% full scale at 10,000 lb

Cable Length:
20 ft (6.1 m) for connecting junction box to indicator

 Threaded Eyebolt:
Hole (1/2-20 NF) located in center of deck for easy lifting

Warranty (limited):
Weldment: Five-years
Load cells: Two-years
All other components: One-year

 Approvals:
NTEP 92-001, Class III 5,000d
Measurement Canada AM-4827, Class III 5,000d
Power:
Batteries: 4 alkaline C-cell (not included)
Optional: 115/230 VAC to 12 VDC adapter

Battery Life:
45 hours, continuous use on alkaline batteries with four 350 ohm load cells, low backlight

 Communication Ports:
One full-duplex RS-232
One USB 2.0 (device)

Display:
Six 1 in (25 mm) tall, LCD digits

Annunciators:
g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net



 Keys/Buttons:
5 tactile buttons

Rating/Material:
Enclosure: IP66, 304 stainless steel

Approvals:
NTEP 21-051
Measurement Canada AM-6184
CE Marked
cULus Listed

Options

208558 Scale PKG, Rough-n-Ready 4×4-5k Roughdeck HP/380 Synergy Factory Calibrated
208585 Scale PKG, Rough-n-Ready 4×4-10k Roughdeck HP/380 Synergy Factory Calibrated
