SB600 6-in LED

$0.00

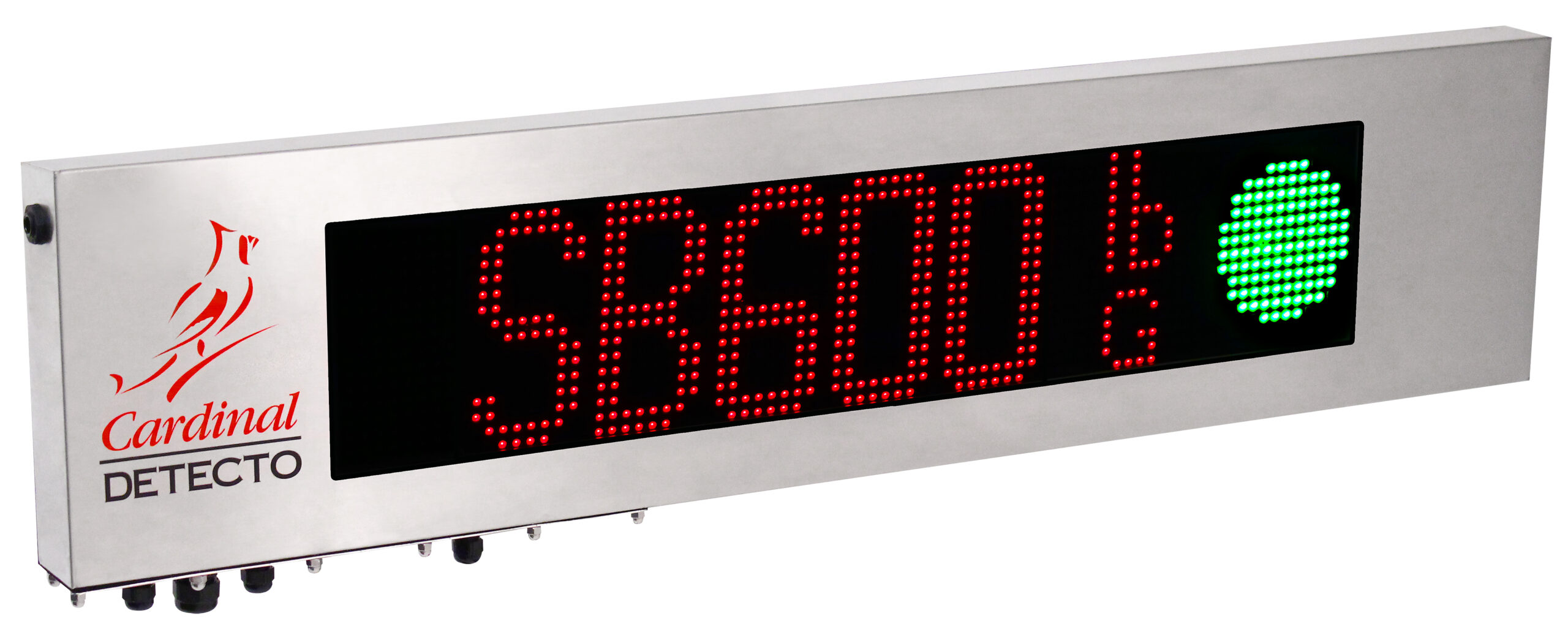

Cardinal Scale’s model SB600 remote display features a high-visibility, full-color graphics display with double-row LEDs in large 6-inch/15.25-cm high characters. The durable IP65-rated stainless steel enclosure is weatherproof for use in a wide variety of environments. The SB600 offers 1,280 RGB high-intensity LEDs for maximum visibility in all lighting conditions and integrated 6-inch/15.25-cm high red/green traffic light standard for directing vehicles on and off the scale. Multiple scales plus total weight readouts can all be displayed simultaneously. The SB600 can plug and play with virtually any weight indicator and it offers optional SnapStream wireless connectivity with Cardinal Scale weight indicators. The onboard intensity light sensor automatically adjusts to ambient light with 10 levels of brightness (total darkness to direct sunlight). The SB600 comes with a two-piece bracket: a mounting bracket attached to the display and a pole/wall bracket that it locks into. The convenient bottom access panel with slide-out controller board provides easy access to internal wiring.

Download product PDF
Category:

Features

  • Remote display with 6-inch/15.25-cm high double-row LEDs
  • Full-color RGB graphics LED readouts
  • Weatherproof IP65-rated stainless steel

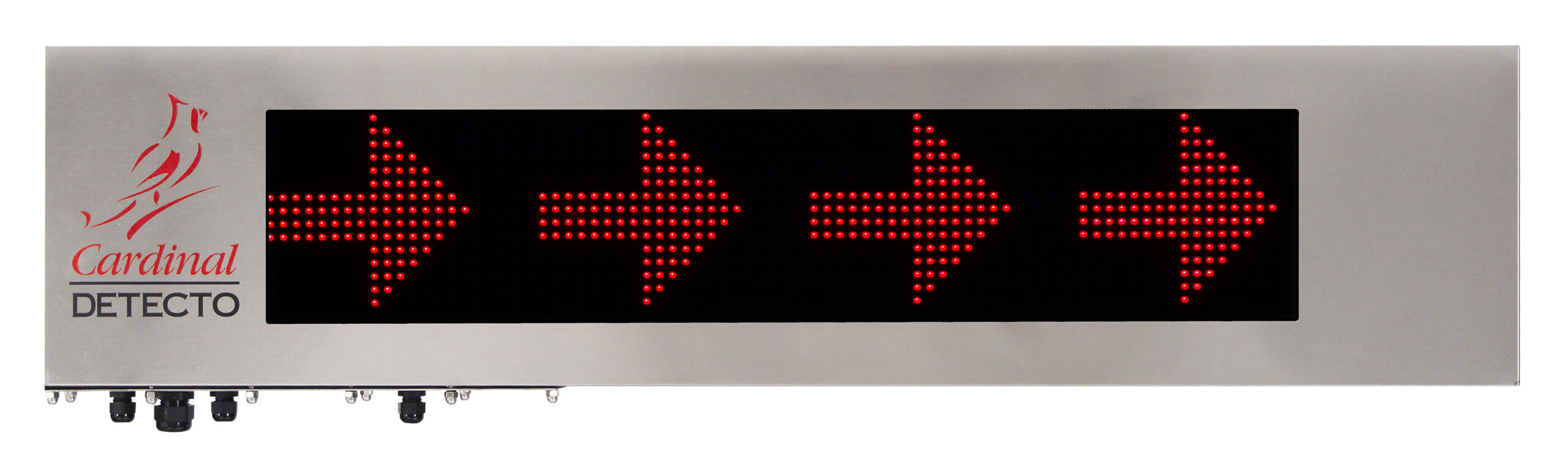

  • Messaging in large and small fonts standard
  • Bright and vivid display even in direct sunlight

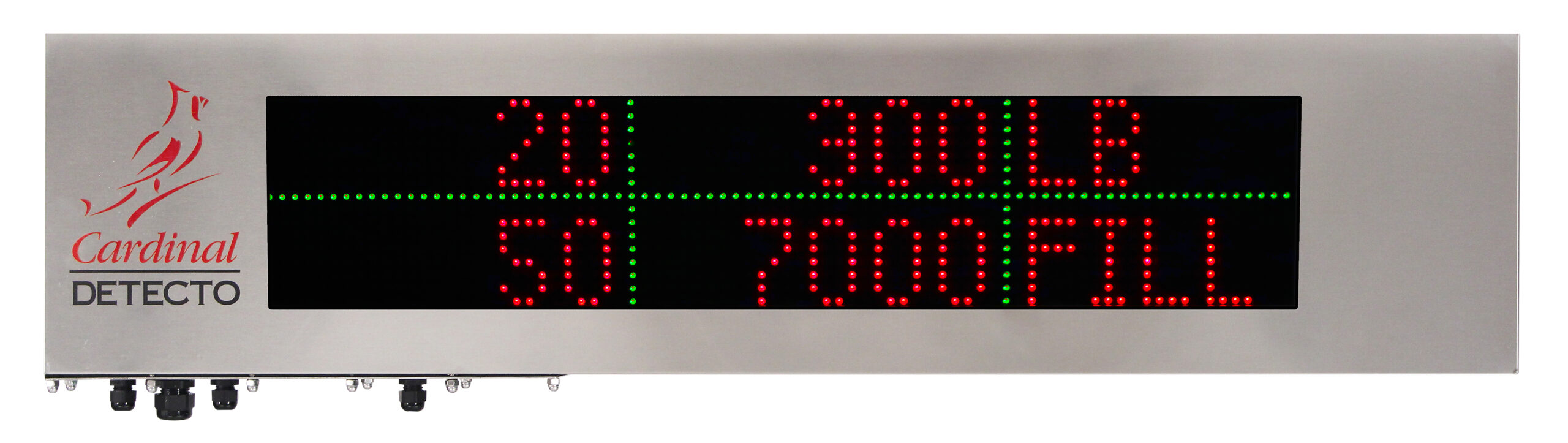

  • Multiple scales plus total weight readouts can all be displayed simultaneously (optional)
  • 250-ft / 76-meter viewing range
  • Auto-learn feature (automatically selects input protocol)
  • Daisy-chain multiple units together for viewing multiple axles and total weight simultaneously
  • RS232, RS422/485, and 20mA current loop standard connectivity or optional SnapStream wireless
  • 140-degree viewing angle
  • Large 6-inch/15.25-cm high LED characters
  • Mirror image mode for viewing weights in vehicle rearview mirrors
  • Traffic light relay timer
  • Field upgradeable: bootloader allows the firmware to be upgraded in the field
  • Displays 6 digits (999,999 or -99,999)
  • 1,280 RGB high-intensity LEDs for maximum visibility in all lighting conditions
  • Plug and play with virtually any digital weight indicator

Specifications

Model: SB600
Character Height: 6 in / 15.25 cm
Display Type: Graphical, 256 full-color RGB with high-performance LED lamps
Number of Pixels: 80x 16 for 1,280 LEDs with built-in large and small fonts
Annunciators: Units (lb, kg, T, t) and Mode (G, N)
Ambient Light Levels: Total darkness to direct sunlight
Display Capacity: -99999 to 999999
Viewing Range: Up to 250 ft / 76 m
Viewing Angle: 140 degrees
Data Input: RS232, RS422/485, 20mA Current Loop (active or passive), SnapStream wireless
Enclosure Type: Weatherproof IP65-rated stainless steel
Power Requirements: 90 to 130 VAC (50/60 Hz), 100 watts maximum
Ambient Temperature: -15 to +130 °F / -26 to +54 °C
Ambient Humidity: 5 to 100 percent
Product Dimensions: 43 in W x 10 in H x 4.75 in D / 109 cm W x 25 cm H x 12 cm D
Net Weight: 26 lb / 12 kg
Shipping Dimensions: 48 in W x 18 in H x 7 in D / 122 cm W x 46 cm H x 18 cm D
Shipping Weight: 33 lb / 15 kg
Country of Origin: USA

Options

6021-6506 U-BOLT, CLAMPING, 3/8-16X 4 5/8 ID Z/P Call For Pricing
POLE-120 10 ft. High Mounting Pole, 4.5-inch OD Post with Base Plate and U-Bolts Call For Pricing
POLE-144 12 ft. High Mounting Pole, 4.5-inch OD Post with Base Plate and U-Bolts Call For Pricing
SB600-HOOD Hood, SB600 Remote Display Call For Pricing

Models

SB600 Remote Display, 6″ LED, 6 Digit, Numeric, Stainless Steel Call For Pricing
SB600EU Remote Display, 6″ LED, 6 Digit, Numeric, Stainless Steel, EU Plug Call For Pricing
SB600UK Remote Display, 6″ LED, 6 Digit, Numeric, Stainless Steel, UK Plug Call For Pricing
SB600RI Remote Display, 6″ LED, 6 Digit, Numeric, Stainless Steel, External Traffic Light Control Call For Pricing
