Specifications
Power:
12/24 VDC
Power Consumption:
70 mA min ? 100 mA max
Excitation Voltage:
5VDC, 120 mA, 8 x 350 ?
Analog Signal Input Range:
? 39 mV
Analog Signal Sensitivity:
0.03 ?V/graduation minimum
0.3 ?V/graduation recommended
A/D Sample Rate:
Four channel A/D 24-bit sigma-delta conversion, up to 200 conv. /sec. auto select
Resolution:
Internal resolution: 1.5 million counts
Weight display resolution: 800,000
Digital Inputs/Outputs:
Two inputs: 12/24 VDC
Two outputs:150 mA 48 VAC/ 150 mA 60 VDC
Serial Port:
1-RS-485, 1-RS-232
Analog Output (if equipped):
Opt isolated, 16-bit
0-20mA, 4-20mA (Maximum 350 ohm)
0-5VDC, 0-10VDC (Minimum 10,000 ohm)
Display:
Six-digit (13 mm), red LED
Annunciators:
Net, center of zero, stability
Keyboard:
Five key, membrane panel, tactile feel
Zero (Down), Tare (Up), Mode (Right), Print (Enter), C (On/Off)
Temperature & Humidity:
Working temperature: 5? F to 104? F (-15? C to 40? C)
Humidity: 85% non-condensing

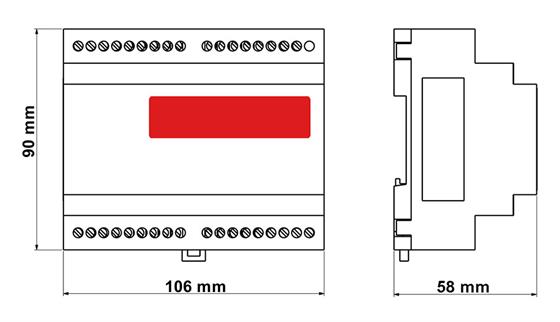

Dimensions (W x H x D):
4.17 in x 3.54 in x 2.28 in (106 mm x 90 mm x 58 mm)
Weight:
1 lb (0.5 kg)
Rating/Material:
NEMA Type 1 plastic pluggable connectors
Warranty:
One-year limited warranty
