Specifications
Power:
Input: 12 -24 VDC
Power consumption: 5 watts
Excitation Voltage:
5VDC, 120mA, 8 x 350?
Analog Signal Input Range:
+/- 39mV
Analog Signal Sensitivity:
0.1 ?V/graduation minimum
1.0 ?V/graduation recommended
A/D Sample Rate:
300 Hz
Resolution:
Internal resolution: 16 million counts
Weight display resolution: 999,999
System linearity: ? 0.01% full scale
Digital Inputs/Outputs:?
2 inputs 5-24VDC, 3 outputs 115VAC/150mA N.O. or N.C. (dry contact)
Serial Port:
RS-485 or RS-232 simplex supports up to 115,200 bps
Analog Output:
Optoisolated, 16 bit
0-20mA, 4-20mA (max 300 ohm)
0-10VDC, 0-5VDC (min 10k ohm)

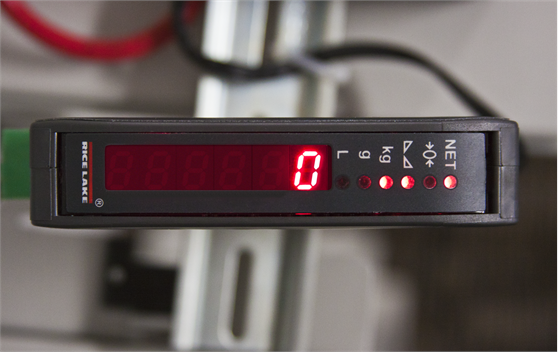

Display:
0.3 in (8 mm), six digit, seven segment LED
Annunciators: Net, center of zero, stability, KG, G, LB
Keyboard:?
4-key membrane panel, tactile feel
Zero, Tare, Print, Menu, Escape, Left & Up Navigation, Enter
Operating Temperature & Humidity:
Working Temperature: -4?F to 140?F (-20?C to 60?C)
Humidity: 85% non-condensing
Dimensions (W x H x D):

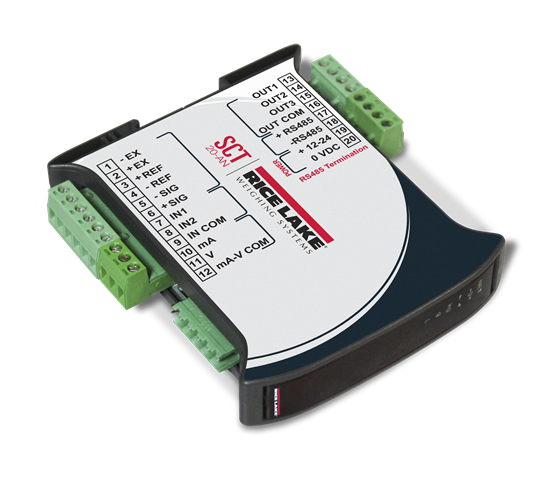

SCT converter: 0.98 x 4.52 x 4.72 in (25 x 115 x 120 mm)
Weight:
1 lb (0.5 kg)
Rating/Material:
SCT enclosure: NEMA Type 1 plastic pluggable connectors
Warranty:
One-year limited warranty
Options
131128 Lit,Manual SCT 20 Series SCT Weight Transmitter List price: $25.00
