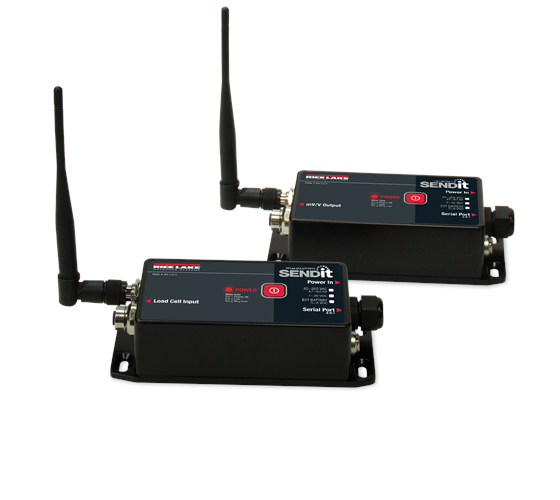

SendIt Wireless Load Cell Interface

$0.00

SendIt wireless load cell interface reads the signal from a load cell and sends that data wirelessly to a receiving indicator, eliminating the need for traditional wire runs.

Download product PDF
Category:

Features

  • Works with any basic digital weight indicator
  • Excitation to load cell(s) provided by the transmitter, not the indicator
  • Each transmitter/receiver set is individually paired and will not interfere with another set
  • Auto-off mode:?Selectable for 15, 30, 45, 60 minutes or off
  • Auto-sleep mode: Power down during non-use, power up with weight change or key press
  • RS-232 cable included with transmitter and paired set

Specifications

Power:
5-6 VDC

Excitation Voltage:
Transmitter: +4.8 VDC, 16x 350? or 32x 700? load cells

Standard Antenna:
1/2 wave 2dBi, articulated

Frequency:
Direct sequence spread spectrum at 2.4 GHz, 802.15.4 license free

Effective Range:
100 ft or more

Circuit Protection:
RFI, EMI, ESD protection

Serial Port:
Full duplex RS-232

Operating Temperature:
0?F to 185?F (-18?C to 85?C)

Enclosure:
NEMA Type4 (IP66), aluminum black powder coated (excludes wall cube model)

Warranty:
Two-year limited warranty

Options

Part #162172 Product DescriptionBattery Charger 6V SLA 7000/7001
Part #162173 Product DescriptionBattery 6V SLA 7000/7001
Part #162175 Product DescriptionEnclosure Battery 6V SLA 7000/7001
Part #145548 Product DescriptionCORDSET IP68 4 PIN MALE SHIELDED 4 METER
Part #150965 Product DescriptionCABLE ASSY,SERIAL I/O DTE D9 PINS 8000
Part #160109 Product DescriptionPWR ADAPTER 12W 6VDC WALL MOUNT. UNIVERSAL INPUT 90-264VAC. 2.1mm COAX POWER PLUG.
Part #162177 Product DescriptionCordset IP68 4 Pin Male Shielded 2 Meter (6.56 feet)
Part #162184 Product DescriptionCONN,M12 4 Pin Male Field Wireable 4-6mm Cable OD Straight
Part #162185 Product DescriptionCONN,M12 4 Pin Male Field Wireable 6-8mm OD Straight IP 67
Part #162186 Product DescriptionCONN,M12 4 Pin Male Field Wireable 4-6mm OD Right Angle
Part #162187 Product DescriptionCONN,M12 4 Pin Male Field Wireable 6-8mm OD Right Angle
Part #162178 Product DescriptionOption Kit Remote Antenna 7000/7001 (Uses Standard Antenna)
Part #139309 Product DescriptionANTENNA KIT LONG RANGE OMNI W/3M COAX
Part #139310 Product DescriptionANTENNA KIT CORNER REFLECTOR 9DBI W/3M COAX
Part #139311 Product DescriptionANTENNA KIT CORNER REFLECTOR 12dBi W/3m COAX
Part #139312 Product DescriptionANTENNA KIT YAGI 15DBI W/3M COAX
Part #150964 Product DescriptionCABLE ASSY,SERIAL I/O DCE D9 SOCKETS 8000

Models

Paired Set: 5-6 VDC Power Input

Part #?165312 Product DescriptionSendIt System Pair RF Matched pair, 1 Load Transmitter, 1 Load Receiver 5-6.5VDC Input

Receivers: 5-6 VDC Power Input

Part #?160338 Product DescriptionSendit Receiver 5-6VDC

Transmitters: 5-6 VDC Power Input

Part #?160331 Product DescriptionSENDIT TRANSMITTER 5-6VDC
