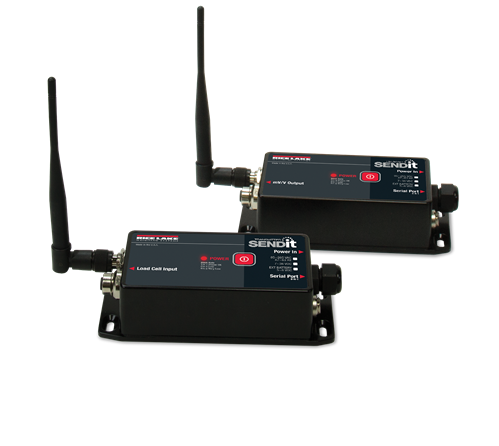

SendIt Wireless Load Cell Interface System

$0.00

Download product PDF
Category:

Features

  • Works with any basic digital weight indicator
  • Excitation to load cell(s) provided by the transmitter, not the indicator
  • Each transmitter/receiver set is individually paired and will not interfere with another set
  • RS-232 cable included with transmitter and paired set

Specifications

Power:
5 to 6 VDCExcitation Voltage:
Transmitter: +4.8 VDC, 16 × 350 ohm or 32 × 700 ohm load cells

Standard Antenna:
1/2 wave 2dBi, articulated

 Frequency:
Direct sequence spread spectrum at 2.4 GHz, 802.15.4 license freeEffective Range:
Typically 100 ft – 300 ft
For longer range, consult factory

Circuit Protection:
RFI, EMI, ESD protection

Communication  Ports
Full duplex RS-232

 Temperature Range:
-40 °F to 185 °F (-40 °C to 85 °C)Enclosure:
NEMA Type4 (IP66), aluminum black powder coated (excludes wall cube model)

Warranty:
Two-year limited

Options

160331 SENDIT TRANSMITTER 5-6VDC
160338 Sendit Receiver 5-6VDC
165312 SendIt System Pair RF Matched pair, 1 Load Transmitter, 1 Load Receiver 5-6.5VDC Input



162172 Battery Charger 6V SLA 7000/7001
162173 Battery 6V SLA 7000/7001
162175 Enclosure Battery 6V SLA 7000/7001
145548 CORDSET IP68 4 PIN MALE SHIELDED 4 METER
150964 CABLE ASSY,SERIAL I/O DCE D9 SOCKETS 8000
150965 CABLE ASSY,SERIAL I/O DTE D9 PINS 8000
160109 Charger, Power Adapter, 12W 6VDC, Wall Mount, Universal Input 90-264VAC, 2.1mm Coax Power Plug
162177 Cordset IP68 4 Pin Male Shielded 2 Meter (6.56 feet)
162184 CONN,M12 4 Pin Male Field Wireable 4-6mm Cable OD Straight
162185 CONN,M12 4 Pin Male Field Wireable 6-8mm OD Straight IP 67
162186 CONN,M12 4 Pin Male Field Wireable 4-6mm OD Right Angle
162187 CONN,M12 4 Pin Male Field Wireable 6-8mm OD Right Angle
162178 Option Kit Remote Antenna 7000/7001 (Uses Standard Antenna)
139309 ANTENNA KIT LONG RANGE OMNI W/3M COAX
139310 ANTENNA KIT CORNER REFLECTOR 9DBI W/3M COAX
139311 ANTENNA KIT CORNER REFLECTOR 12dBi W/3m COAX
139312 ANTENNA KIT YAGI 15DBI W/3M COAX
