solo Digital Eye-Level Physician Scale

$0.00

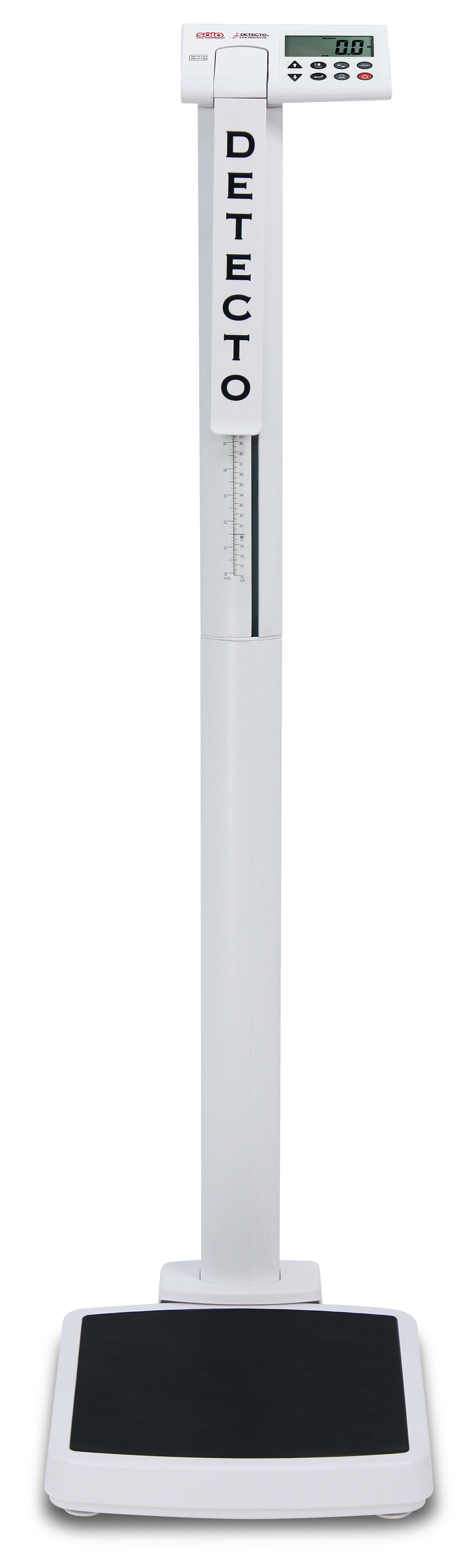

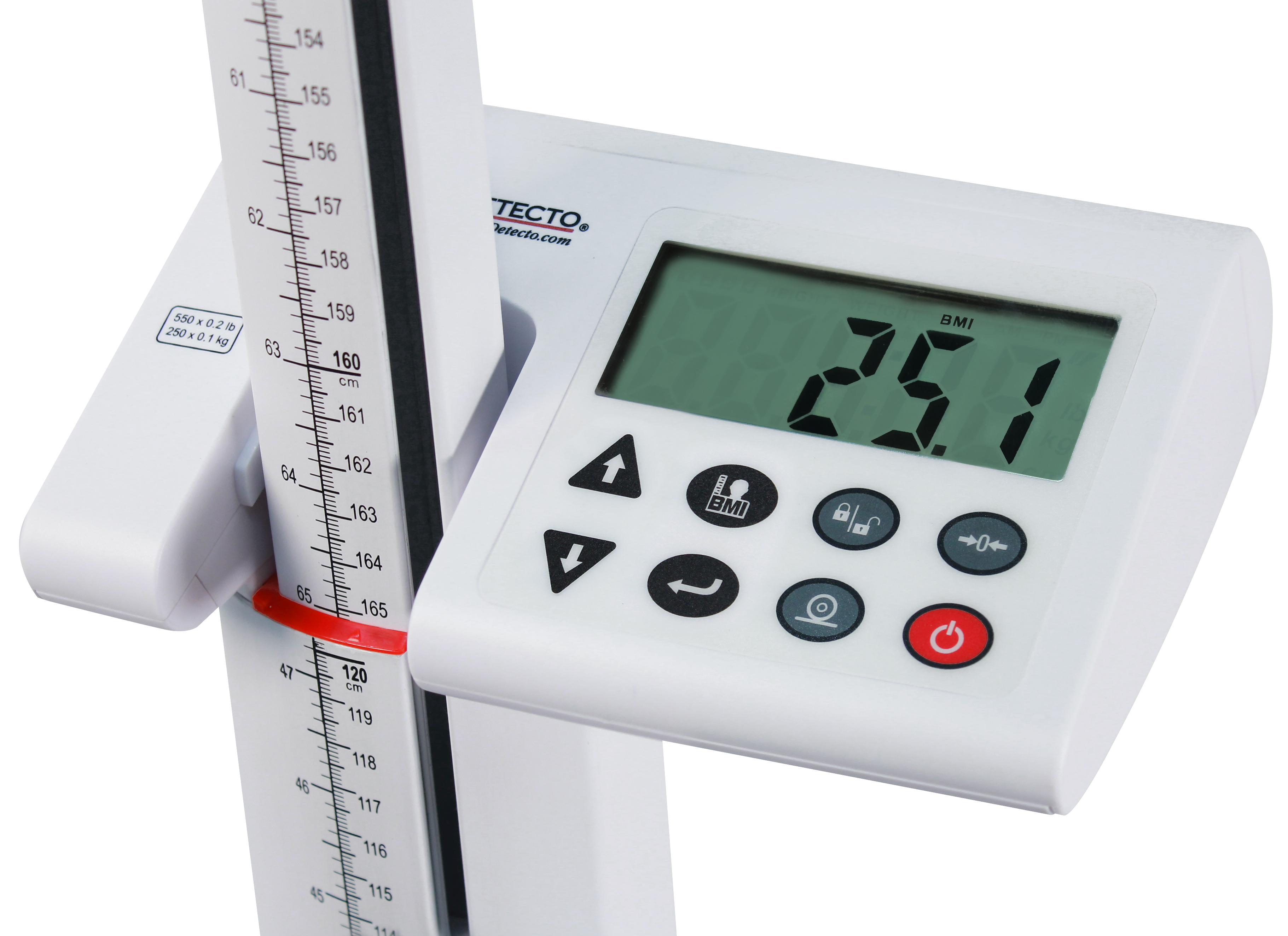

DETECTO?s solo eye-level clinical scale is the most economical, high-quality digital physician scale with height rod available. The solo scale features 550 lb x 0.2 lb / 250 kg x 0.1 kg capacity, 14 in W x 15 in D x 2.4 in H low-profile platform, inline mechanical height rod (measures 30 in to 84.5 in / 76 cm to 214.5 cm), eye-level weight display and column, one-inch-high LCD readouts, Body Mass Index calculation, integral wheels for mobility, one RS232 serial port, and convenient audible beep confirmation. The solo indicator features 8 simple buttons that are easily identifiable in any language. The solo is powered by 6 AA batteries, which are included, or an optional AC adapter.

Download product PDF
Categories: ,

Features

  • 1 in/25 mm high LCD
  • 1 RS232 Serial Port
  • 14 in W x 15 in D x 2.4 in H Low-Profile Platform
  • 550 lb x 0.2 lb / 250 kg x 0.1 kg Capacity
  • 6 AA Batteries Included
  • BMI Calculation
  • EMR/EHR Ready
  • Eye-Level Weight Display Convenience

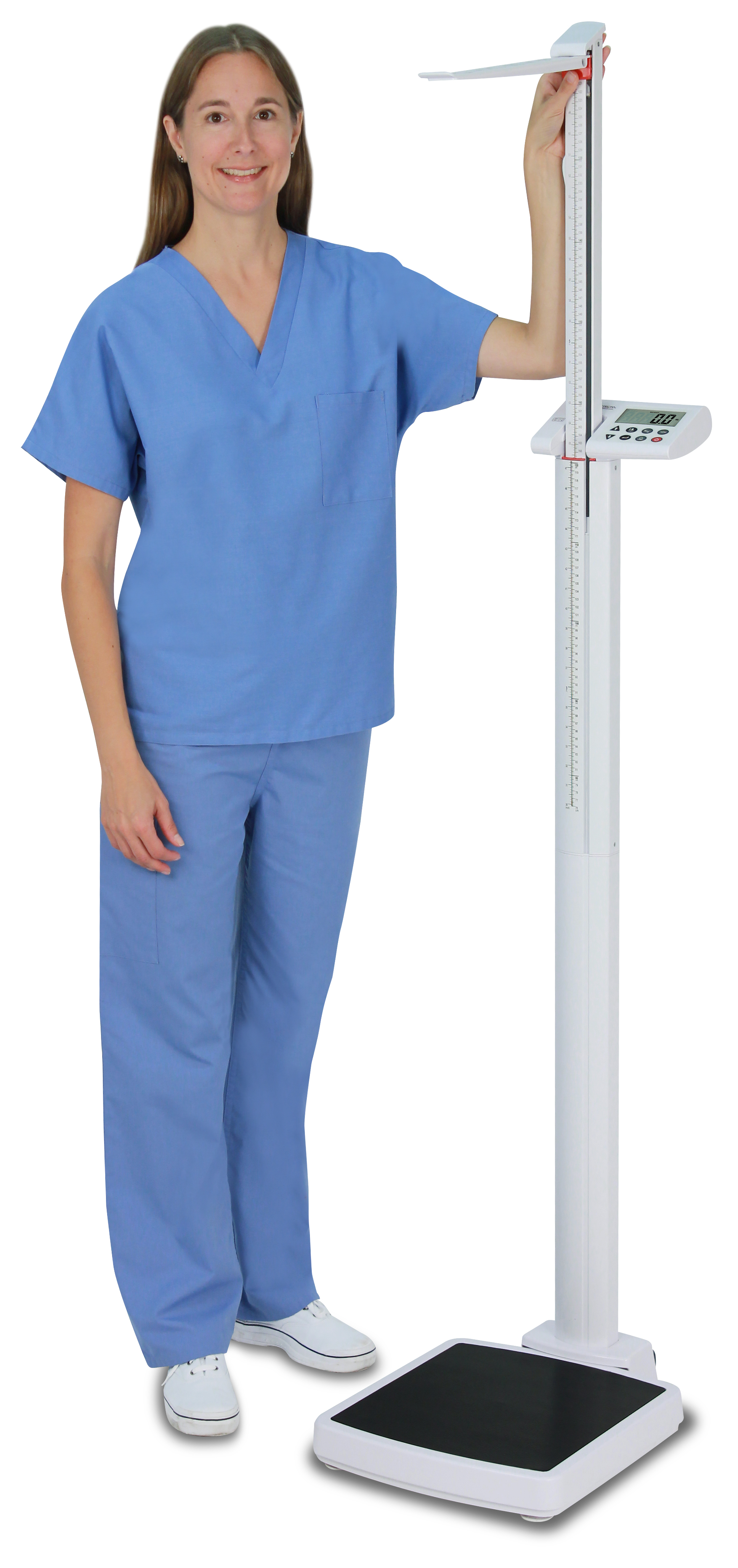

  • Inline Mechanical Height Rod
  • Integral Wheels Ease Transport
  • Optional AC Adapter (PD-AC)
  • Rock-solid Stable Column Aluminum White Powder Coated

Specifications

Model: solo
Capacity: 550 lb x 0.2 lb / 250 kg x 0.1 kg

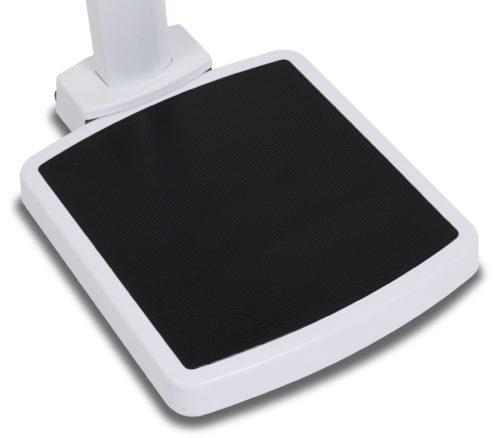

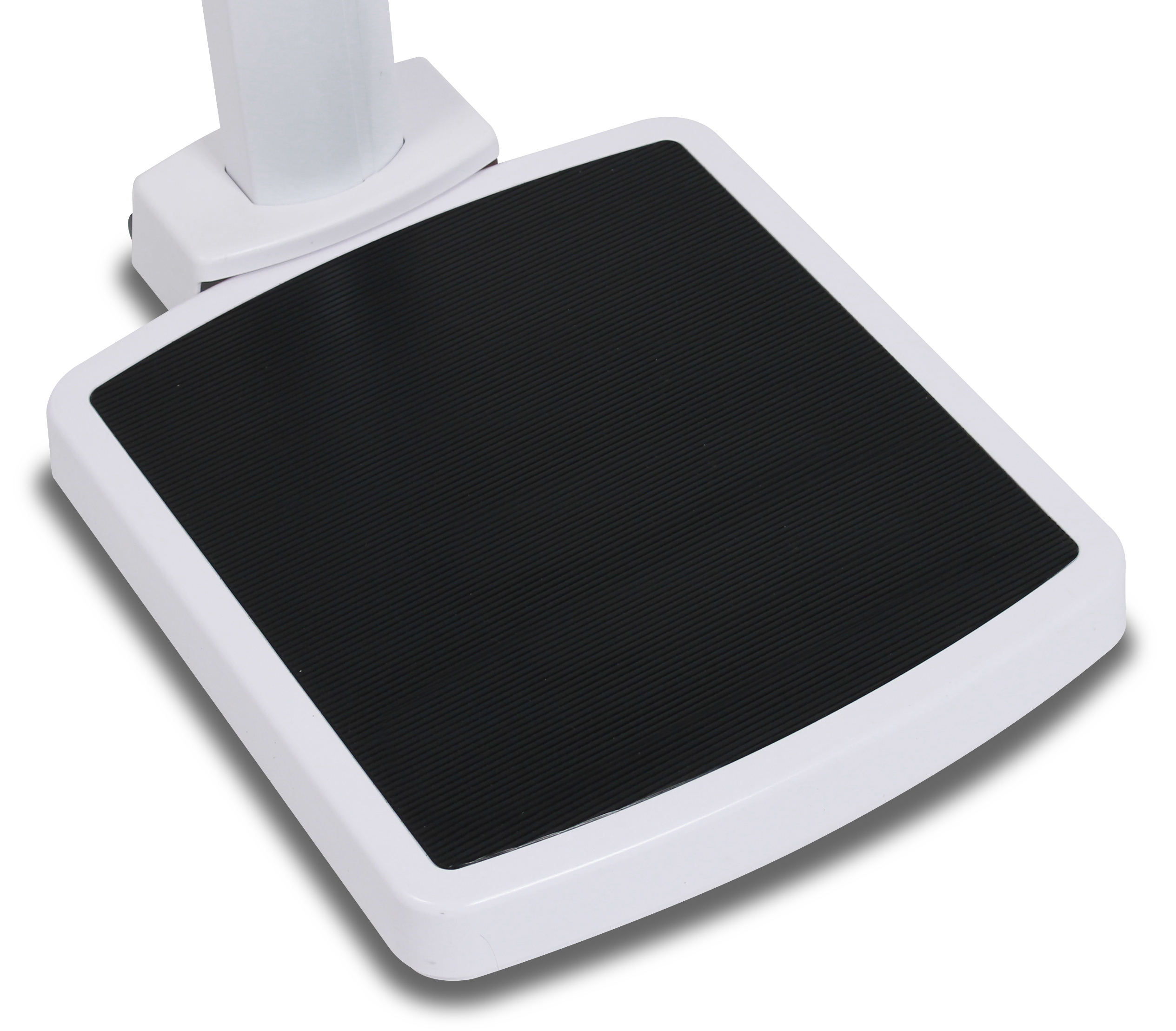

Platform Size: 14 in W x 15 in D x 2.4 in H / 36 cm W x 38 cm D x 6 cm H
Weight Units: Pounds or Kilograms (selectable upon initialization at start-up; changeable through Settings menu)

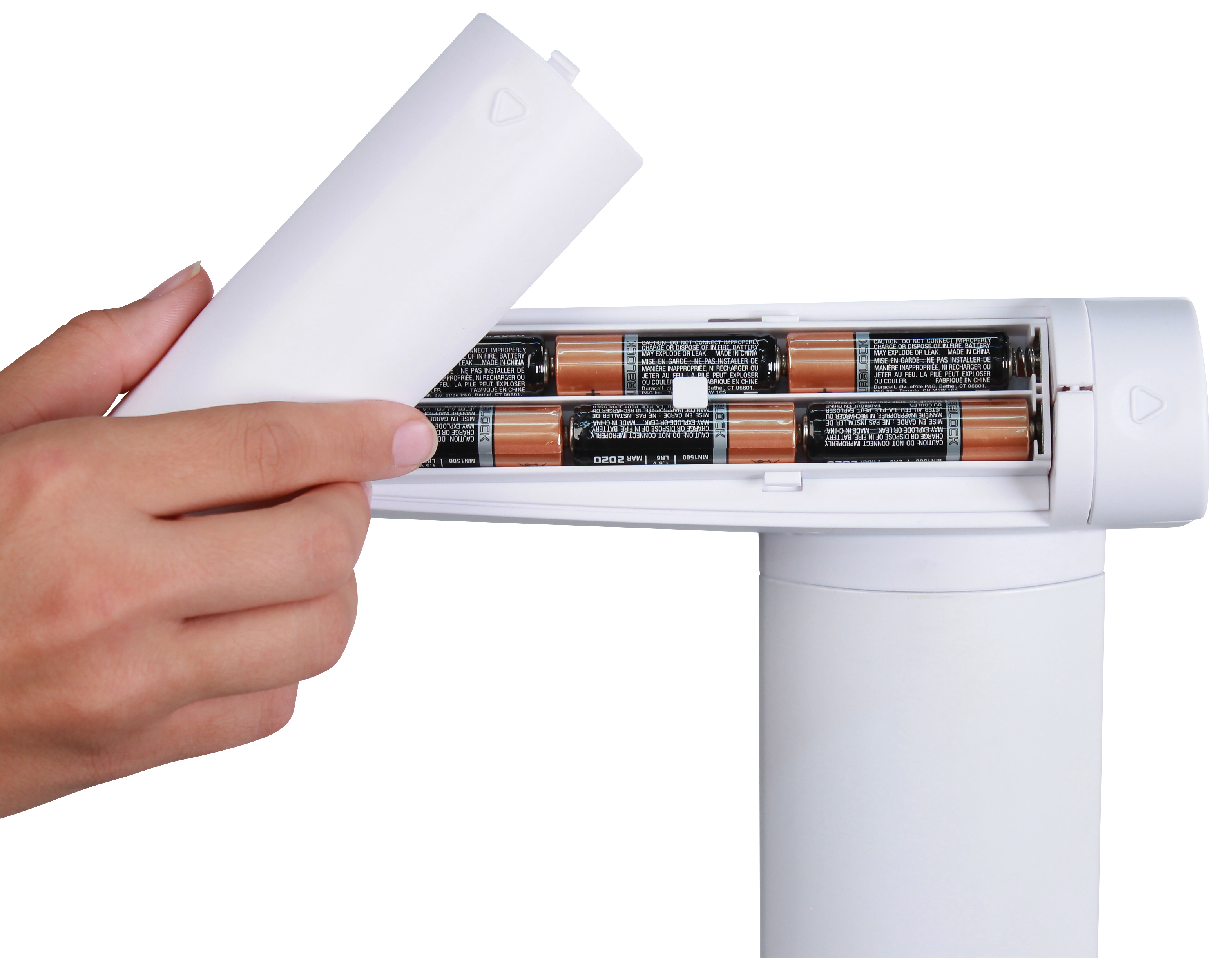

Power: Six (6) AA size Alkaline batteries (included) OR an optional medical device 9V AC/DC wall plug-in adapter (Detecto part number PD-AC).

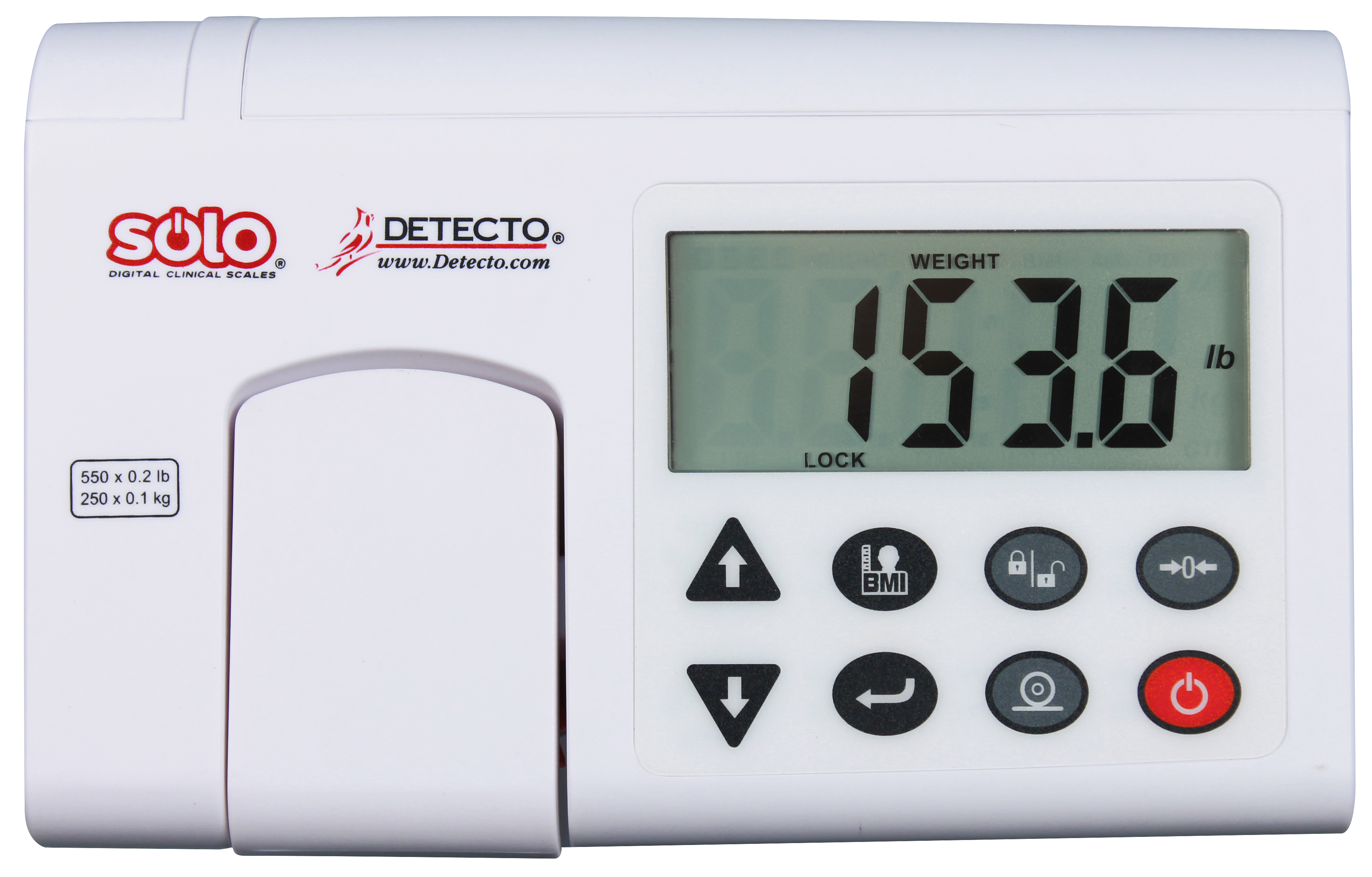

Display: Five-digit, seven-segment, 1.0-inch (25-mm) high LCD digits
Operating Temperature: 50 to 104 ?F / +10 to +40 ?C
Function Keys: ON/OFF, PRINT, ENTER, UP ARROW, DOWN ARROW, BMI HEIGHT, LOCK/RELEASE, ZERO
Annunciators: ZERO, LOCK, STA, HOLD, LB, KG, CM, FT/IN, HEIGHT, WEIGHT, BMI, AM, PM
Scale Dimensions: .3 cm W x 49.5 cm D x 132.1 cm H
Interface: Port, 9-Pin (DB-9), Baud Rate 9600

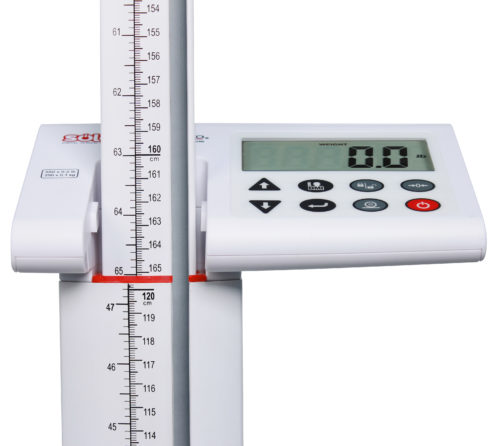

Height Rod: Mechanical included standard, inline
Height Rod Units: Inches or Centimeters
Height Rod Range: 0 in to 84.5 in / 76 cm to 214.5 cm
Manual Input Height: 0.5 in / 60.0 cm – 240.0 cm by 1cm
Minimum Weighing: 11 lb / 5 kg

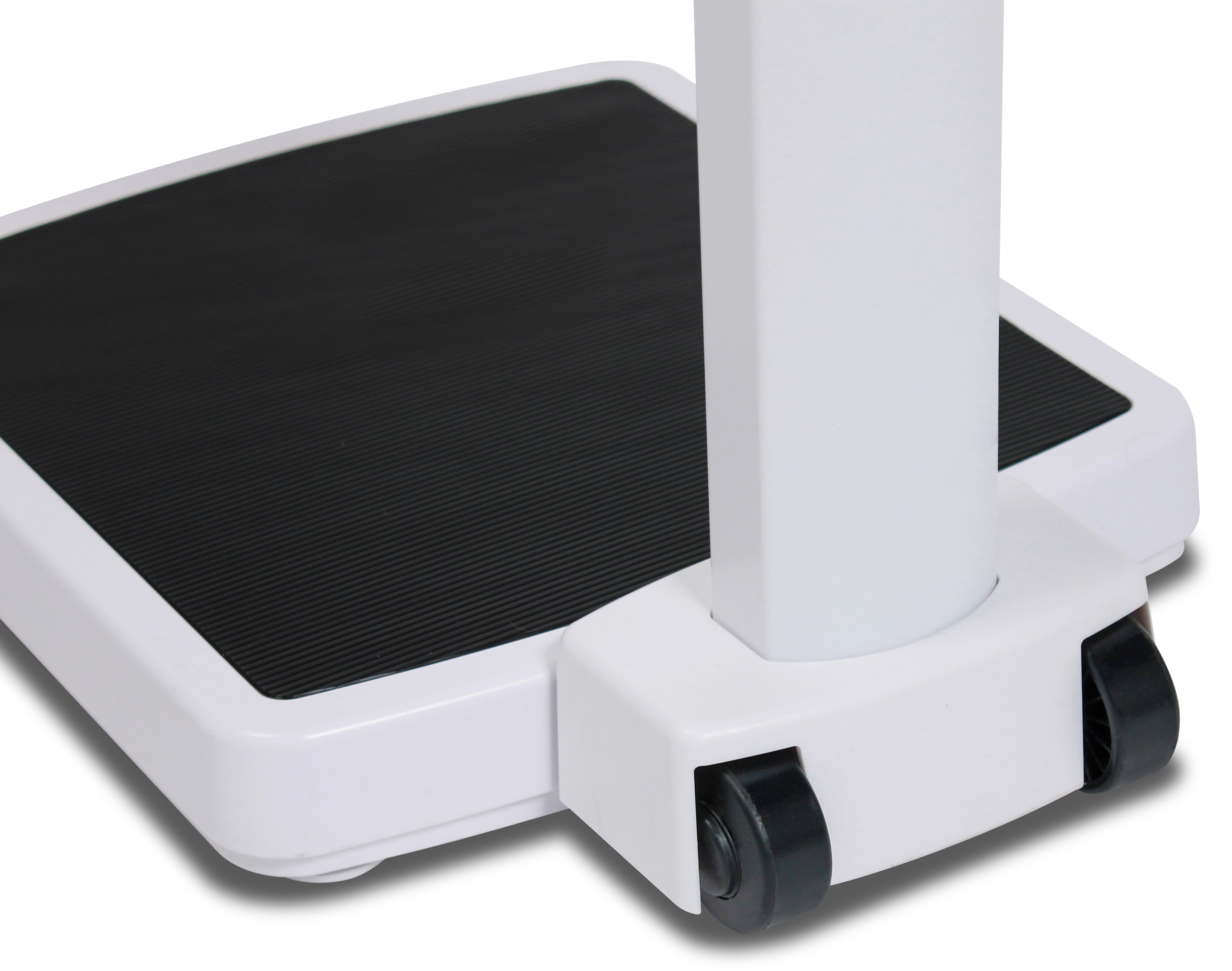

Wheels: (2) wheels for ease of movement
Selectable Auto Shut-Off: Up to 9 Minutes
Construction: base ? white ABS; mat ? black PVC
Product Weight: 17.7 lb / 7.7 kg
Shipping Weight: 25 lb / 11.3 kg
Package Dimensions: H / 76 cm W x 51 cm D x 28 cm H
UPC Code: 809161197709

Options

PD-AC AC Adapter, Pro Doc / SOLO Series Scales

Models

SOLO solo Digital Clinical Scale, Mechanical Height Rod, 550 lb x 0.2 lb / 250 kg x 0.1 kg
