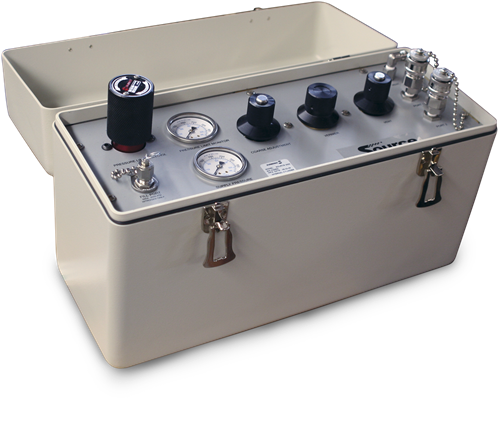

Source 3000 Portable Pneumatic Pressure Source

$0.00

A quick, accurate and portable pneumatic pressure source, the new Source 3000 is designed for extended use wherever your job takes you.

Fully pneumatic, the Source 3000 offers a clean, dry pressure source up to 3,000 psi. It is equipped with a large-capacity nitrogen cylinder so you won’t run out in the middle of a job, and eliminates the inconvenience and physical stress of hand pumps. It has two ports for connecting to a measuring device and virtually any electronic calibrator. For added convenience, the removable cover allows the Source 3000 pneumatic pressure source to be positioned at different angles for easy operation in tight spaces.

Perfect for use in a variety of environments, the Source 3000 pneumatic pressure source delivers reliable, high-accuracy performance. This unique device incorporates a precision pressure vernier that allows you to dial in exact pressure readings, eliminating the risk of costly damage from overshoot. It’s housed in an aluminum carrying case that provides lightweight portability as well as protection in industrial environments.

The Source 3000 pneumatic pressure source…providing a quick, convenient and lasting pressure source wherever you need it.

Download product PDF
Categories: ,

Features

  • Self-contained nitrogen cylinder
  • “Overpressure protection”Condec REG 3000 regulator limits pressure to costly units under test
  • Charge your internal nitrogen cylinder to 3000 psi with provided adapter fitting
  • Two output (test) ports, for connecting to Device-Under-Test as well as a precision calibration standard (works with all major name brand pressure calibrators, digital gauges or indicators)
  • Precisely dial into required pressures with patented valve assembly
  • Aluminum carrying case
  • Front panel gauges inform operator of internal cylinder pressure level
  • Different technicians can operate the system and get identical results…every time
  • Pneumatic only – no hydraulics or distilled water messes

Applications

  • Works with all major manufacturer’s electronic pressure calibrators
  • Truly portable pneumatic source to 3000 psi
  • Nitrogen source for use at the job site

Specifications

Storage Temperature:
0°F to 185°F (-17.8°C to 85°C)Pressure Media:
Clean dry gaseous nitrogen or equalPressure Regulator:
3000 psig, single stage, self venting, non-bleed

Pressure Gauges:
(2) Two-inch diameter, 0-4000 psig

Rupture Disc:
3200 psig nominal, stainless steel outer case

 Pressure Filter:
20 micron nominal, field replaceableControl Valves:
Orion 2C, micro-metering valve, replaceable soft seat, aluminum and stainless steelPiping:
All stainless steel, seamless

Test Ports:
(2) Two, 5000 psig rated 3000 psig operating, 300 series stainless steel

 Pressure Fittings:
Input fitting: 1/4 in. 37° female AN swivel on one end and 1/8 in. NPT male on other, to go to customer input hose
Output test ports: stainless steel quick-disconnect on one end and 1/4 in. NPT female on other, to go to customer output hoseCase:
All aluminum case with latched cover and handleWeight:
25 lb (9.07 kg)

Options

63258 LIT,Manual PIN7000 PIN7010 Operating
58478 Pressure Trap,UPC5200 All Ranges, PIN7000 PIN7010 PIN8000 PIN8010 All, UPS3110 and DLR3110 Ranges 5000 PSI and Above Operation
55542 Fitting Kit,Test Port Standard quick-disconnect test port (output) fitting SST male plug on one end and 7/16-20 37 DEG AN-4 JIC male on opposite end w/ internal 40 micron filter, 11000 PSI working pressure, Requires, included, one Cheat Seal 54854 for UPC5200 UPC5210 PIN7000 PIN7010 PIN8000 PIN8010 UPS3110 DLR3110
151017 Fitting Kit, Output Port Quick Disconnect Fitting Male Coupling Body, other end 1/4-18 NPT Female SST with 40 Micron Filter, 11000 PSI Working Pressure, for PIN8000 PIN8010 UPC5200 UPC5210 PIN7000 PIN7010 UPS3110 DLR3110 – NOTE: May be used to connect DPDG Gauge to Output Port.
55280 Hose Kit,Test Port Output UPC5200, PIN7000, PIN8000 5 Foot Long with Quick Disconnect SST Plug on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End, 3/16 in Hose ID, 10,000 PSI (690 BAR) Working Pressure
131096 Hose Kit,Test Port Output 10 ft. test hose for UPC5200, UPS3110, DLR3110, PIN7000 & PIN8000 (5000 psi and above) Quick Disconnect SST Plug on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End
78939 Hose ASSY,Pneumatic 5 ft Fill Port One End of Hose 7/16-20 JIC 37 Degree Female AN-4 Swivel Other End CGA-580 Type Nipple for Source 3000 65315 or 98917 or 131385
55366 Hose Kit,Fill Port Input UPC5200 10 Foot Long with CGA-580 Male Nipple on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End
55369 Hose Kit,Fill Port Input UPC5200 15 Foot Long with CGA-580 Male Nipple on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End
162561 Hose Assy,Pneumatic 20 ft Fill Port One End of Hose 7/16-20 JIC 37 Degree Female AN-4 Swivel Other End CGA-580 Type Nipple, for Source 3000 PNs 65315, 98917, 131385
159683 Fitting, Quick-Disconnect Test Port adjustable adapter assembly, Finger Tighten 1/4 NPT Female to 7/16-20, 37 Degree AN-4 Swivel other end, Working Pressure 5000 PSI, for hands-free display viewing when used between PIN8000 Test Port 55542 and Device with 1/4 NPT Male, Requires (included) One Cheat Seal 54854
120462 Fitting, Quick-Disconnect Test Port adjustable adapter assembly, Finger Tighten 1/8 NPT Male to 1/4-37 Deg AN-4 Female other end, 5000 PSI, Temp Range 40 Deg F to 200 Deg F, for hands-free display reading when used between Orion 2C Cased Unit Test Port or PIN8000 Quick-Connect 55542 and Hand-Held or Digital Gauge with 1/8 NPT Female thread, requires (included) one Cheat Seal 54854
150613 Hose ASSY, Pneumatic 5 ft 0-3000 PSI Working Pressure CGA-580 Type Male Nipple Both Ends Used For Filling External Pressure Cylinder PN 59533 – UPC5200, PIN7000, PIN8000
