SRC Electronic Concrete Deck Truck Scales

$0.00

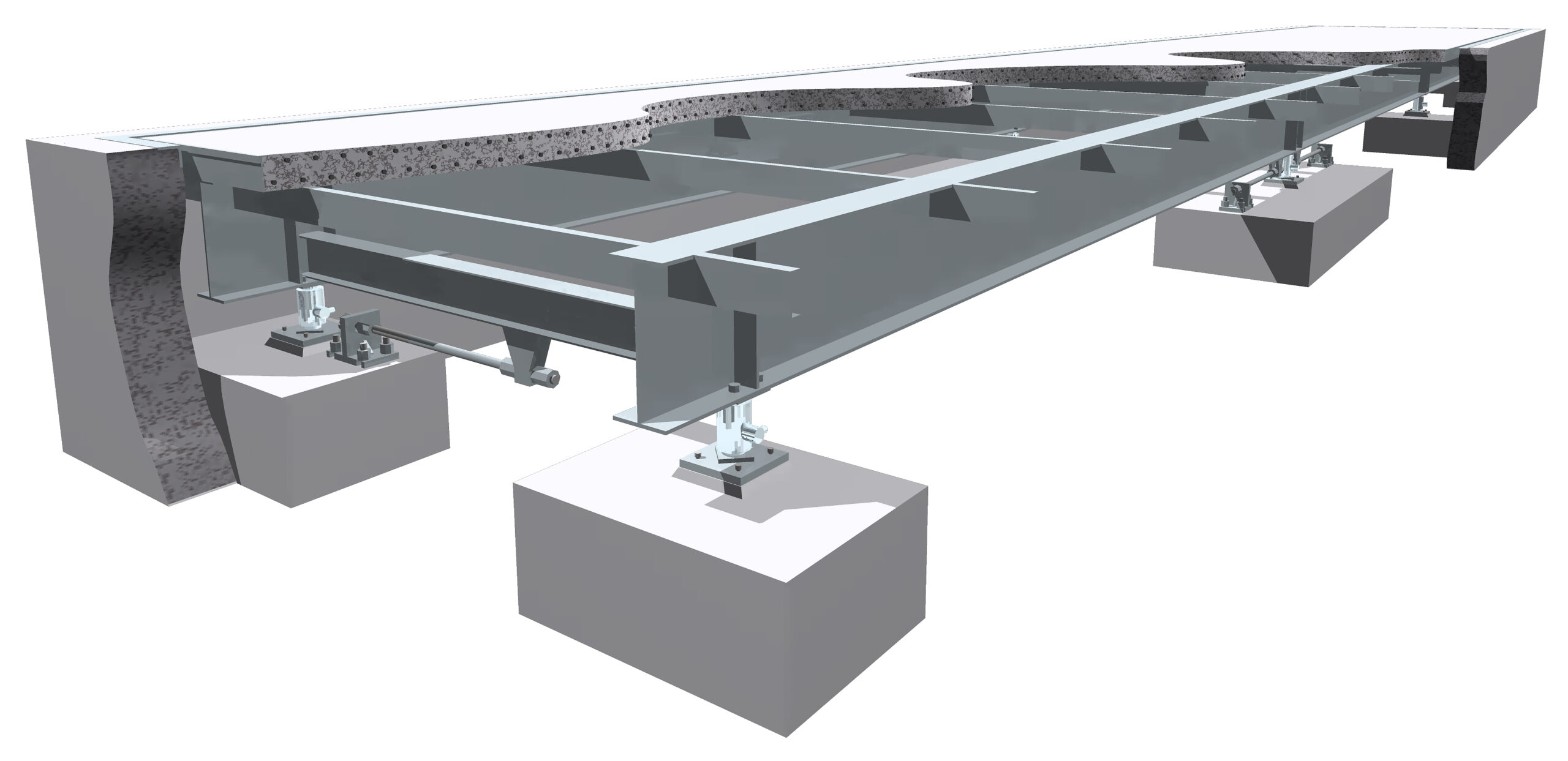

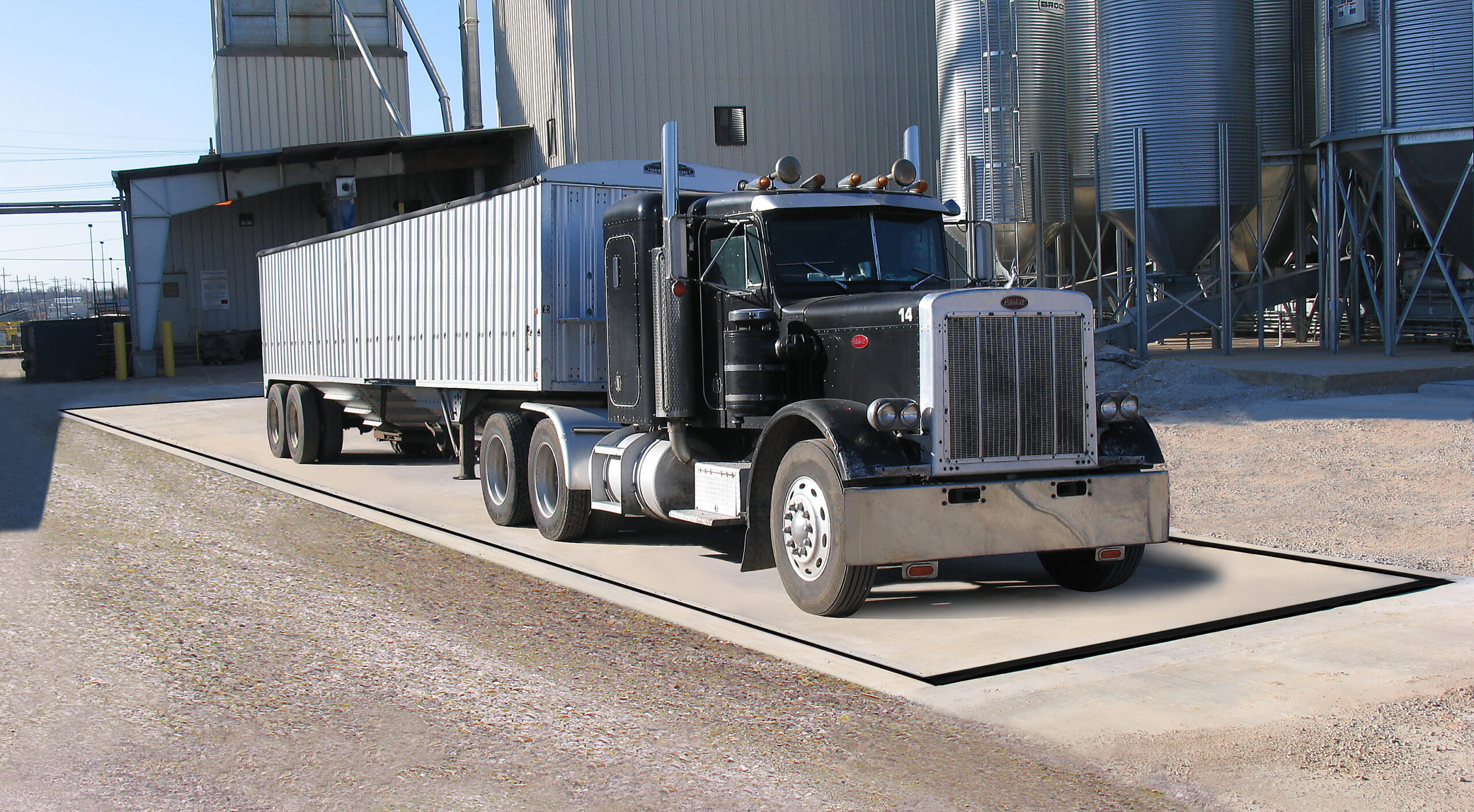

Cardinal Scale’s SRC series concrete deck truck scales features a heavy-duty, classic, time-tested pit scale design to allow vehicles to roll directly onto the scale at ground level. Featuring a heavy-duty, pour-in-place concrete deck, this pit-mounted scale features a rigid, highly-rated CLC deck that provides easy access to all scale components. This easy access eliminates issues with accessing the scale and takes up little space when saving needed operating area is tantamount. The SRC is available with your choice of either SCBD digital double-ended shear beam load cells or AC series electronic compression type load cells. NTEP and Measurement Canada legal for trade.

Download product PDF
Category:

Features

  • Available with AC Compression Load Cells or SCBD Digital Double-Ended Shear Beam Load Cells
  • Models Available as Multi-Platform Vehicle Scales
  • NTEP and Measurement Canada Legal for Trade
  • Axle or Full-Length Truck Platform Sizes Available
  • Stainless Steel, Environmentally-Sealed Load Cells
  • Anti-Corrosion Industrial Tan Powdercoat Paint
  • Designed for Pit Foundations

Specifications

Concentrated Load Capacity: 30, 45, or 100 tons
Overall Capacities: Ranging from 30 tons to 120 tons
Platform Sizes: Ranging from 10 ft to 100 ft in length, 10 ft standard width
Load Cell: Electronic compression load cells or digital double-ended shear beam load cells
Warranty: 5 year deck and below limited warranty
Foundation Kit: Included
Junction Box: Stainless steel, weatherproof-grade
Deck: 16-inch I-beam construction

Models

1030100 Truck Scale, SRC, 5″ Concrete Deck, 10′ X 10′, 30 ton CLC, 30 Ton Capacity, AC Load Cells Call For Pricing
1030101 Truck Scale, SRC, 6″ Concrete Deck, 12′ X 10′, 30 ton CLC, 30 Ton Capacity, AC Load Cells Call For Pricing
1030102 Truck Scale, SRC, 6″ Concrete Deck, 24′ X 10′, 30 ton CLC, 30 Ton Capacity, AC Load Cells Call For Pricing
1030103 Truck Scale, SRC, 6″ Concrete Deck, 34′ X 10′, 30 ton CLC, 50 Ton Capacity, AC Load Cells Call For Pricing
1030104 Truck Scale, SRC, 6″ Concrete Deck, 40′ X 10′, 30 ton CLC, 50 Ton Capacity, AC Load Cells Call For Pricing
1030105 Truck Scale, SRC, 6″ Concrete Deck, 50′ X 10′, 30 ton CLC, 60 Ton Capacity, AC Load Cells Call For Pricing
1030106 Truck Scale, SRC, 6″ Concrete Deck, 60′ X 10′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1030107 Truck Scale, SRC, 6″ Concrete Deck, 70′ X 10′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1030108 Truck Scale, SRC, 6″ Concrete Deck, 80′ X 10′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1030109 Truck Scale, SRC, 6″ Concrete Deck, 100′ X 10′, 30 ton CLC, 100 Ton Capacity, AC Load Cells Call For Pricing
1030206 Truck Scale, SRC, 6″ Concrete Deck, 60′ X 10′, 45 ton CLC, 120 Ton Capacity, AC Load Cells Call For Pricing
1030207 Truck Scale, SRC, 6″ Concrete Deck, 70′ X 10′, 45 ton CLC, 120 Ton Capacity, AC Load Cells Call For Pricing
1030208 Truck Scale, SRC, 6″ Concrete Deck, 80′ X 10′, 45 ton CLC, 120 Ton Capacity, AC Load Cells Call For Pricing
1030209 Truck Scale, SRC, 6″ Concrete Deck, 100′ X 10′, 45 ton CLC, 120 Ton Capacity, AC Load Cells Call For Pricing
1030300 Truck Scale, SRC, 5″ Concrete Deck, 10′ X 10′, 30 ton CLC, 30 Ton Capacity, SCBD Smart Cells Call For Pricing
1030301 Truck Scale, SRC, 6″ Concrete Deck, 12′ X 10′, 30 ton CLC, 30 Ton Capacity, SCBD Smart Cells Call For Pricing
1030302 Truck Scale, SRC, 6″ Concrete Deck, 24′ X 10′, 30 ton CLC, 30 Ton Capacity, SCBD Smart Cells Call For Pricing
1030303 Truck Scale, SRC, 6″ Concrete Deck, 34′ X 10′, 30 ton CLC, 50 Ton Capacity, SCBD Smart Cells Call For Pricing
1030304 Truck Scale, SRC, 6″ Concrete Deck, 40′ X 10′, 30 ton CLC, 50 Ton Capacity, SCBD Smart Cells Call For Pricing
1030305 Truck Scale, SRC, 6″ Concrete Deck, 50′ X 10′, 30 ton CLC, 60 Ton Capacity, SCBD Smart Cells Call For Pricing
1030306 Truck Scale, SRC, 6″ Concrete Deck, 60′ X 10′, 30 Ton CLC, 100 Ton Capacity, SCBD Smart Cells Call For Pricing
1030307 Truck Scale, SRC, 6″ Concrete Deck, 70′ X 10′, 30 ton CLC, 100 Ton Capacity, SCBD Smart Cells Call For Pricing
1030308 Truck Scale, SRC, 6″ Concrete Deck, 80′ X 10′, 30 ton CLC, 100 Ton Capacity, SCBD Smart Cells Call For Pricing
1030309 Truck Scale, SRC, 6″ Concrete Deck, 100′ X 10′, 30 ton CLC, 100 Ton Capacity, SCBD Smart Cells Call For Pricing
1030406 Truck Scale, SRC, 6″ Concrete Deck, 60′ X 10′, 45 ton CLC, 120 Ton Capacity, SCBD Smart Cells Call For Pricing
1030407 Truck Scale, SRC, 6″ Concrete Deck, 70′ X 10′, 45 ton CLC, 120 Ton Capacity, SCBD Smart Cells Call For Pricing
1030408 Truck Scale, SRC, 6″ Concrete Deck, 80′ X 10′, 45 ton CLC, 120 Ton Capacity, SCBD Smart Cells Call For Pricing
1030409 Truck Scale, SRC, 6″ Concrete Deck, 100′ X 10′, 45 ton CLC, 120 Ton Capacity, SCBD Smart Cells Call For Pricing
1030700 Truck Scale, SRC, 6″ Concrete Deck, 10′ / 20′ / 40′ X 10′, 45T CLC, 120T Cap., AC Load Cells Call For Pricing
1030701 Truck Scale, SRC, 6″ Concrete Deck, 15′ / 15′ / 50′ X 10′, 45T CLC, 120Ton Cap., AC Load Cells Call For Pricing
1030702 Truck Scale, SRC, 6″ Concrete Deck, 20′ / 20′ / 40′ X 10′, 45T CLC, 120Ton Cap., AC Load Cells Call For Pricing
