SRL Pit Series

$0.00

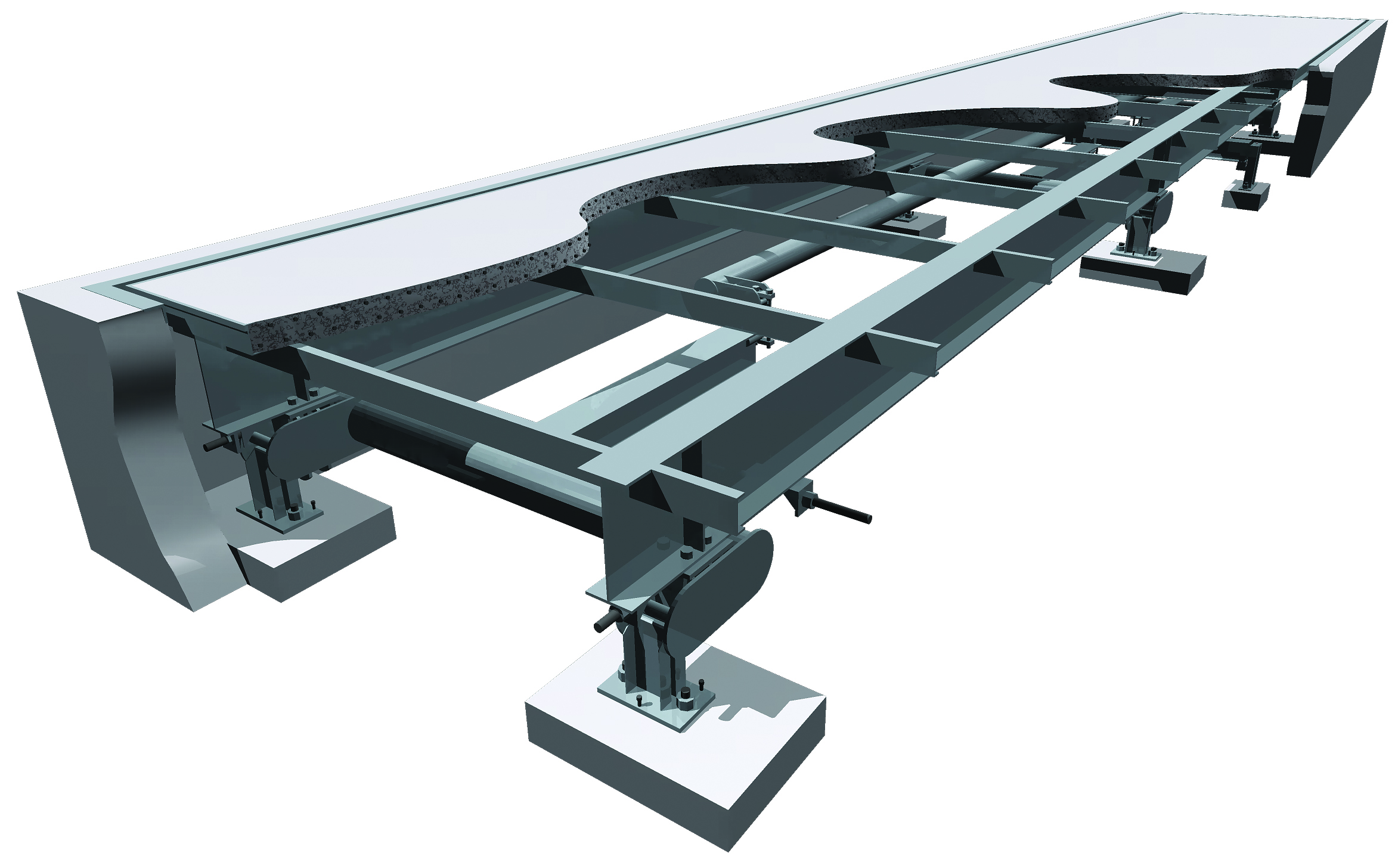

Cardinal’s SRL series are heavy-duty welded steel truck scales that are still considered the benchmark in truck scale concepts. Thousands of installations over the past 60 years are testimony to their superior quality and long-term accuracy. Cardinal Scale has continued to improve their design: only 4 main levers with 1 transverse lever on the four section models and 2 main levers with 1 transverse lever on the two section models. These ruggedly-designed axle load and full-length truck scales are permanently installed in a pit and utilize the unique features of Cardinal’s truck scales, assuring a lifetime of dependable service. NTEP legal-for-trade certified.

Download product PDF
Category:

Features

  • Axle Scales or Full Truck Length Platforms
  • Double Link Suspension
  • Exclusive CON-LOCK Concrete Decks
  • Heavy-Duty Structural Steel Tubing
  • NTEP Legal for Trade
  • Pit Installation for Easier Truck Loading

Specifications

Scale Width: 10 ft
CLC: 30, 45 or 60 tons
NTEP Approval: 88-012

Models

3010ASRL Truck Scale, Electro-Mechanical, 10′ x 10′, 30 Ton Capacity, Concrete deck Call For Pricing
3012ASRL Truck Scale, Electro-Mechanical, 12′ x 10′, 30 Ton Capacity, Concrete deck Call For Pricing
3014ASRL Truck Scale, Electro-Mechanical, 14′ x 10′, 30 Ton Capacity, Concrete deck Call For Pricing
3024SRL Truck Scale, Electro-Mechanical, 24′ x 10′, 30 Ton Capacity, Concrete deck Call For Pricing
5040SRL Truck Scale, Electro-Mechanical, 40′ x 10′, 50 Ton Capacity, Concrete deck Call For Pricing
6050SRL Truck Scale, Electro-Mechanical, 50′ x 10′, 60 Ton Capacity, Concrete deck Call For Pricing
6060SRL Truck Scale, Electro-Mechanical, 60′ x 10′, 60 Ton Capacity, Concrete deck Call For Pricing
6070SRL Truck Scale, Electro-Mechanical, 70′ x 10′, 60 Ton Capacity, Concrete deck Call For Pricing
6080SRL Truck Scale, Electro-Mechanical, 80′ x 10′, 60 Ton Capacity, Concrete deck Call For Pricing
8050SRL Truck Scale, Electro-Mechanical, 50′ x 10′, 80 Ton Capacity, Concrete deck Call For Pricing
8060SRL Truck Scale, Electro-Mechanical, 60′ x 10′, 80 Ton Capacity, Concrete deck Call For Pricing
8070SRL Truck Scale, Electro-Mechanical, 70′ x 10′, 80 Ton Capacity, Concrete deck Call For Pricing
8080SRL Truck Scale, Electro-Mechanical, 80′ x 10′, 80 Ton Capacity, Concrete deck Call For Pricing
10060SRL Truck Scale, Electro-Mechanical, 60′ x 10′, 100 Ton Capacity, Concrete deck Call For Pricing
10070SRL Truck Scale, Electro-Mechanical, 70′ x 10′, 100 Ton Capacity, Concrete deck Call For Pricing
10080SRL Truck Scale, Electro-Mechanical, 80′ x 10′, 100 Ton Capacity, Concrete deck Call For Pricing
10090SRL Truck Scale, Electro-Mechanical, 90′ x 10′, 100 Ton Capacity, Concrete deck Call For Pricing
100100SRL Truck Scale, Electro-Mechanical, 100′ x 10′, 100 Ton Capacity, Concrete deck Call For Pricing
