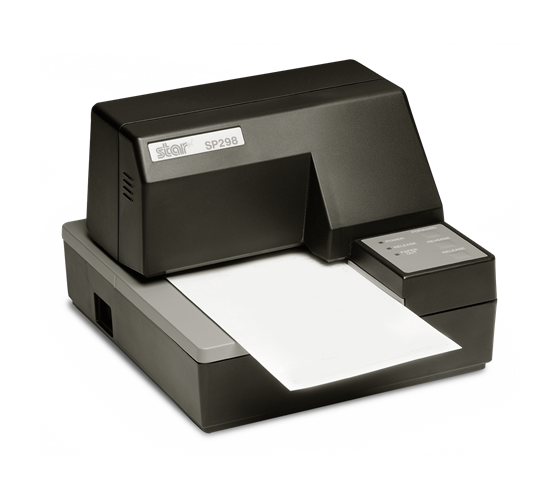

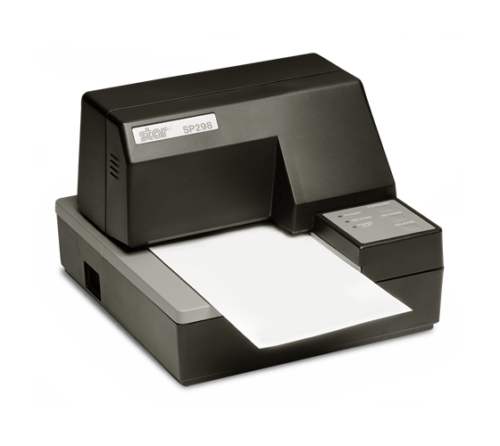

Star Micronics SP298 Ticket Printer

$0.00

The Star Micronics SP298 ticket printer is a sound and economical choice for simple ticket printing needs.

Download product PDF
Category:

Features

  • Top and bottom paper sensing
  • AutoSide Loading? for quick and easy document loading
  • Bidirectional serial impact printer capable of printing graphics using a highly reliable nine-pin printhead
  • Up to 3.1 lines per second printing with bidirectional check mode
  • Epson TM-U295/TM290 compatible with same size footprint and interchangeable power supply, easier paper and ribbon loading
  • Single or up to three-part multi-copy ticket printing
  • Cash drawer driver

Specifications

Print Speed:?
3.1 lines per second (13 mm/sec)

Print Width:
2.5 in (63 mm)

Line Spacing:
1/6 in, N/144 in Star line mode, 1-60 in-ESC/POS? mode

Print Head:
Nine-Pin

Number Of Columns:
42

Print Direction:
Bidirectional

Paper Width:
3.15 in to 7.17 in (80 mm to 182 mm)

Paper Thickness:
0.004 in to 0.008 in (0.09 mm to 0.2 mm)

Copy Capabilities:
1 original and 2?copies

Paper Sensors:
Top and bottom of form

Ribbon:
Cassette-type purple ribbon. Ribbon life is approximately 2.2 million characters (continuous print)

Printer Reliability:
9 million lines MCBF (CRT)

Print Head Reliability:
70 million characters

Interface:
RS-232 serial interface

Data Buffer:
Star mode: 2KB or 35 bytes ESC/POS mode: 512 bytes or 35 bytes

Emulation:
Star mode, ESC/POS? (TM-U295/TM290)

Drawer Kickout Device Funcition:
2 drivers

Drivers:
Windows 95/98/2000/NT 4.0, OPOS, JavaPOS?

Operating Temperature:
41? F to 104? F (5? C to 40? C)

Humidity:
10% to 80% RH

Overall Dimensions:
(W x H x D): 7.09 x 7.48 x 7.48 in
(180 x 138 x 190 mm)

Approvals:
UL and C-UL listed, TUV

Warranty:
Three-year limited warranty on parts
One-year limited warranty on print head

Options

Part #69921 Product DescriptionRibbon CRTG,RC200P Purple Star SP200, SP298, SP2520, SP2320, SP500, SP512
Part #69903 Product DescriptionPower Supply,Star SP298 SP500, TSP743, TSP654, TUP592, NP-2511, NP-3511 Star PS60-24A 24VDC Universal For All Star Printers Except DP8340
Part #72309 Product DescriptionPower Supply,Star 12VDC Vehicle Cigarette Lighter Plug 12VDC Input and Star Compatible Connector 24VDC Output
Part #72471 Product DescriptionCD,Star Printer Programmers Manuals, Software Utilities, Printer Drivers ?

Models

Part #?69901 Product DescriptionPrinter,Ticket SP298 RS232 Printer w/Power Supply
Part #?69902 Product DescriptionPrinter,Ticket SP298 RS232 Printer Star w/No Power Supply
