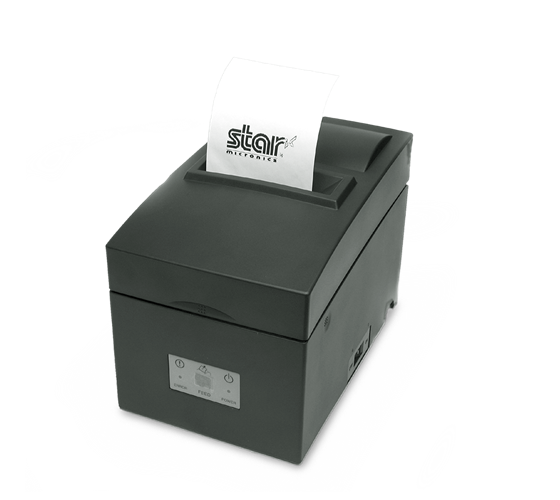

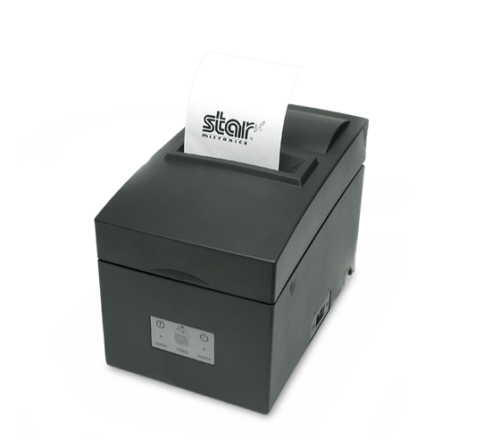

Star SP512/SP542/SP712/SP742 Dot Matrix Printers

$0.00

Star SP512/SP542/SP712/SP742 dot matrix printers have a spill-proof cover, single-cover highlights and the ability to print multiple copies.

Download product PDF
Category:

Features

  • Spill-proof cover
  • Single-color highlights
  • Power switch cover
  • Internal universal power supply
  • Serial interface
  • Star and?ESC/POS emulation
  • Black mark sensor
  • More than four lines per second print speed
  • Auto cutter and tear bar versions
  • Prints multiple copies (original and two copies)
  • High reliability
  • Prints graphicsSP712 Only
    • Clamshell design for easy paper loading
    • Spill-proof and heat-resistant
    • Swappable interfaces available
    • Wall mount (option)
    • External buzzer option

Specifications

Print Method:
Nine-pin impact dot matrix

Print Speed:
4 lines per second at 40 columns
8 lines per second at 16 columns

Number Of Columns:
42 at 16.9 cpi

Paper Width:
2.25 in/3 in (selectable)

Paper Thickness:
0.002 in to 0.003 in (0.07 to 0.10 mm)

Copy Capabilities:
Copies: original and 2?copies, maximum 0.007 in (0.20 mm)

Roll Diameter:
3.34 in (85 mm)

Paper Roll Core:
0.47 in (12 mm) ID, 0.70 in (18 mm) OD

Paper Loading:
Semi-automatic

Paper Sensors:
Paper out

Cutter Reliability:
0.5 million cuts

Printer Reliability:
70 million characters

Auto Cutter:
SP542: full and partial cut (software controlled)

Interface:
RS-232 serial

Baud Rates:
4800, 9600, 19200, 38400

Drivers:
Windows 9x/NT/2000, OPOS, JavaPOS?

Emulation:
Star Mode, ESC/POS?

Cash Drawer:
2 drivers

Power Required:
100 to 240 VAC, 50/60 Hz

Overall Dimensions:
(W x D x H): 5.51 x 8.85 x 6.41 in
(140 x 225 x 163 mm)

Storage Temperature:
10% to 90% RH

Operating Temperature:
3? F to 104? F (0? C to 40? C)

Approvals:
UL and C-UL listed, TUV

Warranty:
Three-year limited warranty on parts
One-year limited warranty on print head and cutter

Print Method:
Nine-pin impact dot matrix

Print Speed:
13 RPM

Paper Width:
70 mm and 58 mm (with paper guide)

Emulation:
Star mode, ESC/POS

Power:
110 to 230 VAC

MCBF:
22 million lines

Cutter:
1 million cuts

Dimensions:
(W x H x D): 160 x 152 x 245 mm

Connectivity:
Nine-pin serial, 25-pin serial, parallel, USB, Ethernet, Wi-Fi

Drivers:
2000 XP (L), XP embedded (L), VISTA (G) (32-and 64-bit)

Warranty:
Three-year limited warranty

Options

Part #69921 Product DescriptionRibbon CRTG,RC200P Purple Star SP200, SP298, SP2520, SP2320, SP500, SP512
Part #103728 Product DescriptionRibbon CRTG,Black, SP700 Star SP712, SP742
Part #69916 Product DescriptionPaper Roll,3 Inch Wide 150ft Long 1 Ply White Bond 1/2 in Core 3 in OD
Part #69915 Product DescriptionPaper Roll,3 Inch Wide 90ft Long, 2 Ply White/Canary 1/2 In Core 3 In OD Star Epson
Part #72471 Product DescriptionCD,Star Printer Programmers Manuals, Software Utilities, Printer Drivers
Part #121331 Product DescriptionBracket,Wall Mt SP700 Series, SP712 & SP742

Models

Part #?103141 Product DescriptionPrinter,Tape SP712MD SP700 Model, Tear Bar, RS232, 110 to 230 VAC Internal Power Supply, US Cord
Part #?155825 Product DescriptionPrinter,Tape SP712MD R SP700 Model, Tear Bar, RS232, 110 to 230 VAC Internal Power US Cord, Journal
Part #?164392 Product DescriptionPrinter,Tape SP712MU USB SP700 Model, Tear Bar, USB, 110/230 VAC Internal Power Supply, US Cord
Part #?103142 Product DescriptionPrinter,Tape SP742MD SP700 Model, Cutter, RS232, 110 to 230 VAC Internal Power Supply, US Cord
