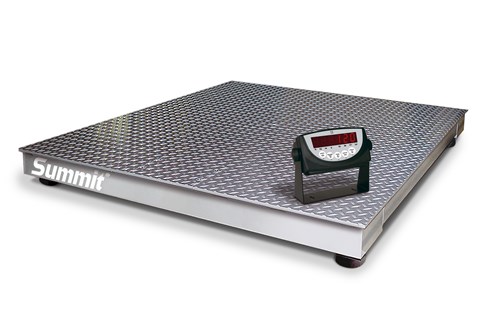

Our Summit 3000 floor scale and indicator package is an economical choice for many industrial weighing tasks, with a durable low-profile deck that fits well into many material handling environments. This Legal for Trade scale comes with our easy-to-use and straightforward model 120 digital weight display and 20 feet of load cell cable.
Package includes: Summit 3000 4 ft × 4 ft × 3.625 in floor scale, 20 ft of EL147 load cell cable with quick disconnect, and 120 indicator
Package configured and factory calibrated for 5,000 divisions
Scale
Four NTEP Certified alloy steel, shear beam load cells
Top-access junction box
Rugged diamond safety treadplate steel deck
Four adjustable rigid polyurethane rubber feet, 3 in (76 mm) diameter
Signal trim summing board housed in ABS enclosure
Threaded eyebolt hole (1/2–20NF) located in the center of the deck for easy lifting
Indicator
Large 0.8 in backlit LCD display
Five-button operation
Full front panel digital calibration and configuration
Specifications
End Load Capacity: 100% full scale at 5,000 lb
80% full scale at 10,000 lb
Cable Length: 20 ft (6.1 m) for connecting junction box to indicator
Threaded Eyebolt: Hole (1/2-20 NF) located in center of deck for easy lifting
Warranty (limited): Weldment and load cells two-years
All other components one-year
Approvals: NTEP CC 92-001, Class III 5,000 d
Measurement Canada AM-5530, Class III 5,000 d (2,500 kg, 5,000 kg)
Power:
Line voltages: 115 or 230 VAC
Frequency: 50 or 60 Hz
Communication Port:
EDP port: Full duplex RS-232
Printer port: Output-only RS-232 or active 20 mA current loop
Both ports: 9600, 4800, 2400, 1200, 600, 300bps;
Seven or eight data bits; even, odd or no parity
Display: 0.8 in (20 mm), six-digit red LED display, seven-segment digits
Annunciators:
Center of zero, stand still, gross, net, lb, kg, oz, g
Approvals:
NTEP CC 03-059, Class III/IIIL 10,000d
Measurement Canada AM-5517, Class III/IIIHD 10,000d
EU Test Certificate TC7028 (120) Class III, 10,000d
CE marked
