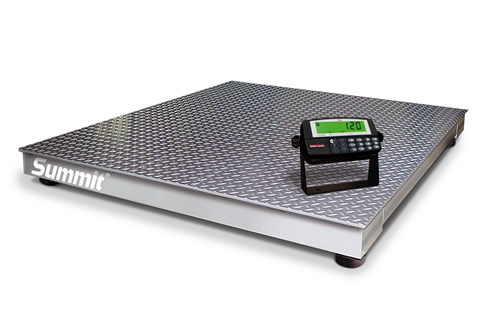

Summit 3000 Floor Scale and 120 Plus Indicator Package
$0.00
Our Summit 3000 floor scale and indicator package is an economical choice for many industrial weighing tasks, with a durable low-profile deck that fits well into many material handling environments. This Legal for Trade scale comes with our easy-to-use and straightforward model 120 digital weight display or optional 120 PLUS digital weight display and 20 feet of load cell cable.
Package includes: Summit 3000 4 ft × 4 ft × 3.625 in floor scale, 20 ft of EL147 load cell cable with quick disconnect, and 120 Plus indicator
Package configured and factory calibrated for 5,000 divisions
Scale
Four NTEP Certified alloy steel, shear-beam load cells
Top-access junction box
Rugged diamond safety treadplate steel deck
Four adjustable rigid polyurethane rubber feet, 3 in (76 mm) diameter
Signal trim summing board housed in ABS enclosure
Threaded eyebolt hole (1/2–20NF) located in the center of the deck for easy lifting
Indicator
Large 0.8 in backlit liquid crystal display (LCD)
115 or 230 VAC wall adapter with rechargeable battery
Specifications
End Load Capacity: 100% full scale at 5,000 lb
80% full scale at 10,000 lb
Cable Length: 20 ft (6.1 m) for connecting junction box to indicator
Threaded Eyebolt: Hole (1/2-20 NF) located in center of deck for easy lifting
Warranty (limited):
Weldment and load cells two-years
All other components one-year
Approvals: NTEP CC 92-001, Class III 5,000 d
Measurement Canada AM-5530, Class III 5,000 d (2,500 kg, 5,000 kg)
Power:
Line voltages: 115 or 230 VAC
Frequency: 50 or 60 Hz
Battery Life:
60 hours with 1 × 350 ohm, 40 hours with 4 × 350 ohm
Charge time: Eight hours
Communication Port:
EDP port: Full duplex RS-232
Printer port: Output-only RS-232 or active 20 mA current loop
Both ports: 9600, 4800, 2400, 1200, 600, 300bps;
Seven or eight data bits; even, odd or no parity
Display: 0.8 in (20 mm) six-digit LCD with backlight, seven-segment digits
