Home / Uncategorized / SURVIVOR® Advantage Series IM-Axle, In-motion Axle Scale
SURVIVOR® Advantage Series IM-Axle, In-motion Axle Scale $ 0.00
Simplify Inventory Tracking
Keep trucks moving with an in-motion axle scale to ensure load compliance and streamline inventory tracking. The IM-Axle in-motion axle scale is a non-Legal for Trade solution for inventory tracking in a variety of industries from agriculture to forestry and everything in between.

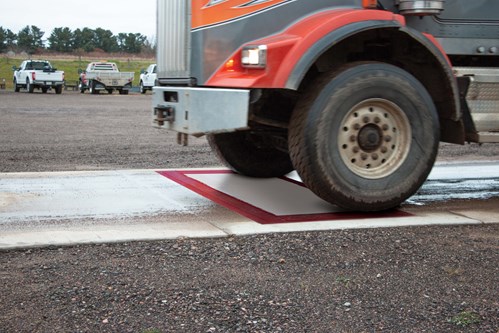

Trucks drive over the in-motion axle scale at up to 4 mph, and axle weights are captured and totalized with 1% total error.
The IM-Axle System

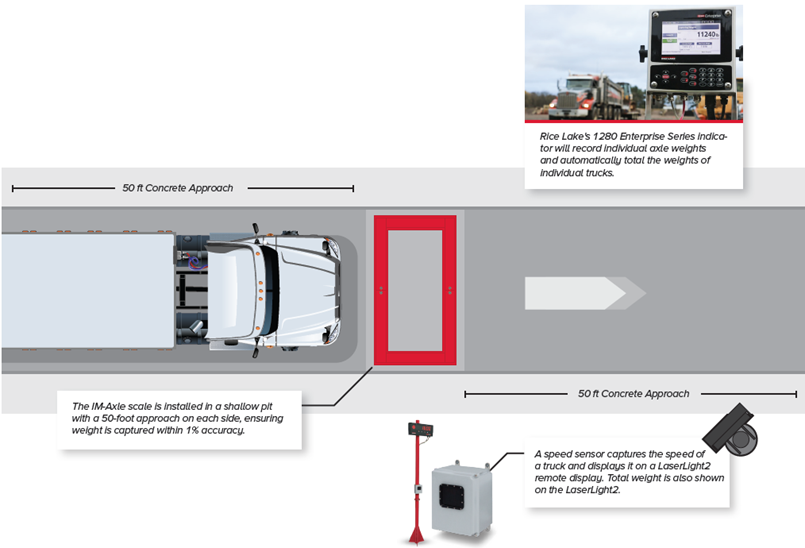

The IM-Axle scale’s weighbridge is 120 inches wide and 30 inches long, constructed with SURVIVOR durability for reliable performance in the most demanding conditions. The weighbridge is installed in a shallow pit with a 50-foot approach on each side and a speed sensor to help ensure weight is captured to the greatest accuracy.
The weighbridge is paired with the 1280 Enterprise™ Series indicator with software designed specifically for in-motion axle weighing. This program will record individual axle weights and automatically total the weights for individual truck IDs. Weights are then displayed on a LaserLight2 remote display for clear communication to drivers. An optional printer can be installed to print tickets.
Download product PDF
Features
Weigh vehicles in motion up to 4 mph
Complete system composed of a weighbridge, 1280 Enterprise weight indicator with in-motion software, speed sensor and LaserLight2™ remote display
Software records axle weights and gross weight per truck ID
Concrete deck
11.2 in profile, pit mounted
Specifications
Size:
120 × 30 × 11.25 in
Estimated Weight:
2,850 lb (without concrete deck)
Load Cells:
Flintec RC3 Stainless Steel, Rocker Column, 22.5 t load rating
Accuracy:
< 1% error at 4 mph
Full Scale Capacity:
70,000 lb
Warranty:
2 years
Options
179525
Display,LaserLight2,cUL Stop-Go, cUL Marked, 4 inch LED, 115/230VAC, Painted Enclosure With Flange Mount
209396
1280 Enterprise Indicator, universal enclosure with in-motion software
201182
In-motion axle scale weighbridge
201449
Pit frame support beam (2 required)
207129
Speed sensor
