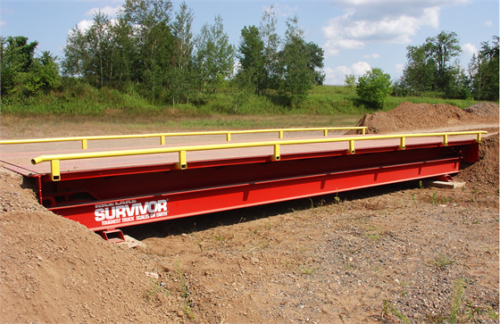

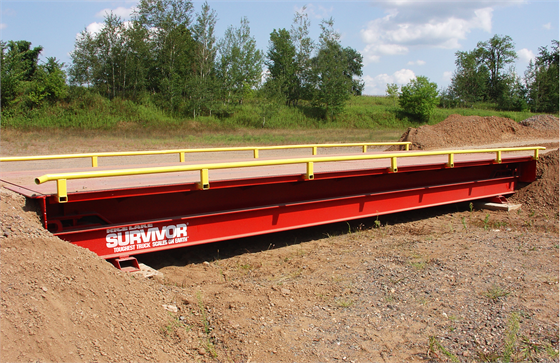

Survivor ATV-M Truck Scale

$0.00

SURVIVOR M-Series scales combine groundbreaking ease of customization with the proven durability that only mechanical scales deliver. In a market crowded with scales built to compete on price alone, SURVIVOR M-Series scales are designed and built to compete by value and performance under the most extreme conditions.

Download product PDF
Category:

Features

  • Above-ground or in-pit foundation
  • Factory-assembled, self-contained modules
  • Individual module lengths from 10ft to 40ft
  • Multiple modules create desired scale length
  • Standard levers – 32.5ton sectional rating
  • Standard height – 30in
  • NTEP Certified 05-018
  • Standard deck – 3/8in thick diamond safety treadplate
  • Standard widths from 10ft to 14ft
  • Capacities to 400,000lb

Specifications

  • Full Scale Capacity: Standard 60,000 lb to 200,000 lb. Custom up to 400,000 lb.
  • <strong Concentrated Load Capacity (CLC):y: Standard 50,000 lb to 70,000 lb; Custom up to 100,000 lb
  • Approvals: NTEP Certified per H-44, Class IIIL, 05-018 Measurement Canada AM-5598
  • Warranty: One-year warranty on pivots, bearings, suspension, and mounting parts of the corner assemblies. Two-year weighbridge

Options

  • Side pipe rails
  • Steel bulkheads
  • Conversion s-beam load cell(s)
  • Load cell mounting hardware
  • Indicator
  • Printer
  • Other peripheral equipment
