Survivor ATV Truck Scale

$0.00

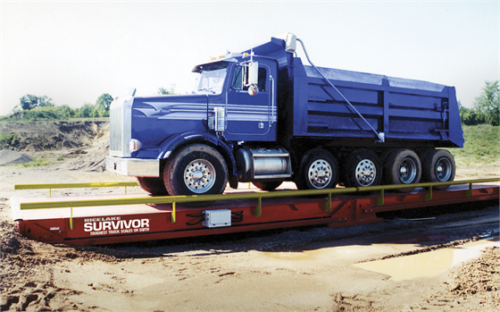

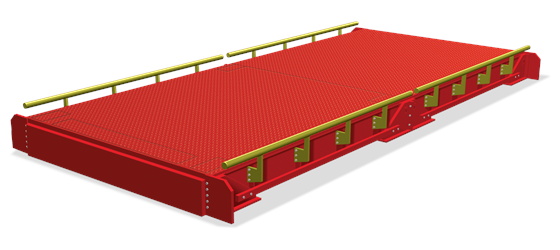

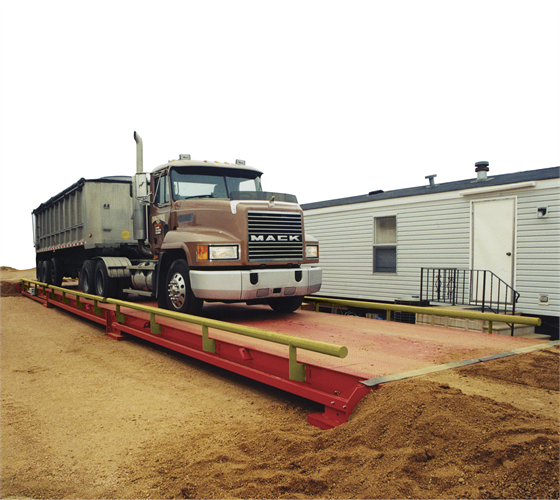

The SURVIVOR ATV portable truck scale brings heavy-capacity weighing to non-permanent sites. The low profile, compact weighbridge is robust, constantly standing up to tough demands of temporary aggregate mining, construction or timber operations. With a steel deck welded to twelve 12-inch, wide flange, 14-pound structural steel I-beams, the SURVIVOR ATV is constructed with more steel content than competitive models for superior endurance and longevity.

Download product PDF
Categories: , , ,

Features

  • Top access to load cells and junction box
  • 75,000lb load cells and pre-assembled G-Force? mounts
  • NTEP Certified 02-003
  • 100,000lb Concentrated Load Capacity (CLC)
  • 100,000lb Dual Tandem Axle (DTA)
  • Up to 270,000lb full scale capacity
  • Bolt-on backfill ramp bulkheads (removable for concrete approaches)
  • End clean out
  • Three standard widths: 10ft, 11ft and 12ft (available up to 16.5ft, NTEP Certified)

Specifications

  • Load Cells and Mount Assemblies:?75,000 lb capacity; G-Force? patented self-checking mounting system, top access to load cells
  • Full Scale Capacity:?Up to 270,000 lb
  • Concentrated Load Capacity (CLC):?100,000 lb
  • Dual Tandem Axle (DTA):?100,000 lb
  • Approvals:?NTEP Certified per H-44, Class IIIL, 02-003. Measurement Canada AM-5413
  • Warranty:?Five-year or twelve-year limited warranty on the weighbridge. Five-year or twelve-year parts warranty, including lightning protection.

Options

  • Top access to load cells and junction box
  • 75,000lb load cells and pre-assembled G-Force? mounts
  • NTEP Certified 02-003
  • 100,000lb Concentrated Load Capacity (CLC)
  • 100,000lb Dual Tandem Axle (DTA)
  • Up to 270,000lb full scale capacity
  • Bolt-on backfill ramp bulkheads (removable for concrete approaches)
  • End clean out
  • Three standard widths: 10ft, 11ft and 12ft (available up to 16.5ft, NTEP Certified)
