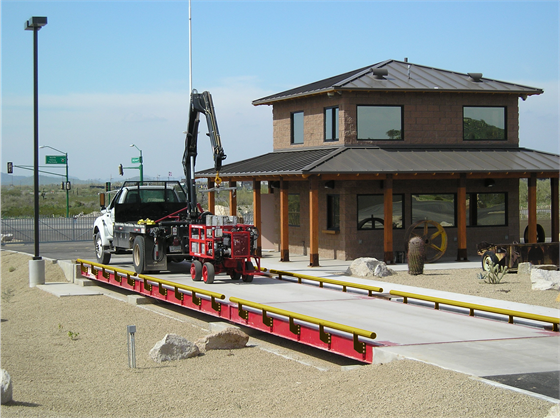

Survivor OTR Concrete Deck Truck Scale

$0.00

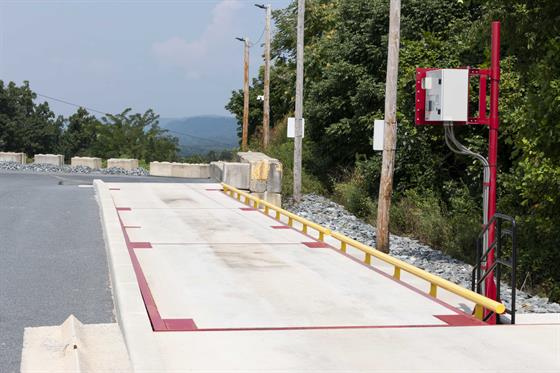

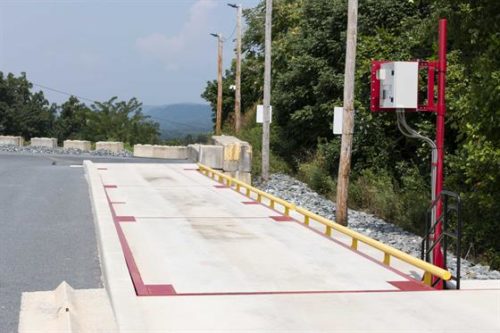

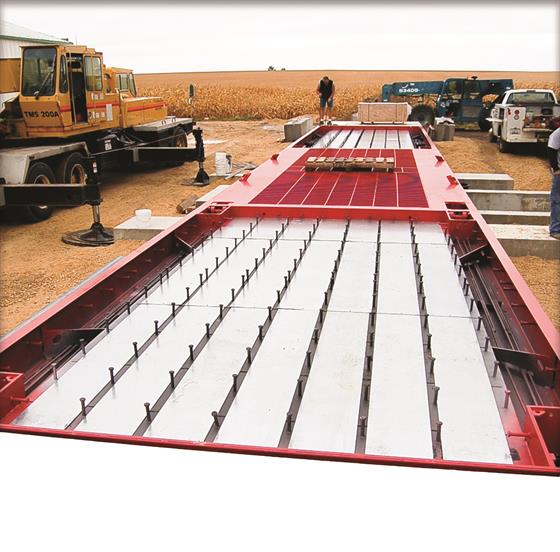

The SURVIVOR OTR Concrete Deck truck scale is well suited for resisting corrosion and rust, and generally requires less maintenance than steel decks, helping to extend the life of the scale. A concrete surface also yields better traction in wet and icy conditions. Because of their design, concrete decks distribute the load over a wider area than steel decks. Concrete decks are poured at the job site and typically have a?cure strength of 4,000 PSI at 28 days. The concrete is reinforced with steel rods and a minimum of two wide-flange main beams and seven wide-flange beams below.

Download product PDF
Category:

Features

  • Top access to load cells and junction box
  • 75,000lb capacity load cells and G-Force? mount assemblies
  • Junction box(es) appropriate for number of load cells utilized
  • NTEP Certified 02-003
  • 100,000lb Concentrated Load Capacity (CLC)
  • 100,000lb Dual Tandem Axle (DTA)
  • Up to 270,000lb full scale capacity
  • 6in thick concrete deck
  • Three standard widths: 10ft, 11ft and 12ft (available up to 16.5ft, NTEP Certified)

Specifications

  • Load Cells and Mount Assemblies:?75,000 lb capacity; G-Force? patented self-checking mounting system, top access to load cells
  • Full Scale Capacity:?Up to 270,000 lb
  • Concentrated Load Capacity (CLC):?100,000 lb
  • Dual Tandem Axle (DTA):?100,000 lb
  • Approvals:?NTEP Certified per H-44, Class IIIL, 02-003. Measurement Canada AM-5413
  • Warranty:?Five-year or twelve-year limited warranty on the weighbridge. Five-year or twelve-year parts warranty, including lightning protection.

Options

  • Up to 16.5ft wide
  • Fit existing foundations
  • 50lb division/400,000lb capacity
  • Custom grain dumps
  • 5lb division for livestock
  • 10lb division for truck/livestock
  • 20lb division
