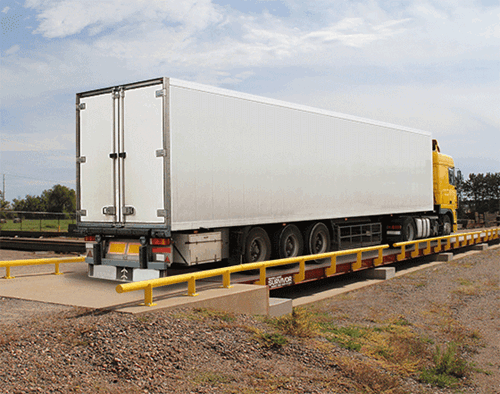

Rice Lake Weighing Systems’ SURVIVOR truck scales utilize up to 25 percent more steel content than competitor’s truck scales. The OTR-LP was designed as a steel deck replacement scale solution with a low profile and easy installation in pre-existing foundations used for non-Rice Lake truck scales.

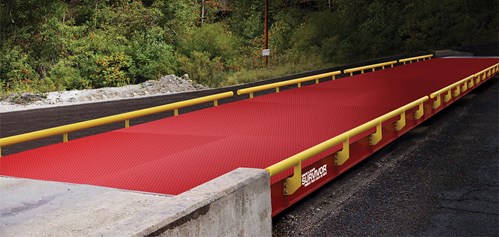

The OTR-LP features a 5/16- or 3/8-inch diamond plate deck and a rugged I-beam construction. Eight-inch, wide-flange beams minimize deflection and prolong the life of the weighbridge. Widths are available in 10 or 11 feet, and the profile ranges from 11 to 16 inches with a three-to-eight inch cleanout.
Boltless, top access to load cells and junction box
Self-seating, P-bracket connection between modules
G-force mount assemblies return the scale to center without check rods or bumper bolts
Cables completely encased in rodent-proof conduit
Thorough finishing process includes cleaning of steel before and after welding, followed by either high solids urethane liquid paint or durable powder paint
Options
Concrete deck
10 lb division for truck or livestock
20 lb division
Schedule 40 guiderails
Schedule 80 guiderails
Manhole
Slotted manhole
Dolly down plate
End cleanout
Stainless steel load cells
Tapered links and radius blocks
Pre-suspended load cells and mounts
Stainless steel suspension hardware
Galvanized weighbridge and suspension hardware
Corrosion-resistant coating
3/8-inch runners
Roll-off
Side deflector plates

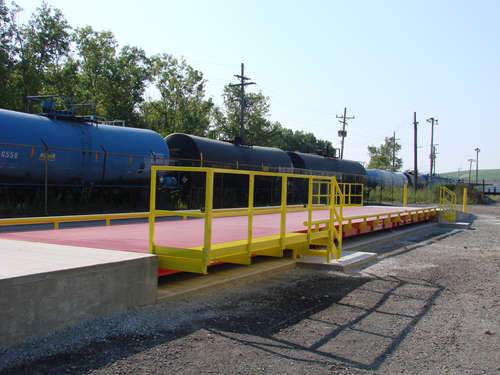

Catwalk

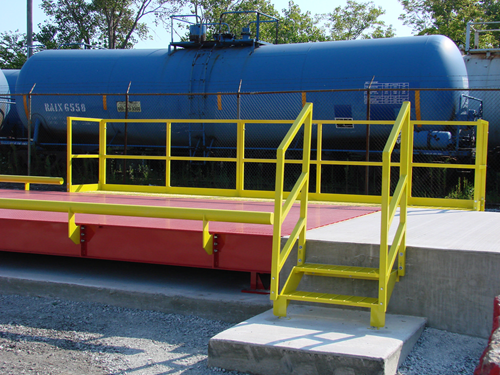

Landing with stairs
iQUBE2® digital diagnostic junction box bundles
Specifications
Load Cells: Rice Lake RL75058-LP alloy steel,
Double-ended beam 75,000 lb capacityMount Assemblies:
G-force self-checking mounting systemJunction Box: JB8SPT Tuffseal® polycarbonate NEMA Type 4X enclosure with overlapping solid cover, stainless steel screws
Platform Size:
10 to 160 ft length
10 ft and 11 ft widthScale Profile:
11 to 16 inDeck Thickness:
8 in
Full Scale Capacity:
Up to 200,000 lb
Concentrated Load Capacity (CLC):
90,000 lbDual Tandem Axle (DTA):
90,000 lbWarranty:
Weighbridge: 5-year or 12-year limited
Parts: 5-year or 12-year limited, including lightning protection
Approvals:
NTEP 02-003, Class IIIL
Measurement Canada AM-5413
